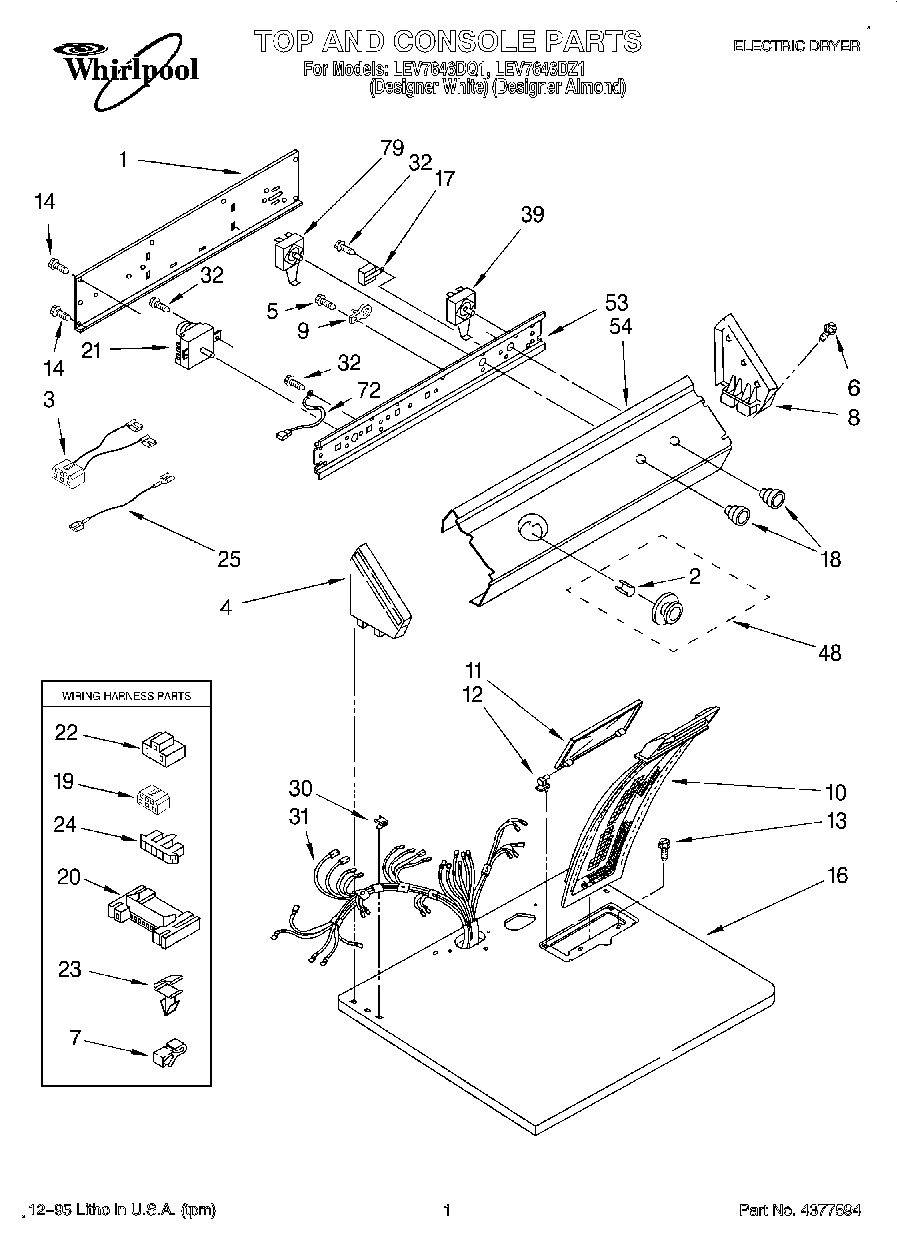

LEV7646DZ1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Dryer
	Label, Wiring Diagram
	Almond (Uncut)
	Instructions, Installation
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	8539893 Whirlpool Wire Harness
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	279872 Whirlpool Resistor
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	3957797 Whirlpool Knob
18	WP3957796 Whirlpool Knob
19	Block, Disconnect
20	3395683 Whirlpool Connector
21	WP3976574 Whirlpool Timer
22	3401144 Whirlpool Connector
23	WP3394427 Whirlpool Clip
24	Connector, Timer
25	Wire, Jumper (Black)
30	WP357213 Whirlpool Hinge Stopper
31	279320 Whirlpool Dryer Rear Terminal Block Kit
31	Harness, Wiring Includes
32	WPW10139210 Whirlpool Screw
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	WPL 3399034
54	WPL 3399033
72	Wire, Ground
79	WP3399639 Whirlpool Switch
