LEW8858HQ1 02 – SECTION

Products

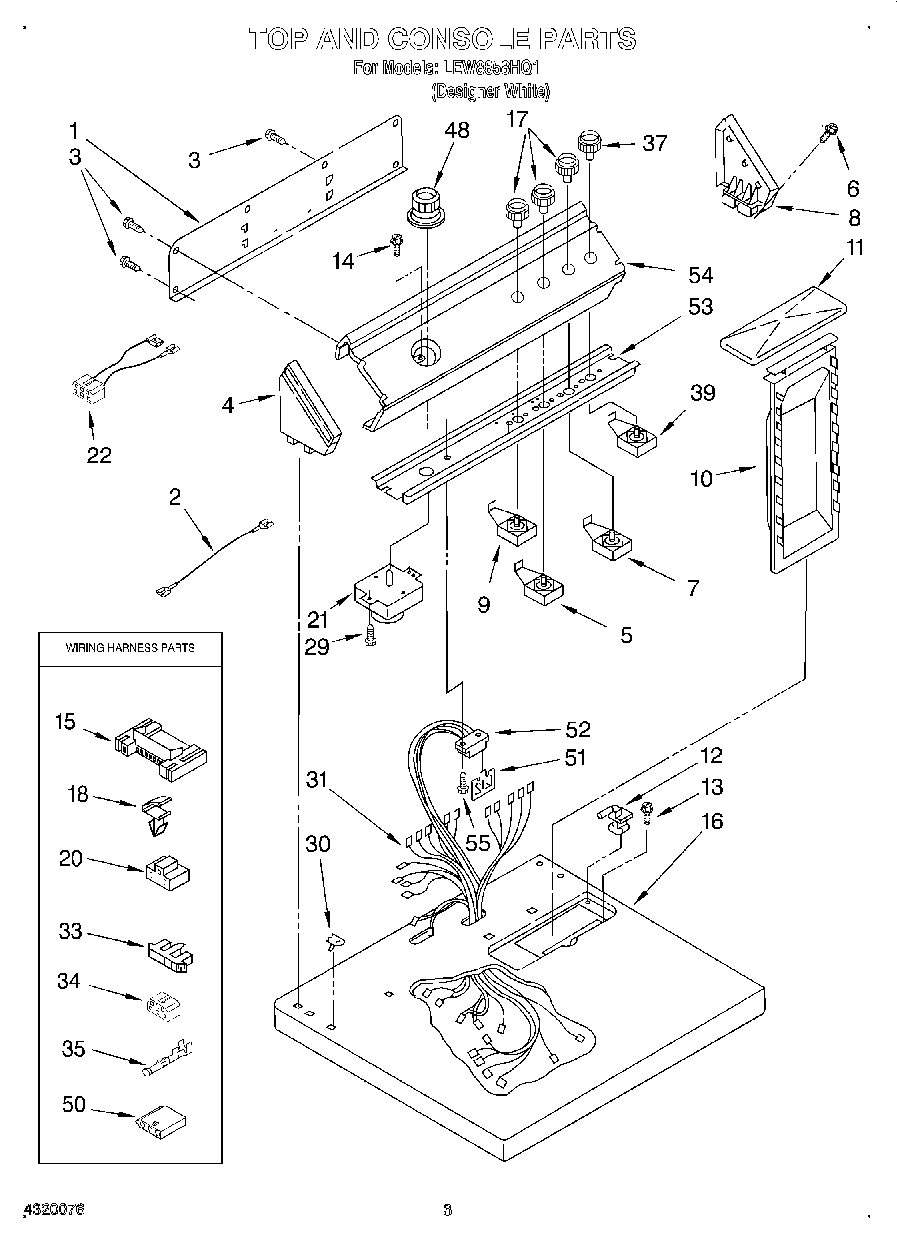

PositionProduct
Dryer
1Panel, Rear Console
2Wire, Jumper (Tan)
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
5WP3405156 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP3398093 Whirlpool Buzzer Adjuster
8Cap, End (R.H.)
9WP3399640 Whirlpool Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (White)
17WP3957796 Whirlpool Knob
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3976570 Whirlpool Timer
22Wire, Jumper
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Electric
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
37WP3957800 Whirlpool Knob
39WP3398094 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Control
55350938 Whirlpool Spray Gun
55SCREW
55350956 Whirlpool Spray Assembly
55799344 Whirlpool Refrigerator Paint
55WP72107 Whirlpool Touchup
55350930 Whirlpool White Spray Paint
55Almond (Uncut)
5572017 Whirlpool Appliance Touch-Up Paint White
