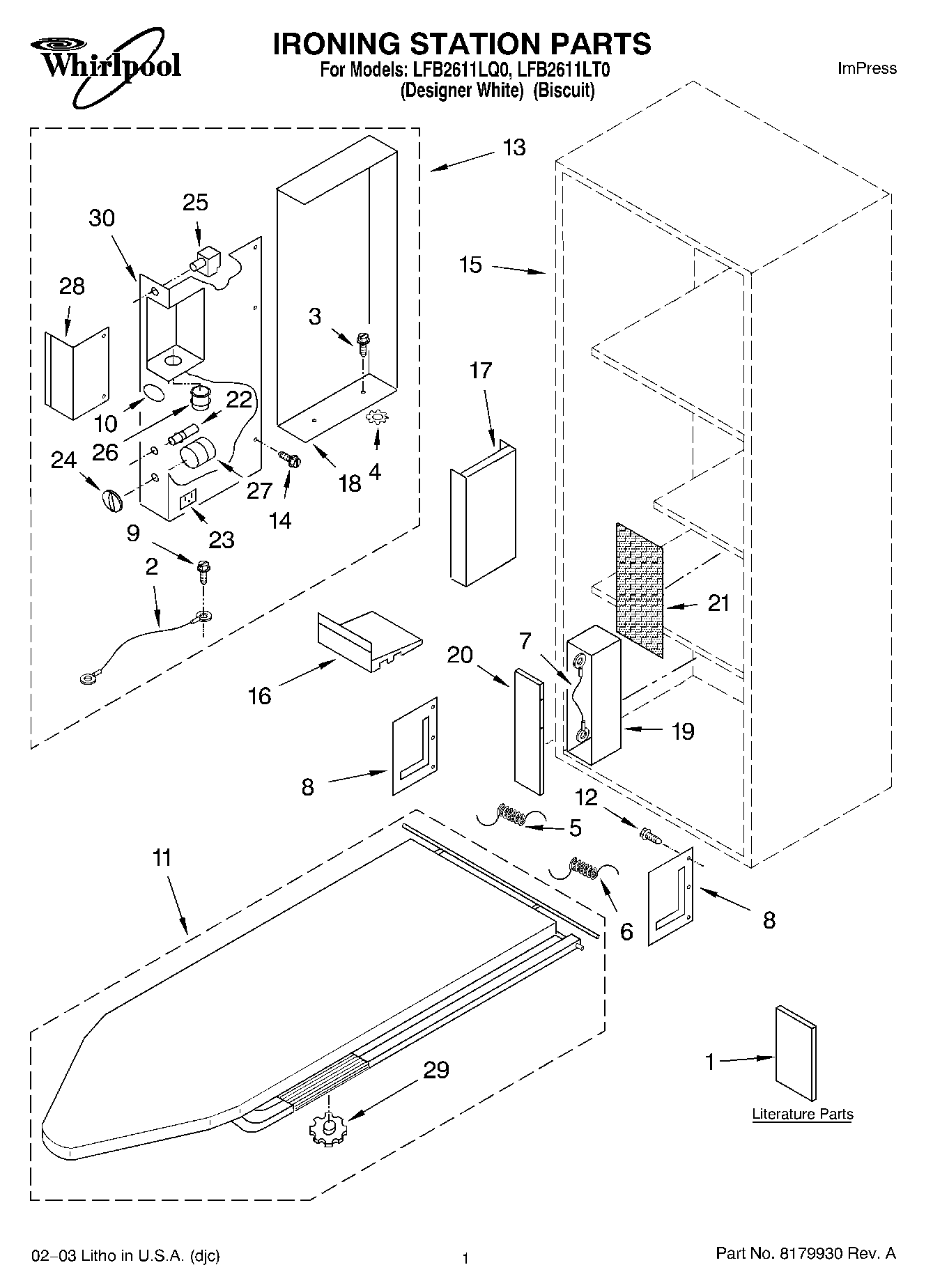

LFB2611LQ0 01 – OPTIONAL PARTS (NOT INCLUDED) IRONING STATION PART

Products

PositionProduct
1Guide, Use & Care
1Installation Instructions
2Wire, Ground (Long)
3WP489069 Whirlpool Compactor Screw
4No. 8 Star Washer
5Board Spring (Left)
6Board Spring (Right)
7Wire, Ground (Short)
8Plated Swivel Brackets, (Pair)
10Badge, Assembly
11Swivel Board Complete (Does Not Include Pad/Cover or Illus. 8) (Biscuit)
11Swivel Board Complete (Does Not Include Pad/Cover or Illus. 8) (White)
12WP8211253 Whirlpool Screw
13Control Panel, Complete (Biscuit)
13Control Panel, Complete (White)
14WP90767 Whirlpool Screw
15Cabinet, Wooden (Biscuit)
15Cabinet, Wooden (White)
16Iron Wedge (Biscuit)
16Iron Wedge (White)
17Shelf Divider (White)
17Shelf Divider (Biscuit)
18Rear Panel (Biscuit)
18Rear Panel (White)
19Box, Junction (Biscuit)
19Box, Junction (White)
20Cover, Junction Box (Biscuit)
20Cover, Junction Box (White)
21Shield, Heat
22Light, Indicator
23Outlet, Plug-In
24Knob, Timer
25Switch, Cut-Off
26Socket, Light (Includes LockNut)
27TIMER
28Cover, Lens
29Knob, Tension
30WPL ARI117780A
30Roller/Catch Assembly
30Control Panel (Panel Only) (Biscuit)
30Control Panel (Panel Only) (White)
30Pad & Cover Assembly
30Door Hinges (Includes Screw
