Aparts

LFC22770ST 0

LFC22770ST 0

Written by

in

LFC22770ST 0

Products

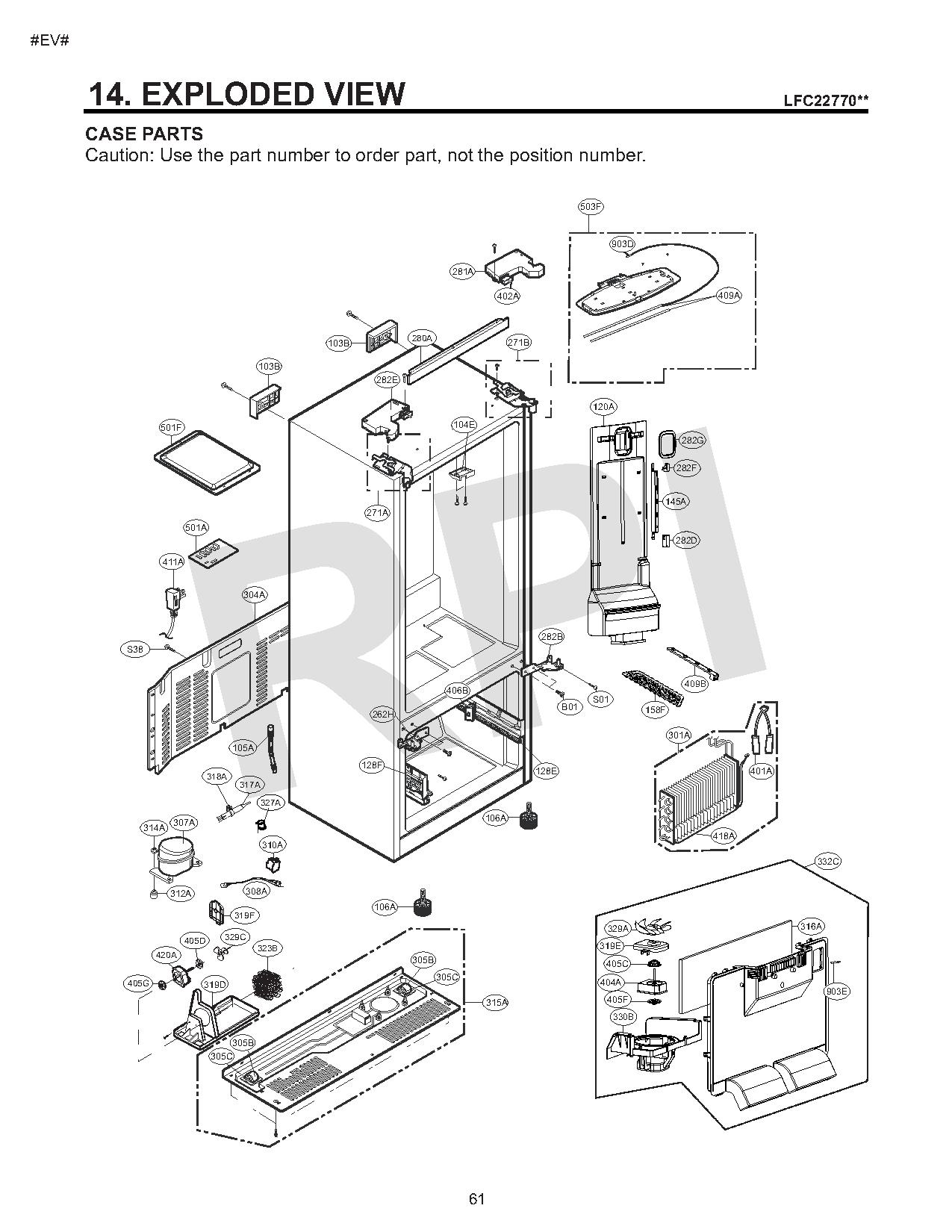

PositionProduct
S384J00415D LG Refrigerator Customized Screw
B011STZJA3004C LG Refrigerator Customized Screw
S011SZZJJ3010A LG Customized Screw
103BMEB64014304 LG Rear Handle Assembly
104EMEG65198801 LG Refrigerator Door Holder
105ATUBE ASSY-DRAIN
106A4779JQ3003J LG Refrigerator LEG Assembly-ADJUST
120ADUCT ASSY-MULTI
128FMEG63342802 LG Holder Rail
128EMEG63342801 LG Rail Holder
128FMEG64760002 LG Rail Holder
128EAEJ74940602 LG Holder Assembly
145AMEG63343001 LG Refrigerator Shelf Holder
158FABQ76660203 LG Refrigerator CASE Assembly-Lamp
158FMCK69348401 LG Lamp Cover
262HAEH73856221 LG Hinge Assembly Center
271AAEH74157302 LG Refrigerator Right Hand Upper Door Hinge Assembly
271BAEH74157301 LG Refrigerator Upper Left Hand Door Hinge Assembly
280AABQ75822414 LG Refrigerator CASE Assembly-Display
280AABQ74110424 LG Refrigerator Assembly Display Case
281AMCK67400406 LG Refrigerator Door Hinge Cover
282BAEH73856222 LG Center Hinge Assembly
282FMBL64918601 LG Refrigerator Duct Cap
282EMCK67400405 LG Refrigerator Hinge Cover
282DMBL65401201 LG Duct Cap
282GMCR65017201 LG Refrigerator Decor Cover
301A5421JJ1001R LG Assembly Evaporator
301A5421JJ1001T LG Refrigerator Evaporator Assembly
304AACQ76219910 LG Refrigerator Machinery Cover Assembly
305B4580JJ3001G LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
307ATCA37032028 LG Compressor Assembly Set
307ATCA38151706 LG Compressor Assembly Set
308AEAD64168638 LG Refrigerator Harness Assembly
308ATHERMISTOR ASSY-PTC
309AOVERLOAD PROTECT
310AMCK70052501 LG PTC Cover
310A3550JA2110B LG Cover
312AMCQ66921103 LG Compressor Damper
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN73232104 LG Compressor Base Assembly
316AMDS65810802 LG Refrigerator Foam Gasket
317AADH73590310 LG Refrigerator Dryer Assembly
318AMEG64900401 LG Refrigerator Dryer Holder
319E4810JJ2005A LG Motor Bracket
319DAEC73638801 LG Refrigerator Fan Guide Assembly
319FMCK67158901 LG Refrigerator Motor Cover
323BACG73766708 LG Refrigerator Wire Condenser Assembly
323BACG73766709 LG Refrigerator Condenser Assembly-Wire
327A5006JA3049A LG Drain Tube Cap
329A5901JJ1005A LG Fan Assembly
329CADP36665705 LG Fan Assembly
330BMHN62322002 LG Refrigerator Freezer Shroud
332CAEB73865906 LG Fan Grille Assembly
332CAEB73865902 LG Fan Grille Assembly
401A6615JB2005U LG Refrigerator Defrost Temperature Sensor
402A6600JB3007K SWITCH-PUSH BUTTON
404AEAU65058315 LG DC Motor Assembly
404AMOTOR-DC
405G5040JA2009A LG Damper Motor Support
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405D5040JA2004A LG Refrigerator Motor Support Damper
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
406BEBF61314813 LG Refrigerator Magnet Switch
406B6600JB1010K LG Refrigerator Push Button Door Switch
409BEAV61652805 LG LED Assembly
409BEAV63332113 LG Refrigerator LED Assembly
409AEAV62074702 LG Refrigerator LED Assembly
410GEAE58905704 LG Electric Appliance Capacitor
411AEAD61445236 LG Power Cord Assembly
411AEAD61445253 LG Power Cord Assembly
412DEAD61050803 LG Harness Assembly
418A5300JB1100R LG Sheath Heater
418A5300JB1100Y LG Refrigerator Heater Sheath
420AEAU65058312 LG Electronics DC Motor Assembly
420A4681JB1029S LG Refrigerator DC Motor
501AEBR77042511 LG Refrigerator Main PCB Assembly
501AEBR30299301 LG Refrigerator Main PCB Assembly
501FACQ85329203 LG Cover Assembly PCB
503FACQ86325302 LG Refrigerator Lamp Cover Assembly
610CMCK66690301 LG Refrigerator Sensor Cover
903DSENSOR-TEMPERATURE
903E6500JB2002X LG Refrigerator Temperature Sensor
