Aparts

LFC22770SW 0

LFC22770SW 0

Written by

in

LFC22770SW 0

Products

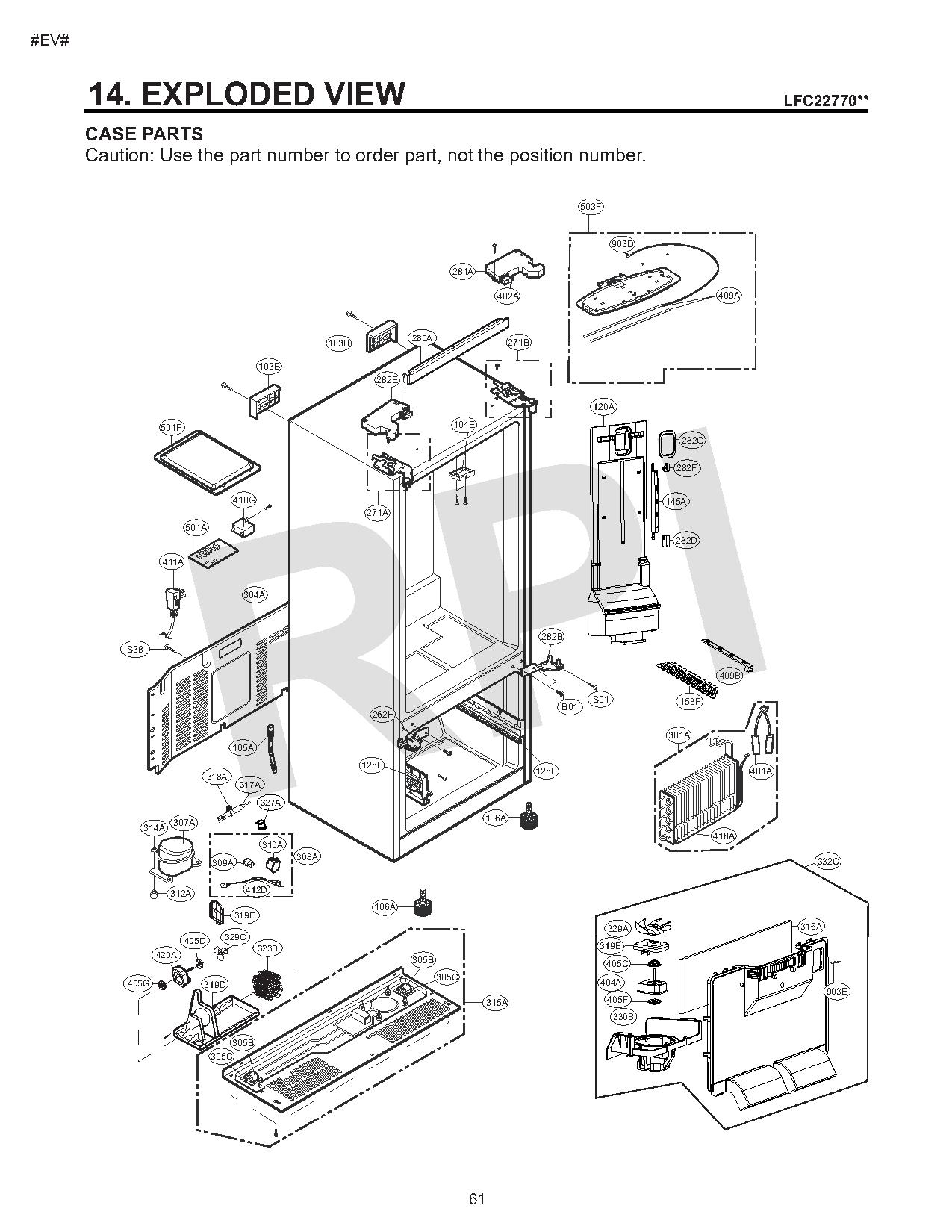

PositionProduct
S384J00415D LG Refrigerator Customized Screw
S011SZZJJ3010A LG Customized Screw
B011STZJA3004C LG Refrigerator Customized Screw
103BMEB64014305 LG Rear Handle
104EMEG65198801 LG Refrigerator Door Holder
105ATUBE ASSY-DRAIN
106A4779JQ3003J LG Refrigerator LEG Assembly-ADJUST
120ADUCT ASSY-MULTI
128EAEJ74940602 LG Holder Assembly
128FMEG64760002 LG Rail Holder
145AMEG63343001 LG Refrigerator Shelf Holder
158FMCK69348401 LG Lamp Cover
262HAEH73856223 LG Refrigerator Center Hinge Assembly
271BAEH74157301 LG Refrigerator Upper Left Hand Door Hinge Assembly
271AAEH74157302 LG Refrigerator Right Hand Upper Door Hinge Assembly
280AABQ75822416 LG Refrigerator CASE Assembly-Display
281AMCK67400404 LG Hinge Cover
282EMCK67400403 LG Hinge Cover
282BAEH73856224 LG Hinge Assembly Center
282GMCR65017201 LG Refrigerator Decor Cover
282FMBL64918601 LG Refrigerator Duct Cap
282DMBL65401201 LG Duct Cap
301A5421JJ1001R LG Assembly Evaporator
304AACQ76219910 LG Refrigerator Machinery Cover Assembly
305C1PZZJA3013B LG Common Pin
305B4580JJ3001G LG Refrigerator Roller
307ATCA38151706 LG Compressor Assembly Set
308ATHERMISTOR ASSY-PTC
309AOVERLOAD PROTECT
310A3550JA2110B LG Cover
312AMCQ66921103 LG Compressor Damper
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN73232104 LG Compressor Base Assembly
316AMDS65810802 LG Refrigerator Foam Gasket
317AADH73590310 LG Refrigerator Dryer Assembly
318AMEG64900401 LG Refrigerator Dryer Holder
319DAEC73638801 LG Refrigerator Fan Guide Assembly
319E4810JJ2005A LG Motor Bracket
319FMCK67158901 LG Refrigerator Motor Cover
323BACG73766708 LG Refrigerator Wire Condenser Assembly
327A5006JA3049A LG Drain Tube Cap
329CADP36665705 LG Fan Assembly
329A5901JJ1005A LG Fan Assembly
330BMHN62322002 LG Refrigerator Freezer Shroud
332CAEB73865906 LG Fan Grille Assembly
401A6615JB2005U LG Refrigerator Defrost Temperature Sensor
402AEBF61314813 LG Refrigerator Magnet Switch
404AEAU65058315 LG DC Motor Assembly
405D5040JA2004A LG Refrigerator Motor Support Damper
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405G5040JA2009A LG Damper Motor Support
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
409AEAV62074702 LG Refrigerator LED Assembly
409BEAV61652805 LG LED Assembly
410GEAE32501017 LG Refrigerator Capacitor
411AEAD61445253 LG Power Cord Assembly
412DEAD61050803 LG Harness Assembly
418A5300JB1100R LG Sheath Heater
420AEAU65058312 LG Electronics DC Motor Assembly
501FACQ85329203 LG Cover Assembly PCB
501AEBR81182784 LG Refrigerator Main PCB Assembly
503FACQ86325302 LG Refrigerator Lamp Cover Assembly
903DSENSOR-TEMPERATURE
903E6500JB2002X LG Refrigerator Temperature Sensor
