LFC24786SD 0

LFC24786SD 0

Written by

in

LFC24786SD 0

Products

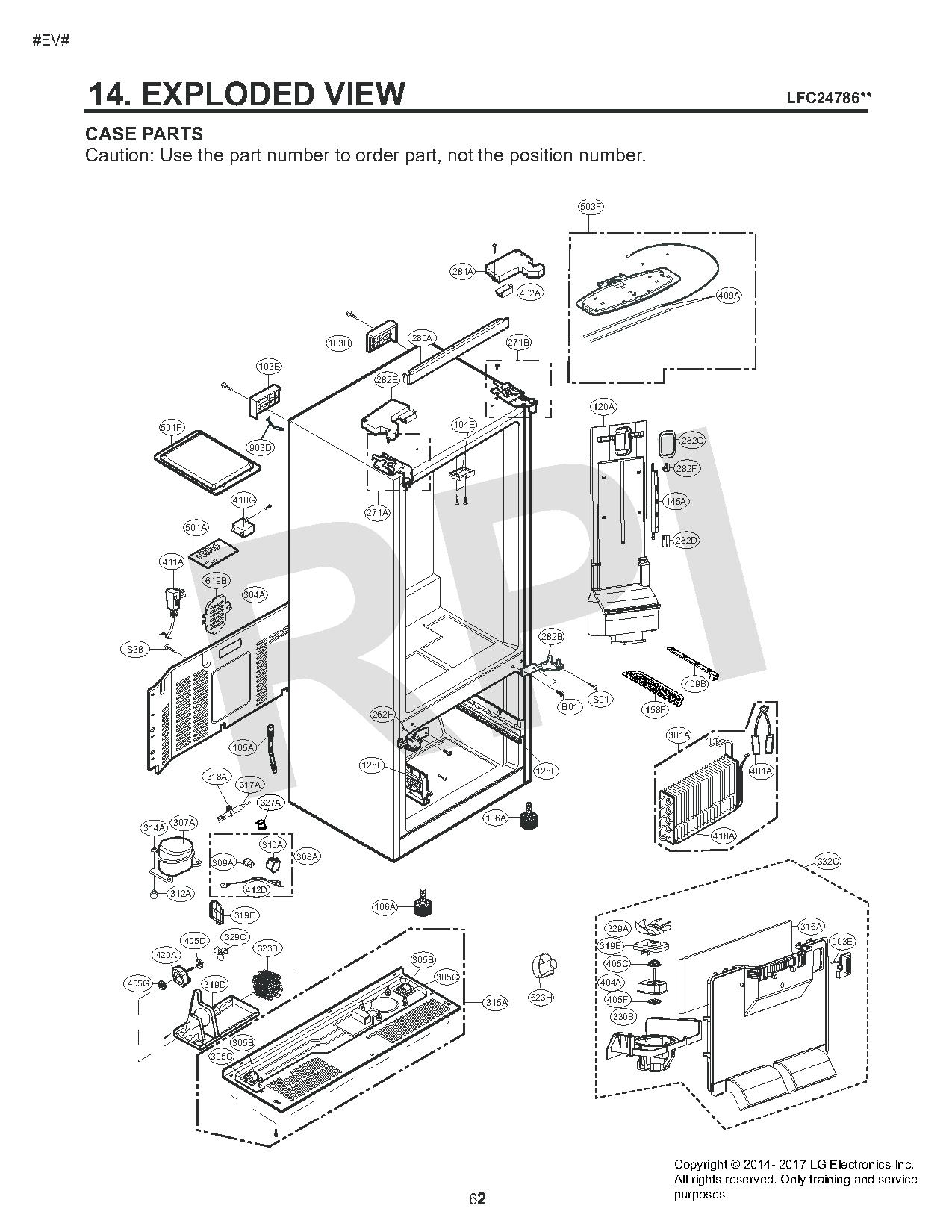

PositionProduct
S011SZZJJ3010A LG Customized Screw
S384J00415D LG Refrigerator Customized Screw
B011STZJA3004C LG Refrigerator Customized Screw
103BMEB64014305 LG Rear Handle
104EMEG62780601 LG Refrigerator Door Holder
105ATUBE ASSY-DRAIN
106A4779JQ3003J LG Refrigerator LEG Assembly-ADJUST
120AADJ73712906 LG Duct Assembly
128FMEG64760002 LG Rail Holder
128EAEJ74940602 LG Holder Assembly
145AMEG63343001 LG Refrigerator Shelf Holder
158FMCK69348401 LG Lamp Cover
262HAEH71135344 LG Refrigerator Hinge Assembly-Center
271AAEH74157302 LG Refrigerator Right Hand Upper Door Hinge Assembly
271BAEH74157301 LG Refrigerator Upper Left Hand Door Hinge Assembly
280AABQ75822419 LG Refrigerator Display Case Assembly
281AMCK67400404 LG Hinge Cover
282DMBL65401201 LG Duct Cap
282EMCK67400403 LG Hinge Cover
282GMCR65017201 LG Refrigerator Decor Cover
282BHinge Assembly,Center
282FMBL64918601 LG Refrigerator Duct Cap
301AADL73161707 LG Evaporator Assembly
304AACQ76219911 LG Refrigerator Cover Machinery Assembly
305B4580JJ3001G LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
307ATCA38151706 LG Compressor Assembly Set
308ATHERMISTOR ASSY-PTC
309AOVERLOAD PROTECT
310A3550JA2110B LG Cover
312AMCQ66921103 LG Compressor Damper
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN73232105 LG Compressor Base Assembly
316AMDS65810801 LG Refrigerator Foam Gasket
317AADH73590310 LG Refrigerator Dryer Assembly
318AMEG64900401 LG Refrigerator Dryer Holder
319DAEC73638802 LG Refrigerator Guide Assembly-FAN
319E4810JJ2005A LG Motor Bracket
319FMCK67158901 LG Refrigerator Motor Cover
323BACG73946401 LG Condenser Wire Assembly
327A5006JA3049A LG Drain Tube Cap
329A5901JJ1005A LG Fan Assembly
329CADP36665705 LG Fan Assembly
330BMHN62322002 LG Refrigerator Freezer Shroud
332CAEB73865907 LG Fan Grille Assembly
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
404AEAU65058315 LG DC Motor Assembly
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405D5040JA2004A LG Refrigerator Motor Support Damper
405G5040JA2009A LG Damper Motor Support
409BEAV61652805 LG LED Assembly
409AEAV62074702 LG Refrigerator LED Assembly
410GEAE58905704 LG Electric Appliance Capacitor
410GEAE32501017 LG Refrigerator Capacitor
411AEAD61445253 LG Power Cord Assembly
411AEAD61445245 LG Power Cord Assembly
412DEAD61050803 LG Harness Assembly
418AHEATER-SHEATH
420AEAU65058312 LG Electronics DC Motor Assembly
501FACQ85329203 LG Cover Assembly PCB
501AEBR81182783 LG Refrigerator Main PCB Assembly
501AEBR81182793 LG Refrigerator Main PCB Assembly
503FACQ86325302 LG Refrigerator Lamp Cover Assembly
619BMCK63312301 LG Valve Cover
623HMCK62967601 LG Refrigerator Tube Cover
903E6500JB2002X LG Refrigerator Temperature Sensor
903DSENSOR-TEMPERATURE
