LFC24786SD 3

LFC24786SD 3

Written by

in

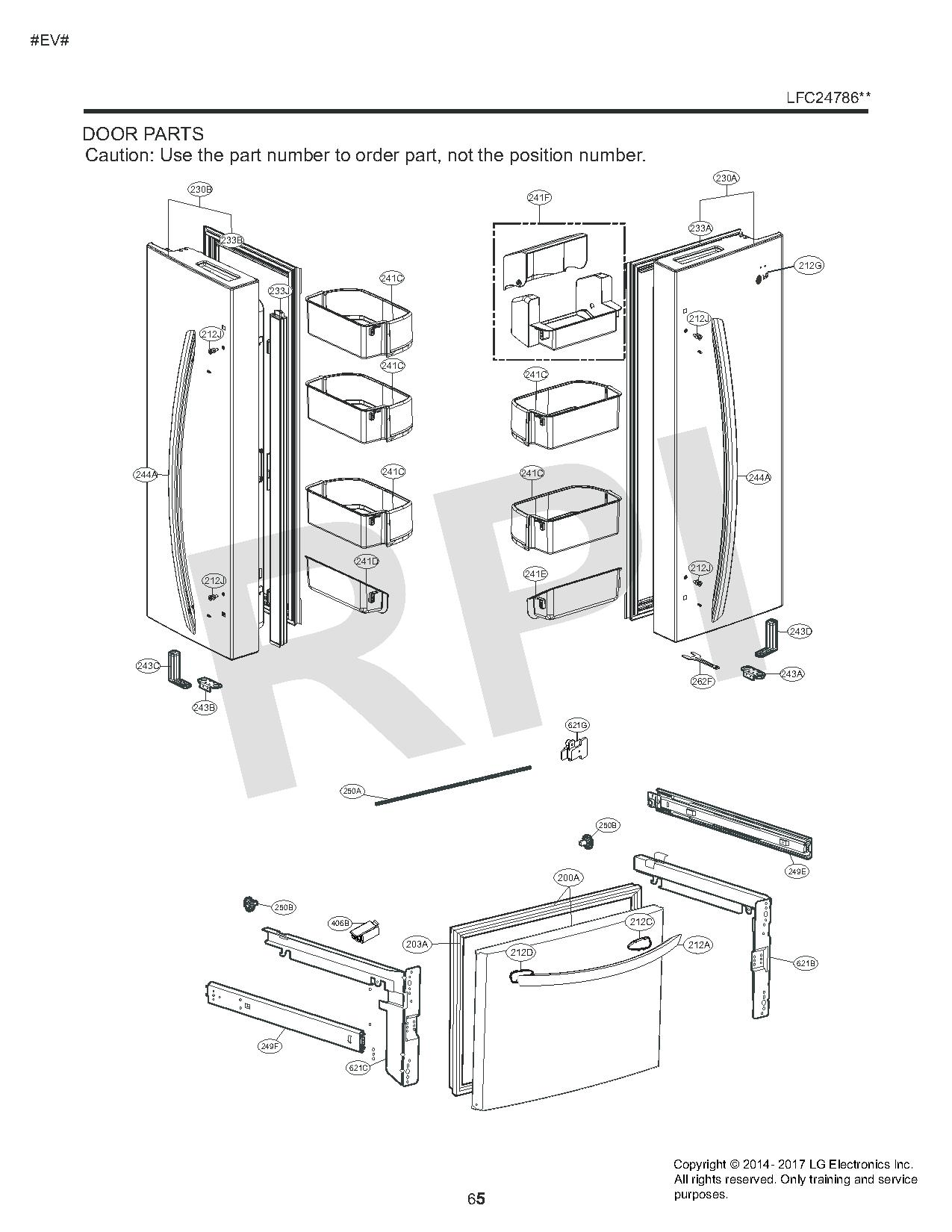

LFC24786SD 3

Products

PositionProduct
200ADoor Assembly,Freezer
203AADX73350963 LG Refrigerator Door Gasket Assembly
212AAED37133162 LG Handle Assembly
212DMCR65036304 LG Refrigerator Handle Decor
212CMCR65036303 LG Refrigerator Handle Decor
212GMFT62346511 LG Refrigerator Nameplate
212JMJB63190002 LG Refrigerator Stopper Handle
230BDoor Assembly,Refrigerator(Left)
230ADoor Assembly,Refrigerator(Right)
233BADX73350636 LG Refrigerator Door Gasket Assembly
233AADX73350635 LG Refrigerator Door Gasket Assembly
233JAGU74429103 LG Front Plate Assembly
241CBASKET ASSY-DOOR
241DMAN62849801 LG Refrigerator Door Basket
241EMAN62849802 LG Refrigerator Door Basket
241FAAP73051402 LG Refrigerator Door Basket Assembly
243CAEH36821908 LG Refrigerator Center Door Hinge Assembly
243DAEH36821910 LG Refrigerator Center Hinge Assembly
243AAJC68689618 LG Door Stopper Assembly
243BAJC68689617 LG Refrigerator Door Stopper Assembly
244AAED37082988 LG Refrigerator Handle Assembly
249F5218JA1010F LG Refrigerator Left Side Drawer Slide Rail
249ERAIL-SLIDE
250B4403JJ3001B LG Refrigerator Connector Assembly
250A4270JJ3001A LG Refrigerator Bar
262FMHU62101101 LG Refrigerator Spanner
406BEBF61314813 LG Refrigerator Magnet Switch
621CMCD61841107 LG Refrigerator Rail Connector
621BMCD61841106 LG Refrigerator Rail Connector
621GMCK67227905 LG Refrigerator Door Switch Cover
