LFC25765ST 0

Products

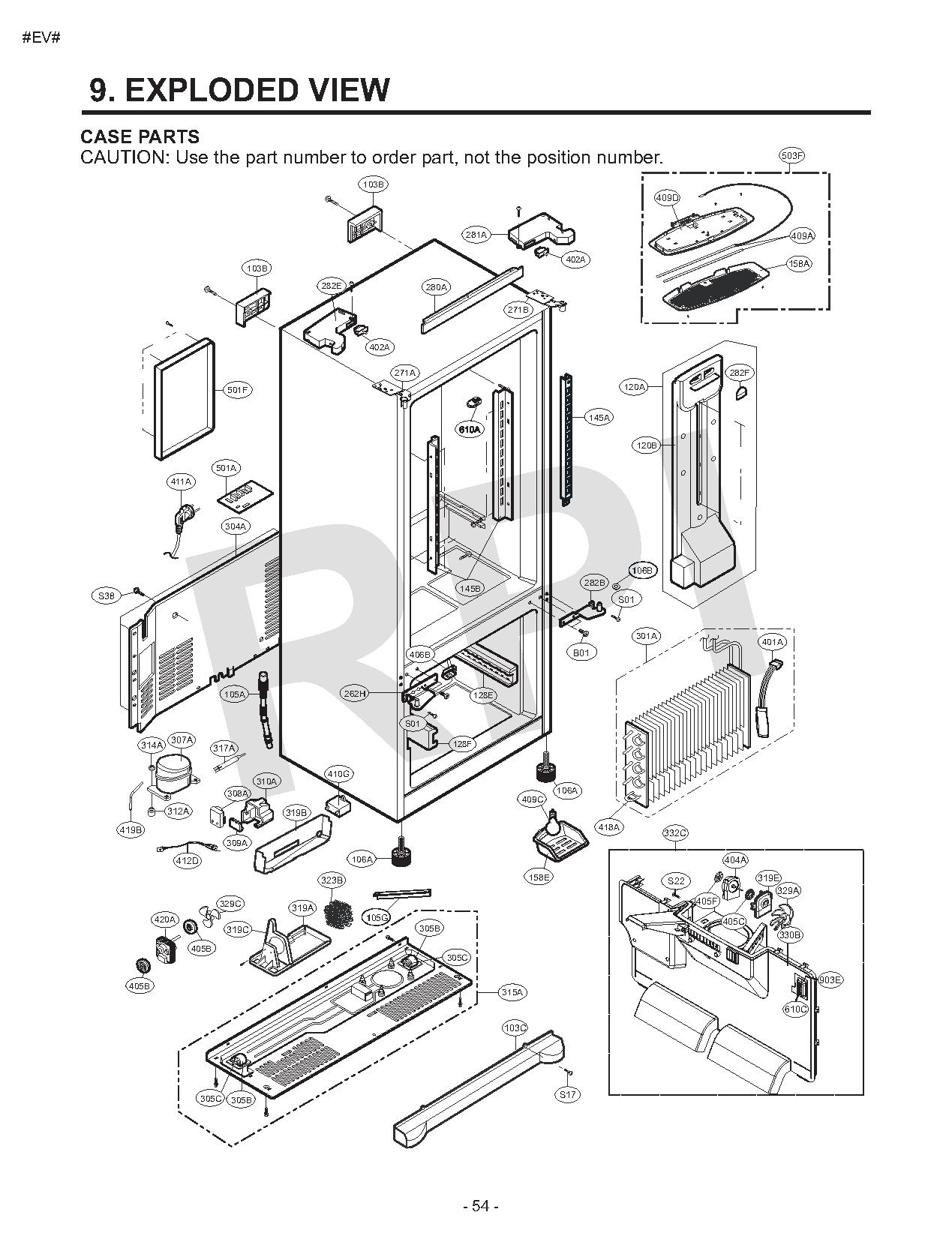

PositionProduct
S174J01425B LG Customized Screw
S384J00415D LG Refrigerator Customized Screw
103BMEB64014304 LG Rear Handle Assembly
103CCover,Lower
105GSkirt,Lower
105ATUBE ASSY-DRAIN
106A4779JQ3003J LG Refrigerator LEG Assembly-ADJUST
106B4J00382C LG Washer Common
120AADJ72909814 LG Multi Duct Assembly
128EAEJ73460201 LG Holder Assembly
128FMEG62760301 LG Rail Holder Assembly
145A4930JJ2004D LG Refrigerator Shelf Holder
145B4930JJ2003D LG Shelf Holder
158EMCK66846501 LG Refrigerator Lamp Cover
158ACover,Lamp
262HAEH71135340 LG Hinge Assembly Center
271BAEH75256503 LG Refrigerator Upper Hinge Assembly
271AAEH75256504 LG Refrigerator Upper Hinge Assembly
280AABQ56655305 LG Display Assembly Case
281ACover Assembly,Hinge
282FMBL64918601 LG Refrigerator Duct Cap
282BAEH71135338 LG Refrigerator Center Hinge Assembly
282EACQ34533347 LG Refrigerator Right Door Hinge Cover Assembly
301AADL73161702 LG Evaporator Assembly
304AACQ77080101 LG Refrigerator Cover Machinery Assembly
305C1PZZJA3013B LG Common Pin
305B4580JJ3001A LG Refrigerator Tray Roller
307ATCA38151706 LG Compressor Assembly Set
308ATHERMISTOR ASSY-PTC
309AOVERLOAD PROTECT
310A3550JA2110B LG Cover
312AMCQ66921101 LG Refrigerator Compressor Damper
314A4620JA3015A LG Refrigerator Compressor Stopper
315ABase Assembly,Compressor
317AADH73590307 LG Dryer Assembly
319E4810JJ2005A LG Motor Bracket
319AMJS61991901 LG Refrigerator Drip Tray
319CMEA62651101 LG Fan Guide
319B3391JJ2013F LG Refrigerator Drain Tray Assembly
323BACG73104504 LG Wire Condenser Assembly
329CADP36665702 LG Fan Assembly
329A5901JJ1005A LG Fan Assembly
330BMHN62322002 LG Refrigerator Freezer Shroud
332CAEB73564903 LG Fan Grille Assembly
401ACONTROLLER ASSY
402A6600JB3007K SWITCH-PUSH BUTTON
404AMOTOR-DC
405B5040JJ2001A LG Damper Support Motor
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
406B6600JB1010K LG Refrigerator Push Button Door Switch
409DMBN62023801 LG Refrigerator Case Lamp
409AEAV62052302 LG LED Assembly
409CLamp,Incandescent
410GEAE58905704 LG Electric Appliance Capacitor
411APower Cord Assembly
412DEAD61050803 LG Harness Assembly
418A5300JB1100J LG Refrigerator Defrost Heater Element
419BMGE39575301 LG Refrigerator Compressor Sealing Pipe
420A4681JB1029D LG Refrigerator Condenser Fan Motor
501AEBR73304219 LG PCB Assembly Main
501FACQ85329203 LG Cover Assembly PCB
503FACQ33676523 LG Refrigerator Lamp Cover Assembly
610CMCK66690301 LG Refrigerator Sensor Cover
903E6500JB2002X LG Refrigerator Temperature Sensor
