Aparts

LFCS31626S 0

LFCS31626S 0

Written by

in

LFCS31626S 0

Products

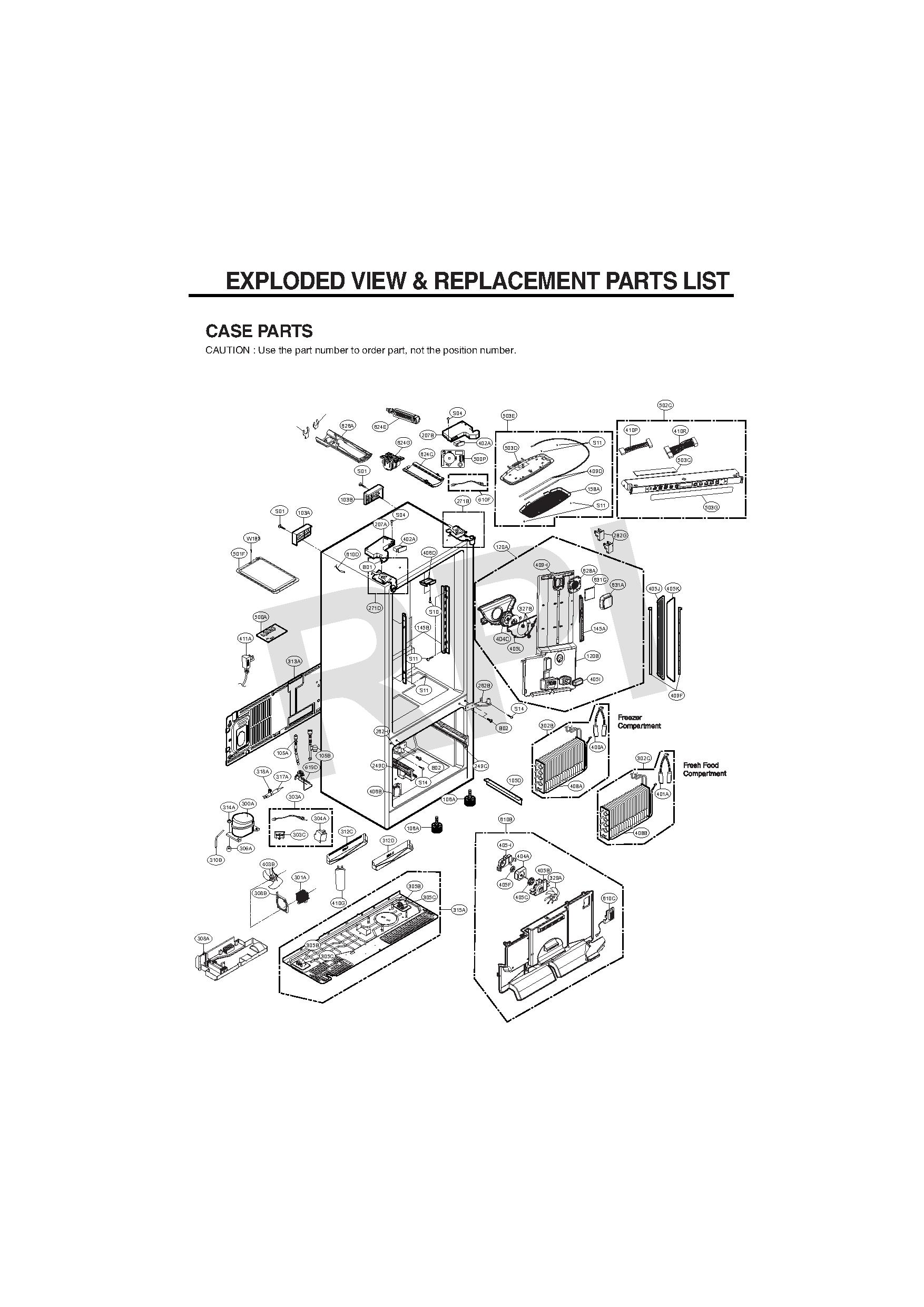

PositionProduct
103B3650JA2061W LG Rear Handle
103A3650JA2061X LG Rear Handle
105B5251JA2006B LG Drain Tube Assembly
105D5070JA3002S LG Lower Skirt
105ATUBE ASSY-DRAIN
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252234 LG Duct Assembly Multi
120AADJ73252245 LG Assembly Multi Duct
120BMCZ62293801 LG Refrigerator Multi Duct
135HADQ73853824 LG Refrigerator Water Filter Assembly
145AMEG62685901 LG Refrigerator Shelf Holder
145BMEG62685801 LG Refrigerator Shelf Holder
158AMCK66544101 LG Refrigerator Lamp Cover
207BMCK68412401 LG Hinge Cover
207AMCK68187602 LG Refrigerator Hinge Cover
249DAEC73837801 LG Refrigerator Rail Guide Assembly
249CAEC73317811 LG Refrigerator Guide Assembly Rail
262BHinge Assembly,Center
262HAEH73577643 LG Refrigerator Center Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
271BAEH60614102 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302BADL73981017 LG Evaporator Assembly
302CADL73341411 LG Evaporator Assembly
303DEAD64168631 LG Refrigerator Harness Assembly
303AEBG63205831 LG Thermistor Assembly PTC
303COVERLOAD PROTECT
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308CADP73273401 LG Fan Assembly
308BMEA42772903 LG Fan Guide
308AMJS62233503 LG Drip Tray
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013J LG Drain Tray Assembly
312D3391JJ2013H LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
327B5040JA3063B LG Damper
329A5901JA1021A LG Refrigerator Fan Blade
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
403BEAU62025701 LG DC Motor
404CEAU64824801 LG DC Motor Assembly
404AMOTOR-DC
404AEAU61524007 LG Refrigerator DC Evaporator Fan Motor
404CEAU65089701 LG DC Motor Assembly
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405IMCK61881401 LG Lamp Cover
405HMCK61880502 LG Motor Cover
405LMAZ63010801 LG Motor Bracket
405BMAZ61845401 LG Motor Bracket
405EMHN62542001 LG Refrigerator Shroud
405KMCK66584302 LG Lamp Cover
405JMCK66584301 LG Lamp Cover
406DMEG63261302 LG Refrigerator Door Holder
406BEBF61314816 LG Refrigerator Magnet Switch
408BMEE62105201 LG Refrigerator Sheath Heater
408AMEE62225112 LG Heater Sheath
409DEAV62052301 LG LED Assembly
409HEAV61572001 LG LED Assembly
409FEAV61916704 LG LED Assembly
410PEAD54367506 LG Harness Assembly
410RHarness Assembly
410GEAE32501017 LG Refrigerator Capacitor
411AEAD61445236 LG Power Cord Assembly
411AEAD62329151 LG Refrigerator Power Cord Assembly
500AEBR78940510 LG Refrigerator Main PCB Assembly
500AEBR78940506 LG Main PCB Assembly Refrigerator
500PEBR64730408 LG Power Control PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
502CLGE ABQ56655354
503GLGE MCR6568
503CEBR78723404 LG Display Power Control Board (PCB Assembly)
503EACQ85449501 LG Refrigerator Lamp Cover Assembly
503DMBN62347601 LG Refrigerator Case Lamp
