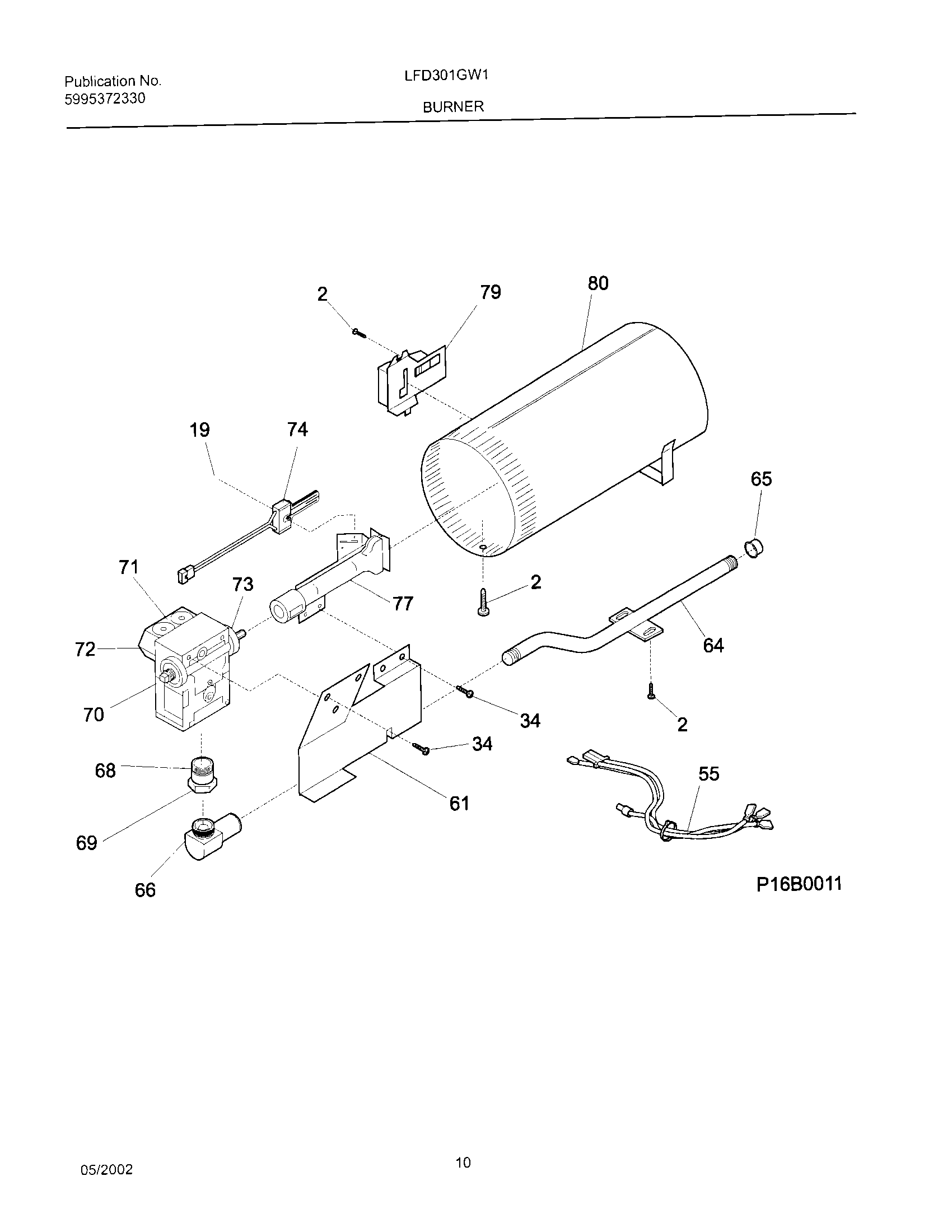

LFD301GW1 11 – BURNER

LFD301GW1 11 – BURNER

Written by

in

LFD301GW1 11 – BURNER

Products

PositionProduct
KIT-LP
2131168200 Frigidaire Dryer Screw
19131715500 Frigidaire Clip
34131243700 Frigidaire Screw
55WCI 131827100
61WCI 131418701
64WCI 134145300
6508015112 Frigidaire CAP
66WCI 131512000
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
77WCI 131762900
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80ASSY-BURNER TUBE/SENSOR
