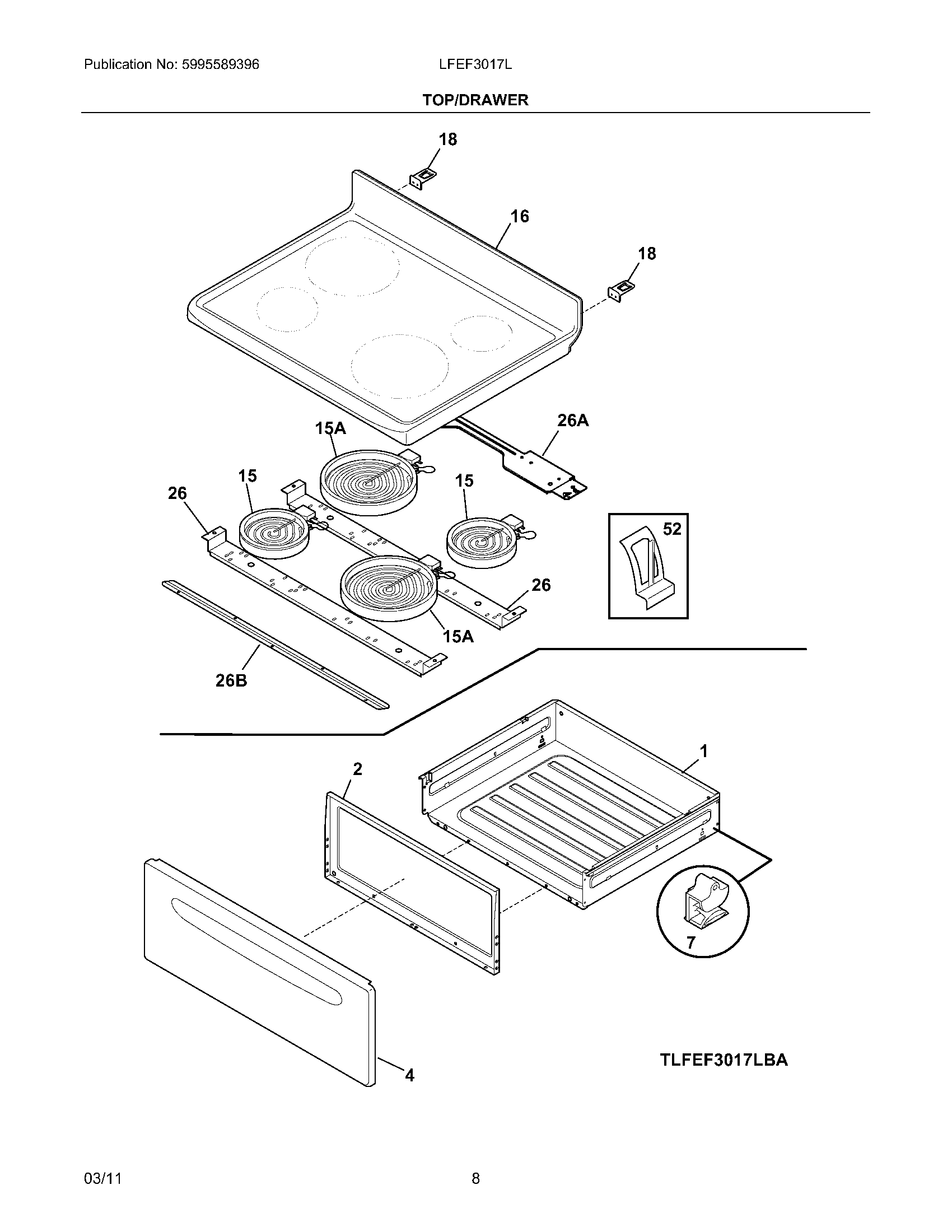

LFEF3017LQB 07 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316468101 Frigidaire Cleaner Assembly
NI	WCI 316580419
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	WCI 316403503
7	316407402 Frigidaire Range Drawer Glide
15A	9" RADIANT ELEMENT 2500W
15	318178110 Frigidaire Oven Range 6" Surface Element
16	WCI 316282954
18	316580800 Frigidaire Hinge Bracket
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
26B	WCI 316214202
52	316461700 Frigidaire Oven Clip Assembly
