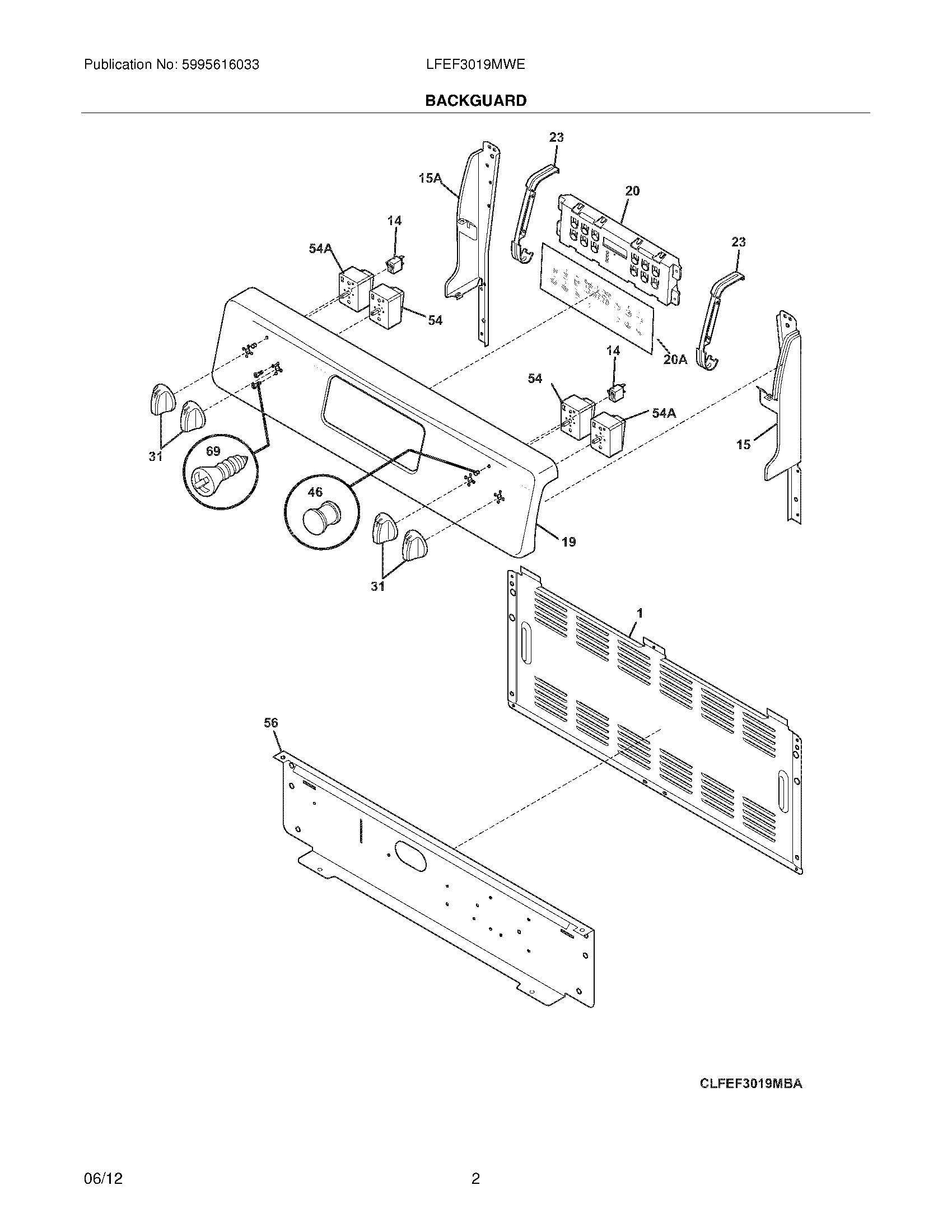

LFEF3019MWE 03 – BACKGUARD

LFEF3019MWE 03 – BACKGUARD

Written by

in

LFEF3019MWE 03 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1316281802 Frigidaire Oven Shield
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15WCI 316411403
15AWCI 316411402
19Panel-Bkgd,white
205304510064 Frigidaire Range Control Board and Clock Assembly
20AWCI 316419354
23316441600 Frigidaire Bracket-Clock Mounting
31316543800 Frigidaire Oven Control Knob (Surface Unit, White)
46316557300 Frigidaire Range Indicator Light Lens
54316436000 Frigidaire Oven Range Surface Element Switch
54A316238201 Frigidaire Oven Switch
56316234029 Frigidaire Oven Shield
695303288565 Frigidaire Screw
