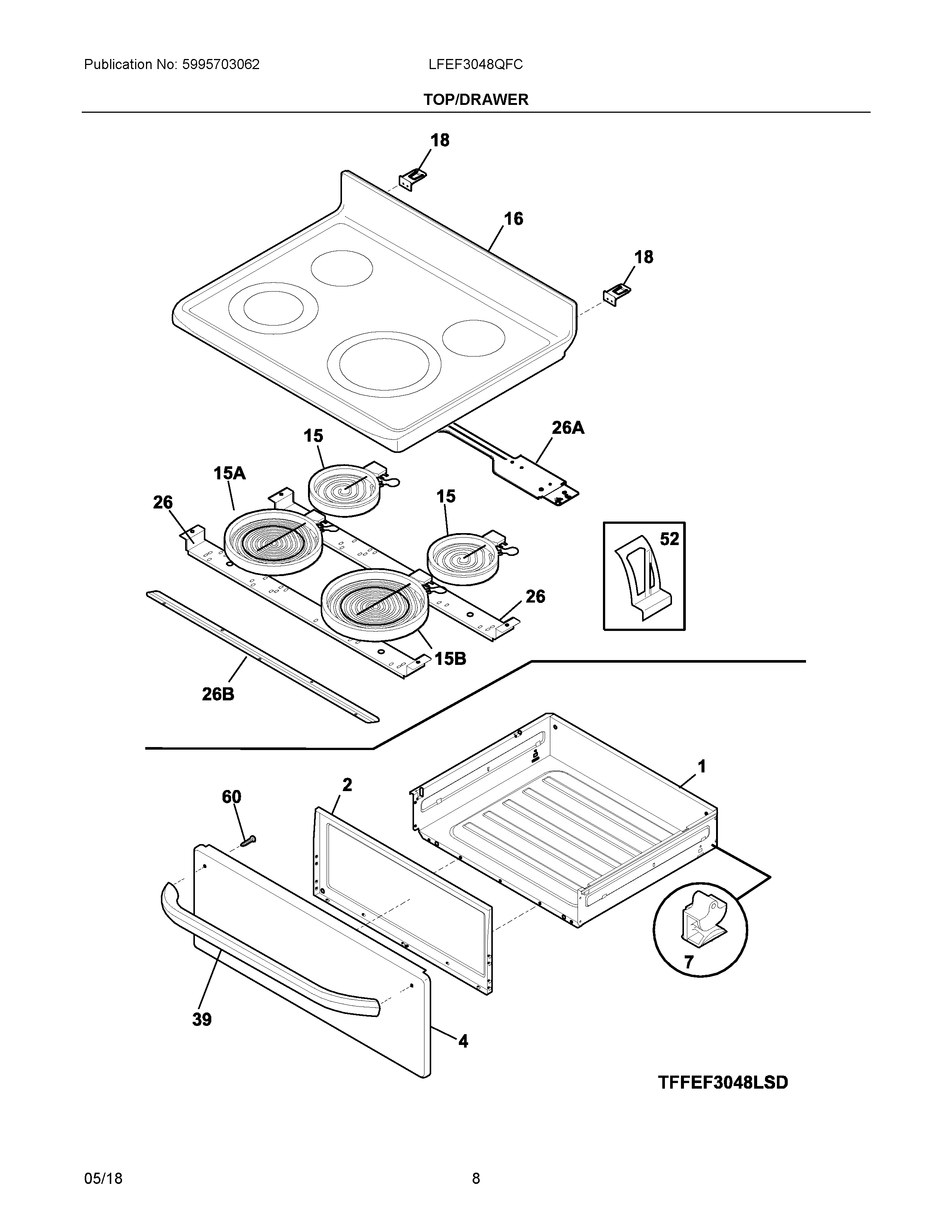

LFEF3048QFC 04 – TOP/DRAWER

LFEF3048QFC 04 – TOP/DRAWER

Written by

in

LFEF3048QFC 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517505 Frigidaire Harness
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511921 Frigidaire Range Panel
7316407402 Frigidaire Range Drawer Glide
15318178110 Frigidaire Oven Range 6" Surface Element
15ADUAL RADIANT ELEMENT
15B316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
16316531983 Frigidaire Oven Main
18316580800 Frigidaire Hinge Bracket
265304500986 Frigidaire Oven Channel
26BWCI 316214202
26A316498200 Frigidaire Oven Bracket
39316558201 Frigidaire Oven Handle
52316461700 Frigidaire Oven Clip Assembly
605304414648 Frigidaire Oven Screw
