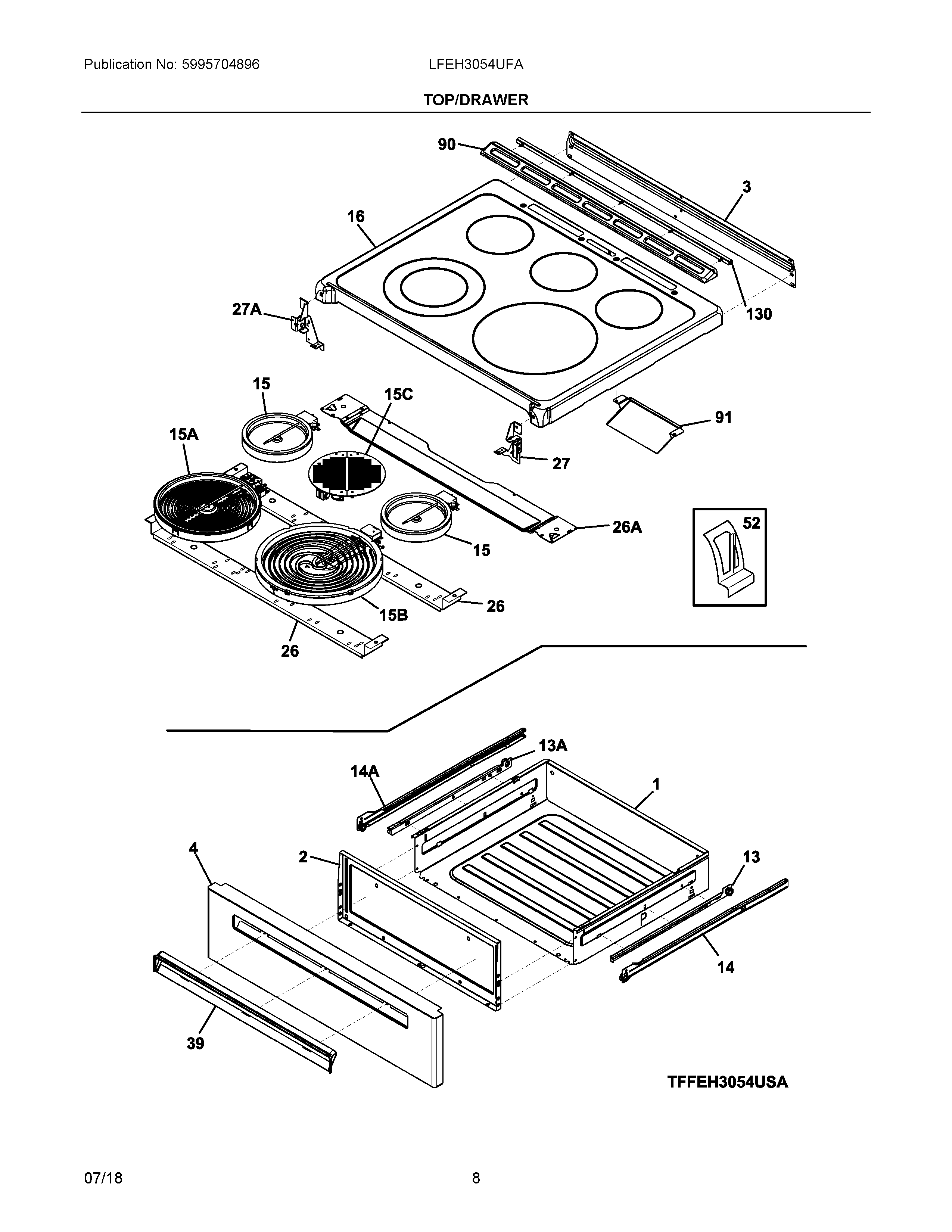

LFEH3054UFA 04 – TOP/DRAWER

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5304514143 Frigidaire Oven Harness
NI	316021105 Frigidaire Oven Screw
NIA	5308014215 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527988 Frigidaire Liner
3	5304514133 Frigidaire Oven Shield
4	5304514335 Frigidaire Oven Panel
13A	5304517903 Frigidaire Oven Glide Drawer
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
15	318178110 Frigidaire Oven Range 6" Surface Element
15B	316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15A	5304533520 Frigidaire Element
15C	5304521951 Frigidaire Element
16	5304514197 Frigidaire Oven Glass Cooktop
26A	BRACKET, SUPPORT, REAR, CHASSIS
26	5304512926 Frigidaire Channel
27	5304514123 Frigidaire Bracket
27A	5304514124 Frigidaire Bracket
39	5304511879 Frigidaire Handle Insert
52	316461700 Frigidaire Oven Clip Assembly
90	5304514157 Frigidaire Oven Trim
91	5304514181 Frigidaire Deflector Assembly
130	808931802 Frigidaire Oven Seal
