LFFH1467DW3 07 – SYSTEM

LFFH1467DW3 07 – SYSTEM

Written by

in

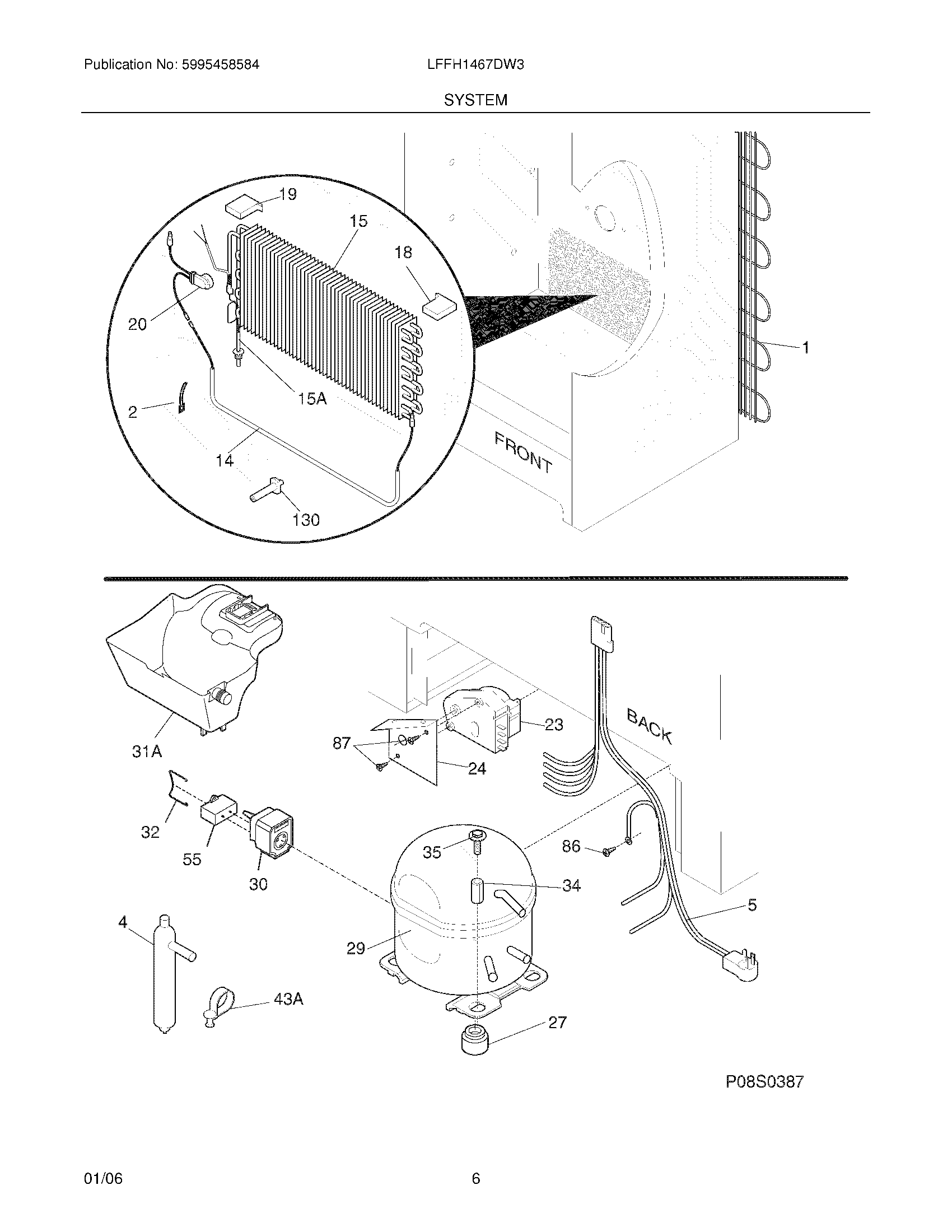

LFFH1467DW3 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NI297014702 Frigidaire Refrigerator Suction Line Plug
15300123788 Frigidaire Refrigerator Condenser
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216976800
145304496687 Frigidaire Refrigerator Defrost Heater
15A297348600 Frigidaire Refrigerator Heat Exchanger
15297414800 Frigidaire Refrigerator Evaporator
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304507765 Frigidaire Refrigerator Compressor Kit
30216954235 Frigidaire Refrigerator Compressor Freezer Controller
32WCI 216649100
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
55218909912 Frigidaire Capacitor Run
86216036601 Frigidaire Refrigerator Screw
87SCREW
130297244700 Frigidaire Refrigerator Support
