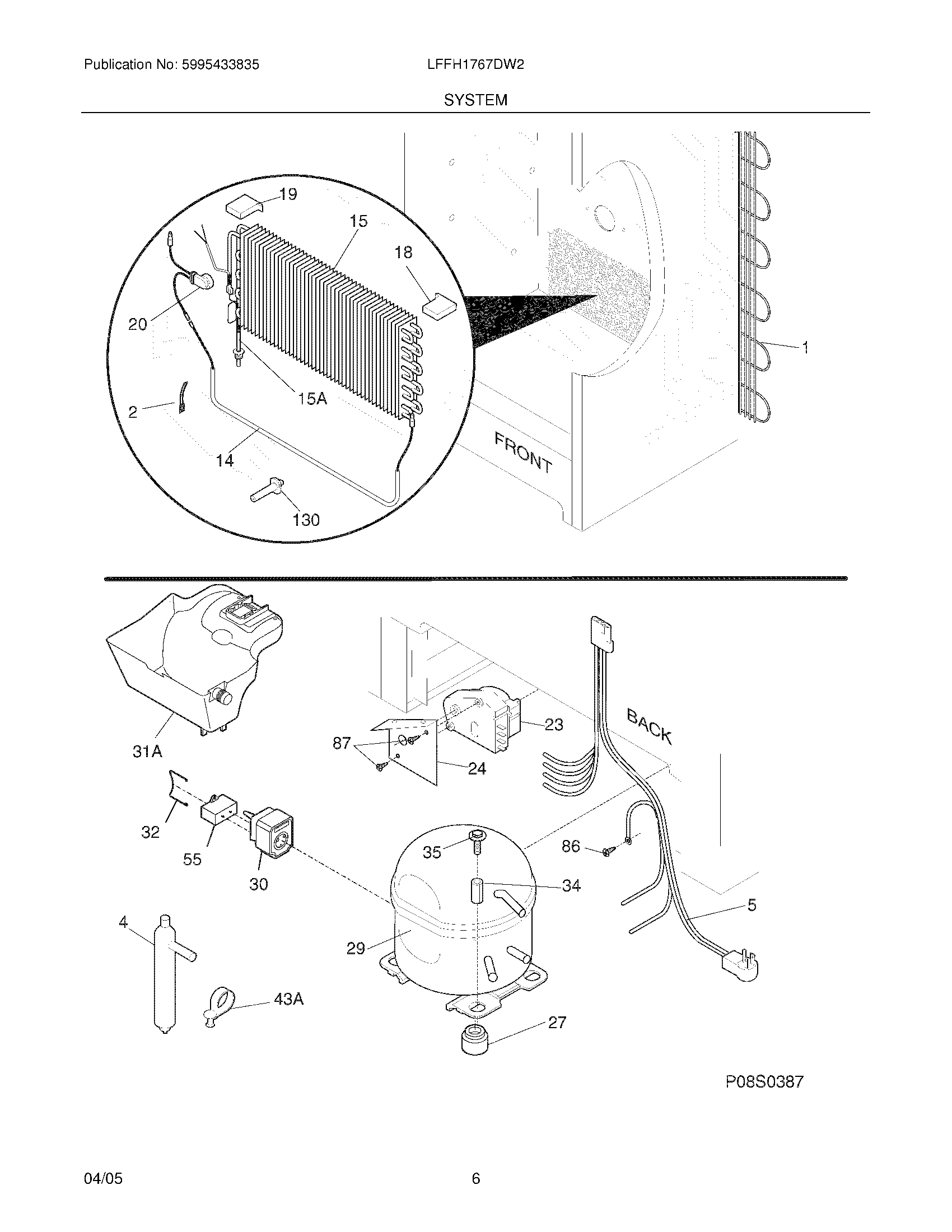

LFFH1767DW2 07 – SYSTEM

LFFH1767DW2 07 – SYSTEM

Written by

in

LFFH1767DW2 07 – SYSTEM

Products

PositionProduct
NI297014702 Frigidaire Refrigerator Suction Line Plug
NIWCI 216502500
NISPACER, COMPRESSOR
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216818200
14216730700 Frigidaire Refrigerator Defrost Heater
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
15297414901 Frigidaire Refrigerator Evaporator
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304511982 Frigidaire Refrigerator Compressor Kit
305304491584 Frigidaire Overload Start Relay
32WCI 216649100
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
55218909912 Frigidaire Capacitor Run
86216036601 Frigidaire Refrigerator Screw
87SCREW
130297244700 Frigidaire Refrigerator Support
