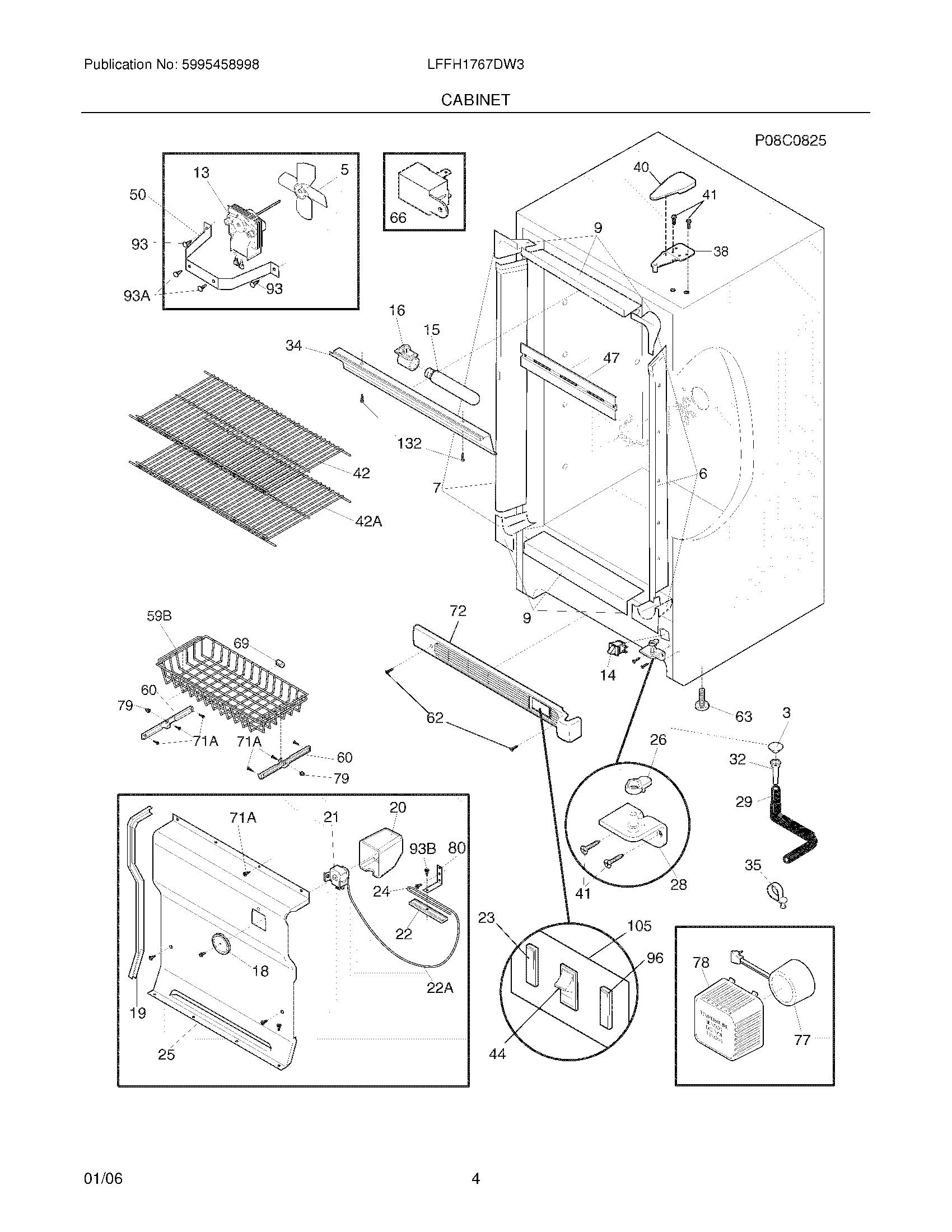

LFFH1767DW3 05 – CABINET

LFFH1767DW3 05 – CABINET

Written by

in

LFFH1767DW3 05 – CABINET

Products

PositionProduct
NI297001704 Frigidaire Refrigerator Insulation
NI216502400 Frigidaire Refrigerator Grommet Unit
NI216912401 Frigidaire Refrigerator Screw
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NIWCI 216910401
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 216604200
7WCI 216603700
9WCI 216603300
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19WCI 216204900
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22ATUBE
22CLAMP, CAP TUBE, COLD CONTROL
23WCI 5308002706
24SCREW, CLAMP, TRUSS HD CR, CONTROL
25WCI 216820200
26WCI 216503300
28WCI 216247400
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 216816223
35297315800 Frigidaire Refrigerator Clip
38WCI 216939100
40297164400 Frigidaire Refrigerator Hinge Cover
41Screw-hinge,12-24x.700 HWH
42WCI 216458200
42AWCI 216458400
44WCI 216823300
47297192903 Frigidaire Refrigerator Baffle
50WCI 216394000
59BWCI 216372800
60297013500 Frigidaire Refrigerator Slide
62131420300 Frigidaire Screw
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
66WCI 216713700
695305878546 Frigidaire Refrigerator Bumper-Basket
71A134178901 Frigidaire Screw
72WCI 297036902
77WCI 5308037992
78WCI 297013300
79301036 Frigidaire Refrigerator Insert Nut
80WCI 06594601
93B216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93A216629601 Frigidaire Refrigerator Screw
96WCI 08016772
105WCI 216926700
105WCI 216926600
132WCI 5303283898
