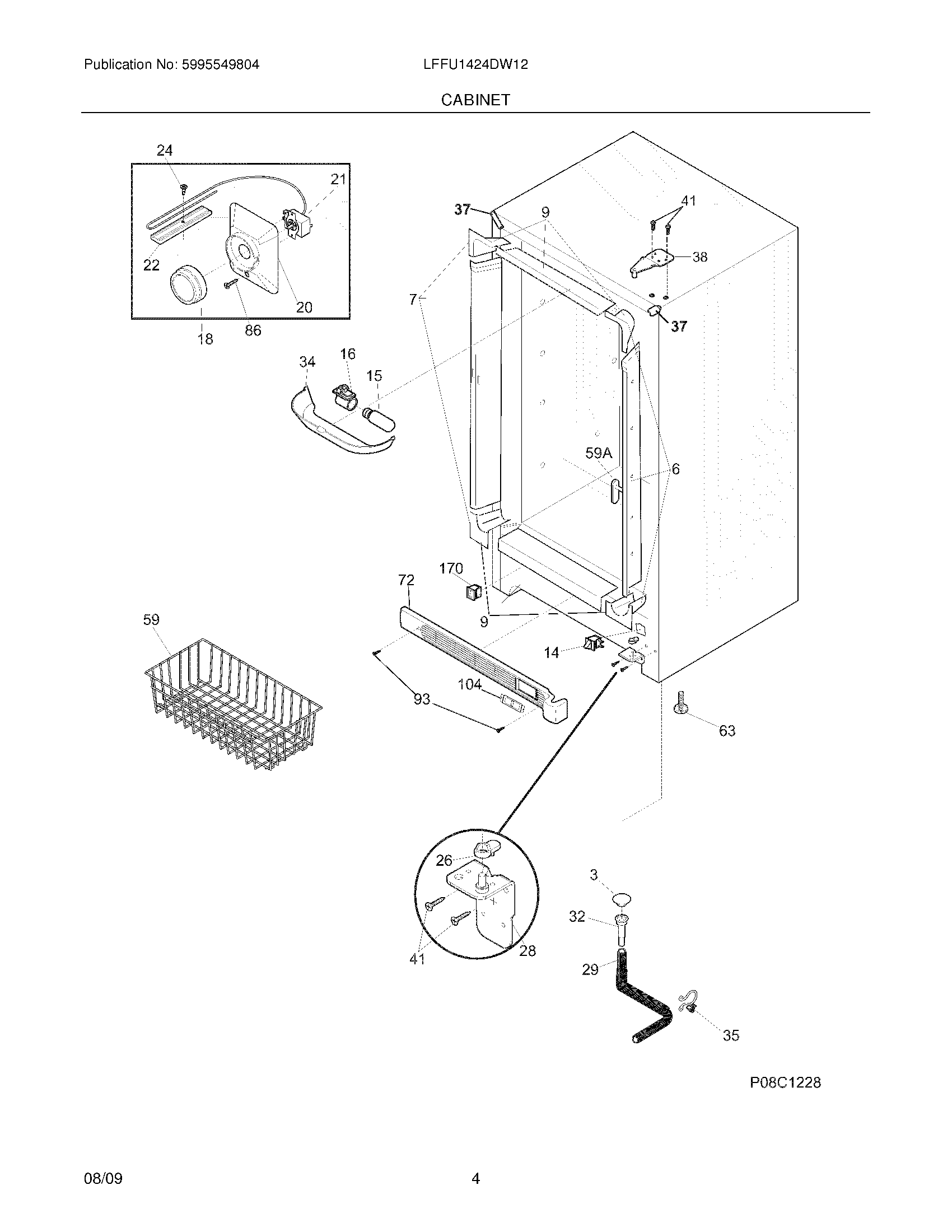

LFFU1424DW12 05 – CABINET

Products

Position	Product
NI	Bracket,LH leg levelor
NI	Bracket,RH leg levelor
NI	WCI 216794907
NI	297001704 Frigidaire Refrigerator Insulation
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
3	PLUG-DRAIN,EXTERIOR
6	WCI 297200300
7	WCI 297200500
9	WCI 297200200
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139500 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
20	COVER-CONTROL HOUSING
21	297216004 Frigidaire Refrigerator Thermostat Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
26	WCI 216503300
28	297283900 Frigidaire Refrigerator Hinge-Bottom
29	5304510363 Frigidaire Refrigerator Hose-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
35	216273000 Frigidaire Refrigerator Strap
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
41	240578902 Frigidaire Screw Mounting Hinge
59	WCI 297118300
59A	STOP-BASKET, (2)
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	WCI 297036802
86	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
104	WCI 216948401
104	WCI 216926700
170	297280400 Frigidaire Refrigerator Valve
