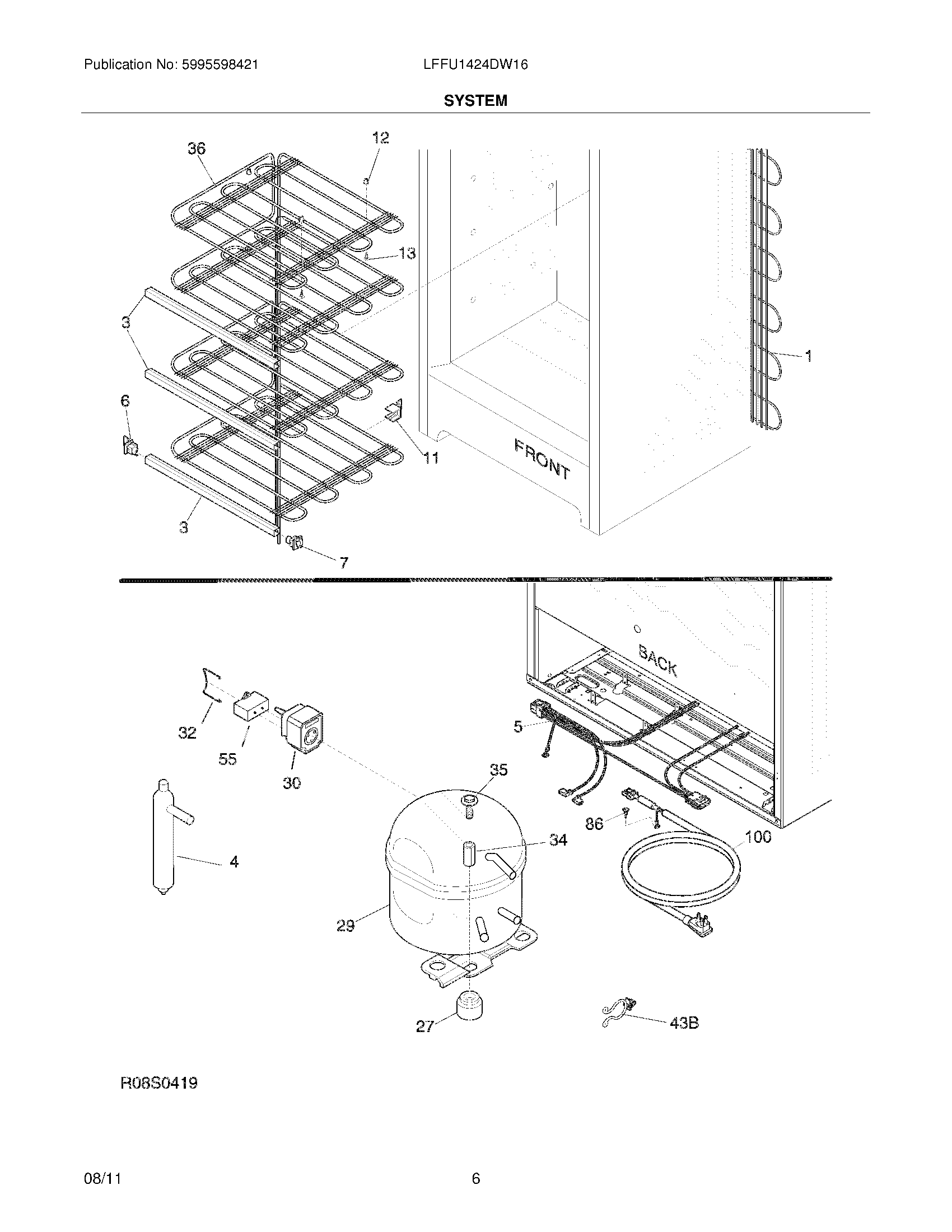

LFFU1424DW16 07 – SYSTEM

LFFU1424DW16 07 – SYSTEM

Written by

in

LFFU1424DW16 07 – SYSTEM

Products

PositionProduct
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIWCI 216502500
15300123788 Frigidaire Refrigerator Condenser
35304509722 Frigidaire Refrigerator Shelf
45303305677 Frigidaire Replacement Filter Dryer Filters
5297171900 Frigidaire Refrigerator Main Harness
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13SCREW, HEX SEMS, 8-18AB X 1.00, EVAP
27216498900 Frigidaire Refrigerator Grommet
295304507767 Frigidaire Refrigerator Compressor Kit
30216954200 Frigidaire Refrigerator Start Relay Device
32216954300 Frigidaire Refrigerator Clip
34SLEEVE-COMPRESSOR
35297368501 Frigidaire Bolt
36297234400 Frigidaire Refrigerator Evaporator
43B297315800 Frigidaire Refrigerator Clip
55Run Capacitor,10MF
86216036601 Frigidaire Refrigerator Screw
