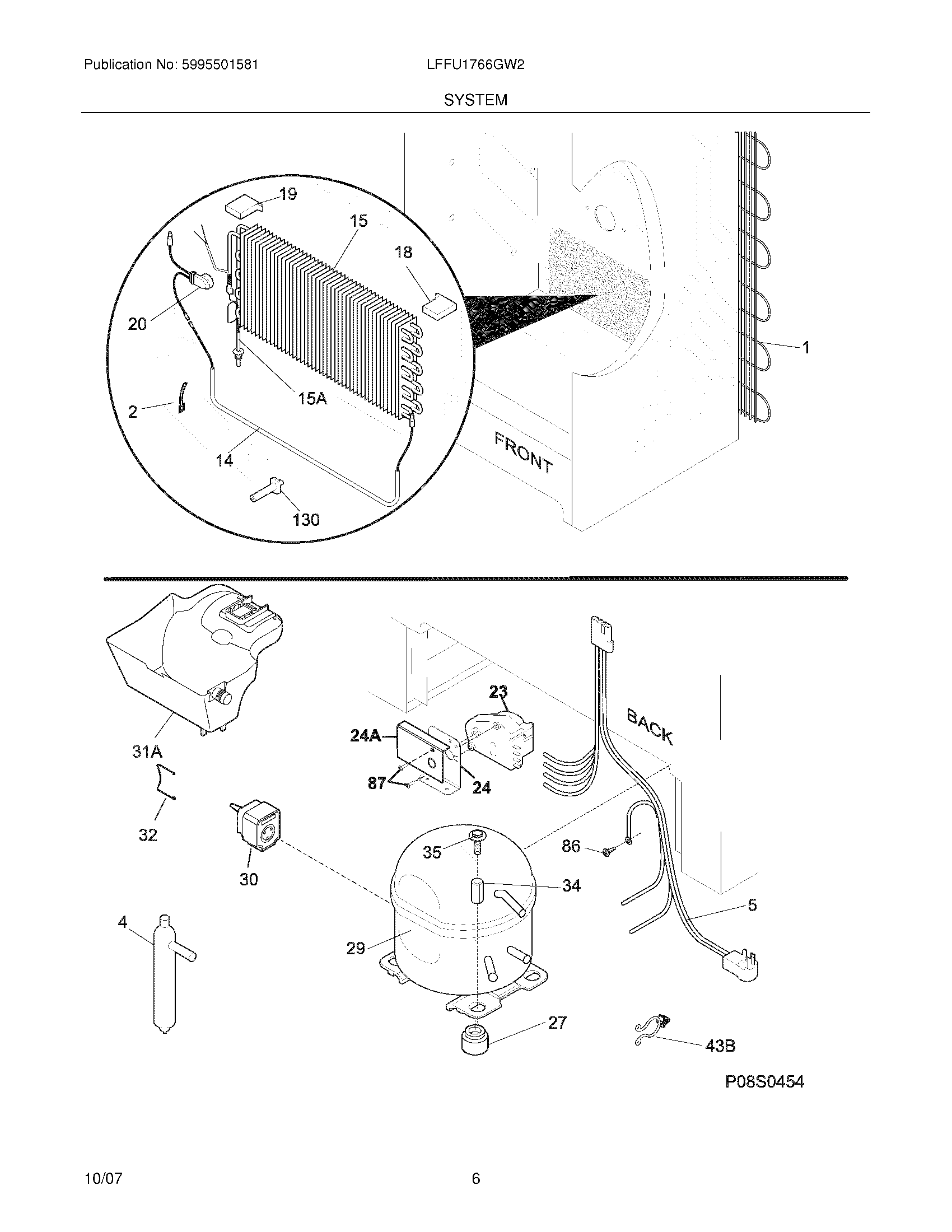

LFFU1766GW2 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
NI	297366805 Frigidaire Refrigerator Cord
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	297014702 Frigidaire Refrigerator Suction Line Plug
NI	WCI 297102800
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297170100
14	216730700 Frigidaire Refrigerator Defrost Heater
15A	216783200 Frigidaire Refrigerator P1-Heat Exchanger
15	297414901 Frigidaire Refrigerator Evaporator
18	WCI 297078700
19	WCI 297078800
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 216968501
24A	WCI 297207900
27	216498900 Frigidaire Refrigerator Grommet
29No.	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	297051003 Frigidaire Start Relay
32	CLAMP, ELEC CONT MTG, COMPRESSOR
34	SLEEVE-COMPRESSOR
35	WCI 5304460607
43B	297315800 Frigidaire Refrigerator Clip
86	216036601 Frigidaire Refrigerator Screw
87	216858001 Frigidaire Refrigerator Screw
130	297244700 Frigidaire Refrigerator Support
