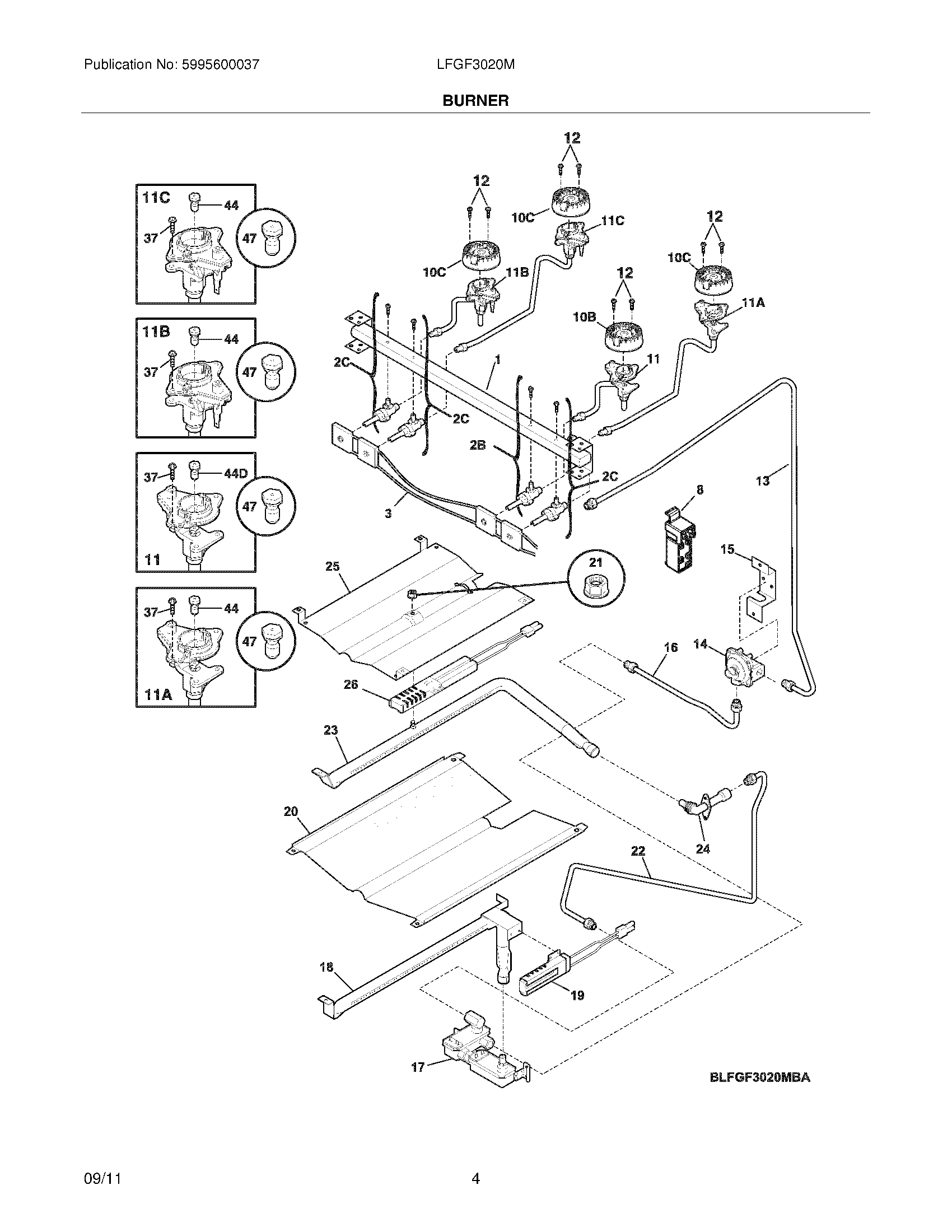

LFGF3020MBA 05 – BURNER

LFGF3020MBA 05 – BURNER

Written by

in

LFGF3020MBA 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI316498100 Frigidaire Shield
NI316417518 Frigidaire Instructions
NI316401500 Frigidaire Oven Cover
NI316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NI5304535516 Frigidaire Range Harness-Igniter
1316417900 Frigidaire Pipe Manifold
2B5303935306 Frigidaire Oven Valve
2C5303935305 Frigidaire Oven Valve
3316580611 Frigidaire Harness Igniters
8808608802 Frigidaire Oven Spark Ignition Four Pole
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438000 Frigidaire Sealed Burner 12K Assembly
11A316536600 Frigidaire Igniter Assembly
11316536608 Frigidaire Orifice Igniter Assembly
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404304 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
25WCI 316401301
265304506545 Frigidaire Gas Oven Range Igniter
37316240600 Frigidaire Igniter Mounting Screw
44316527500 Frigidaire Oven Burner Orifice
44D316527502 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
