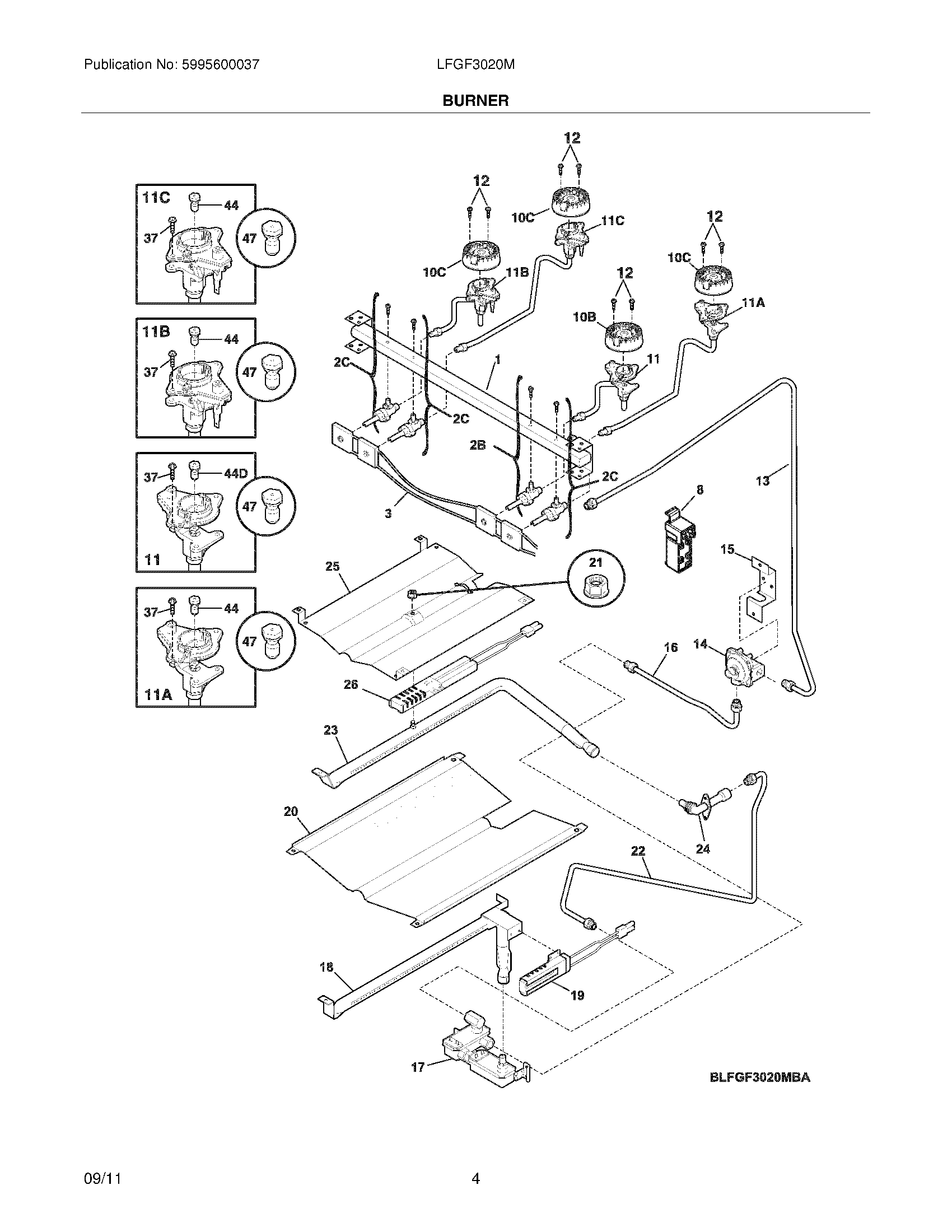

LFGF3020MWA 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NI	316498100 Frigidaire Shield
NI	316417518 Frigidaire Instructions
NI	316401500 Frigidaire Oven Cover
NI	316257400 Frigidaire Oven Bracket
NI	316021105 Frigidaire Oven Screw
NI	316215600 Frigidaire Oven Screw
NI	5304535516 Frigidaire Range Harness-Igniter
1	316417900 Frigidaire Pipe Manifold
2B	5303935306 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
3	316580611 Frigidaire Harness Igniters
8	808608802 Frigidaire Oven Spark Ignition Four Pole
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438000 Frigidaire Sealed Burner 12K Assembly
11A	316536600 Frigidaire Igniter Assembly
11	316536608 Frigidaire Orifice Igniter Assembly
11B	316536602 Frigidaire Oven Igniter/Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	316489100 Frigidaire Oven Tube
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	BAKE IGNITOR
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	316404304 Frigidaire Oven Burner
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	5304506545 Frigidaire Gas Oven Range Igniter
37	316240600 Frigidaire Igniter Mounting Screw
44	316527500 Frigidaire Oven Burner Orifice
44D	316527502 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
