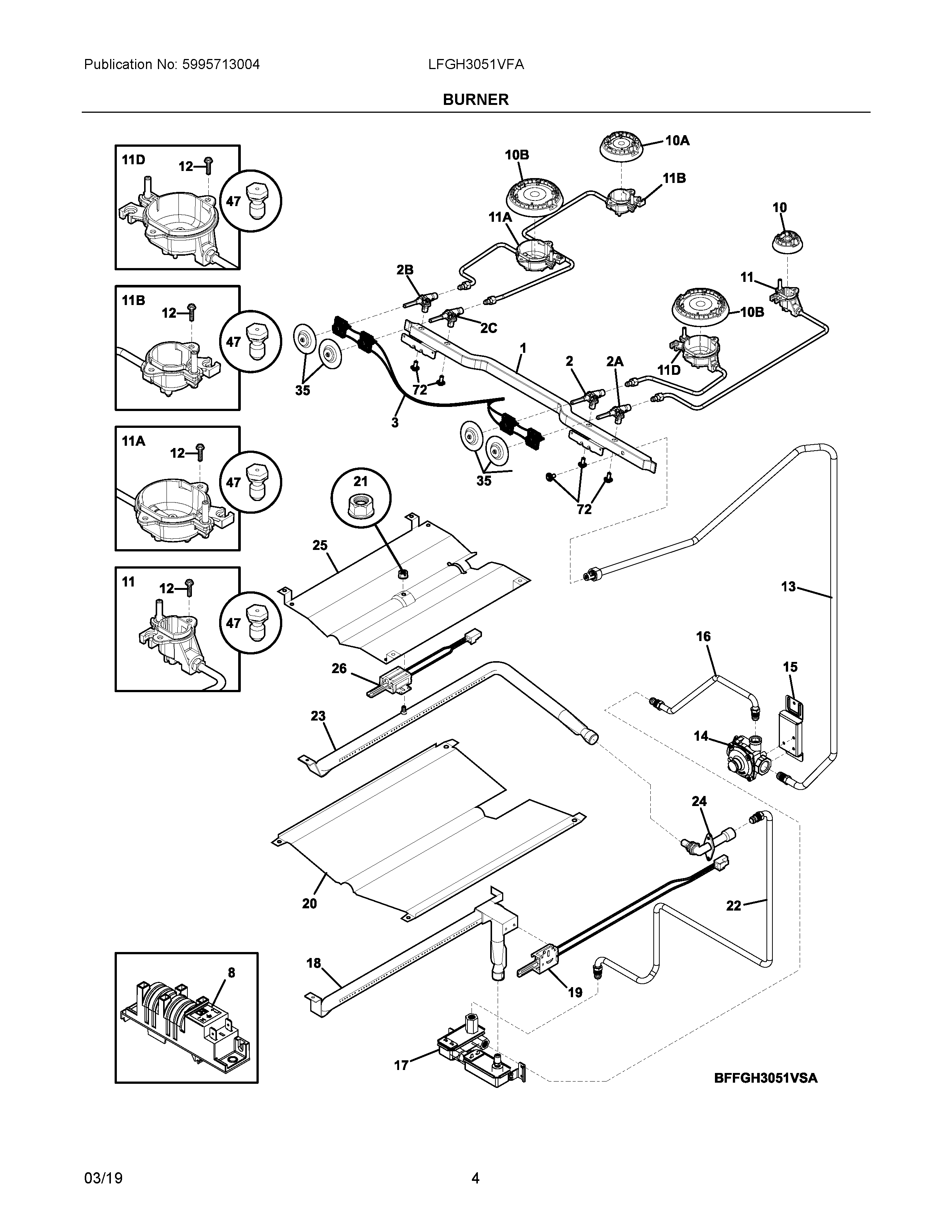

LFGH3051VFA 03 – BURNER

LFGH3051VFA 03 – BURNER

Written by

in

LFGH3051VFA 03 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316089500 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NIA316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NI316021105 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
1MANIFOLD
2C5304506548 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
35304528831 Frigidaire Ignition Harness
8808608802 Frigidaire Oven Spark Ignition Four Pole
105304520367 Frigidaire Oven Burner
10A5304520368 Frigidaire Oven Burner Assembly
10B5304520369 Frigidaire Oven Gas Burner
11D5304520387 Frigidaire Igniter/Orifice Assembly
115304520386 Frigidaire Igniter/Orifice Assembly
11B5304520385 Frigidaire Igniter/Orifice Assembly
11A5304520384 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
135304514135 Frigidaire Oven Bake Tube
14316091711 Frigidaire Regulator Assembly
15316603300 Frigidaire Bracket
165304514182 Frigidaire Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304514183 Frigidaire Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
355304508440 Frigidaire Bushing
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
