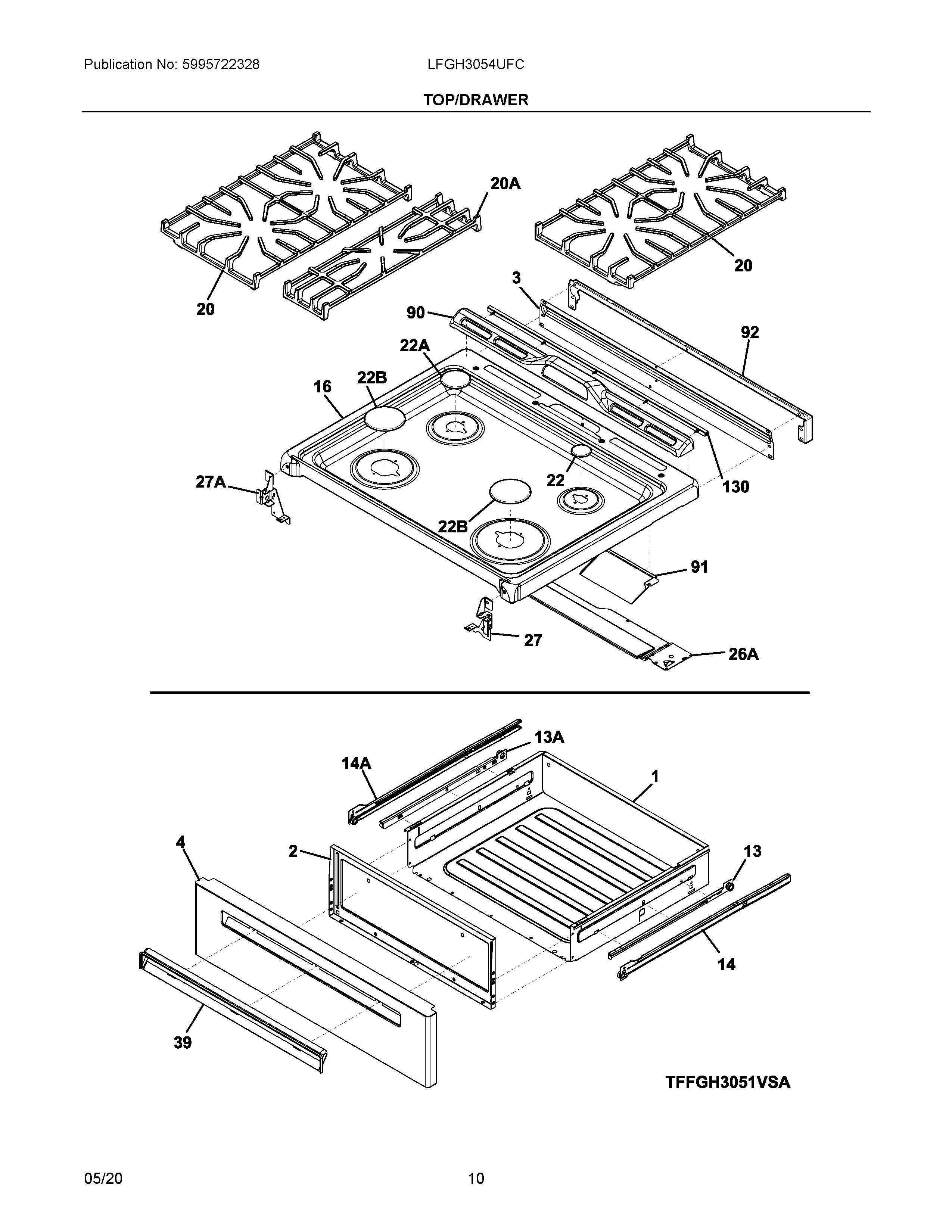

LFGH3054UFC 05 – TOP/DRAWER

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527988 Frigidaire Liner
3	5304514133 Frigidaire Oven Shield
4	5304514335 Frigidaire Oven Panel
13A	5304517903 Frigidaire Oven Glide Drawer
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
16	5304520919 Frigidaire Oven Maintop
20	5304518358 Frigidaire Oven Burner Grate
20A	5304518359 Frigidaire Oven Grate
22B	5304520372 Frigidaire Oven Surface Burner Cap Assembly
22A	5304520371 Frigidaire Oven Surface Burner Cap
22	5304520370 Frigidaire Oven Surface Burner Cap
26A	BRACKET, SUPPORT, REAR, CHASSIS
27	5304514123 Frigidaire Bracket
27A	5304514124 Frigidaire Bracket
39A	5304511879 Frigidaire Handle Insert
39	HANDLE-DOOR SS 30IN
90	5304514122 Frigidaire Oven Trim
91	5304514181 Frigidaire Deflector Assembly
92	5304520261 Frigidaire Rear Filler Kit
130	808931802 Frigidaire Oven Seal
