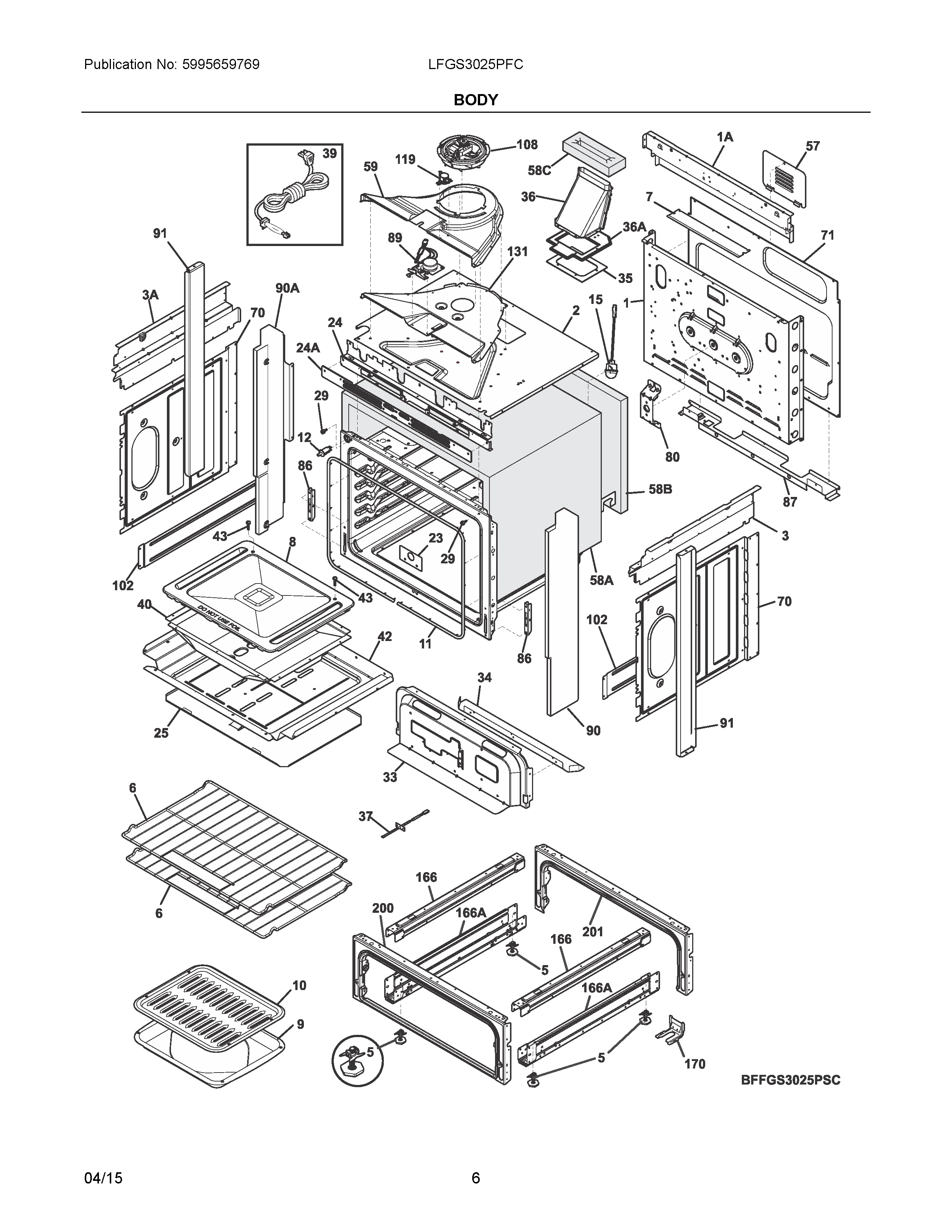

LFGS3025PFC 04 – BODY

LFGS3025PFC 04 – BODY

Written by

in

LFGS3025PFC 04 – BODY

Products

PositionProduct
NI5304497401 Frigidaire Oven Harness
NI808041201 Frigidaire Oven Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI807597603 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIA318531701 Frigidaire Spacer
NIA316001017 Frigidaire Screw
NI316021105 Frigidaire Oven Screw
NIB5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA316116000 Frigidaire Screw
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139078201 Frigidaire Shield
3AWCI 318225231
3WCI 318225230
5Screw,leveling ,w/tee nut
6WCI 139011800
8139005002 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
23139004500 Frigidaire Cover
24139074902 Frigidaire Vent Trim Frame
24A139075001 Frigidaire Oven Cover
25318291900 Frigidaire Bracket Assembly
29316517600 Frigidaire Oven Spacer
33WCI 318287800
34318289402 Frigidaire Panel
35318291300 Frigidaire Oven Seal
36A139008301 Frigidaire Support
36139004402 Frigidaire BOX
37SENSOR
395304534000 Frigidaire Cord
40139004700 Frigidaire Oven Box
42139004800 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
57316283600 Frigidaire Oven Cover
58C318594401 Frigidaire Insulation
58AINSULATION, WRAPPER, TOP & SIDES
58BWCI 139011000
59139078002 Frigidaire Oven Duct
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
86318561100 Frigidaire Receptacle
87WCI 318260624
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
91WCI 5304500329
102139004100 Frigidaire PANEL
108318575612 Frigidaire Oven Cooling Fan Motor
119807144901 Frigidaire Thermostat
131139078102 Frigidaire Oven Duct
166AWCI 318298403
166318298410 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
200WCI 318335600
201318298233 Frigidaire Oven Frame
