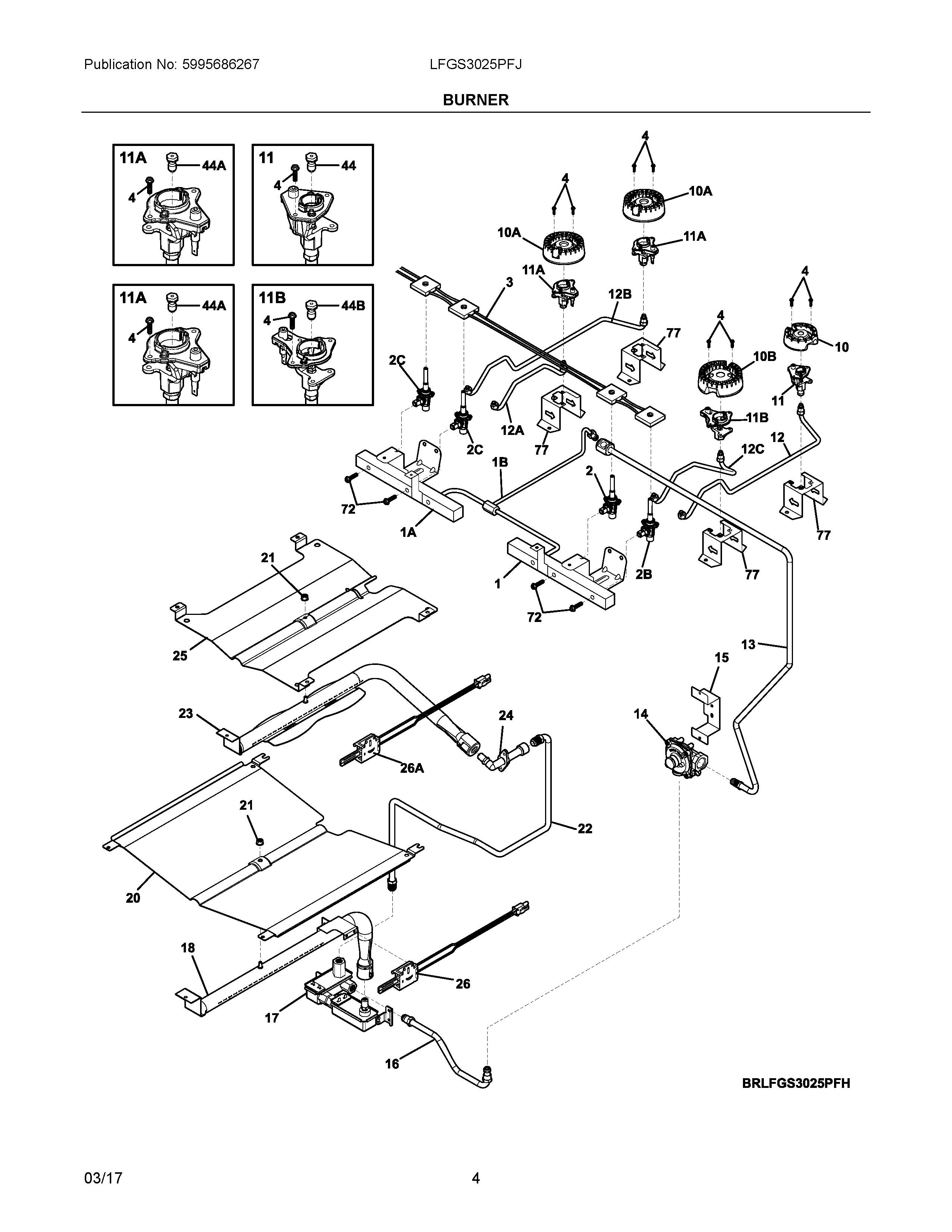

LFGS3025PFJ 03 – BURNER

LFGS3025PFJ 03 – BURNER

Written by

in

LFGS3025PFJ 03 – BURNER

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NI318565404 Frigidaire Conversion Kit
NI318199776 Frigidaire Electrical Harness
NI808041201 Frigidaire Oven Harness
NI316021109 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021105 Frigidaire Oven Screw
1318305600 Frigidaire Oven Manifold
1B318305410 Frigidaire Oven Tube
1AWCI 318305601
25304507290 Frigidaire Oven Valve
2C5304507285 Frigidaire Oven Valve
2B5304507286 Frigidaire Valve
35304509745 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11316540800 Frigidaire Igniter/Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
12BWCI 318916601
12CWCI 318916701
12A318916501 Frigidaire Tube
12318916801 Frigidaire Tube
135304496152 Frigidaire Tube
145304521339 Frigidaire Regulator
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26139013700 Frigidaire Igniter
26A139013701 Frigidaire Igniter
44A316527500 Frigidaire Oven Burner Orifice
44B316527513 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77WCI 318920300
