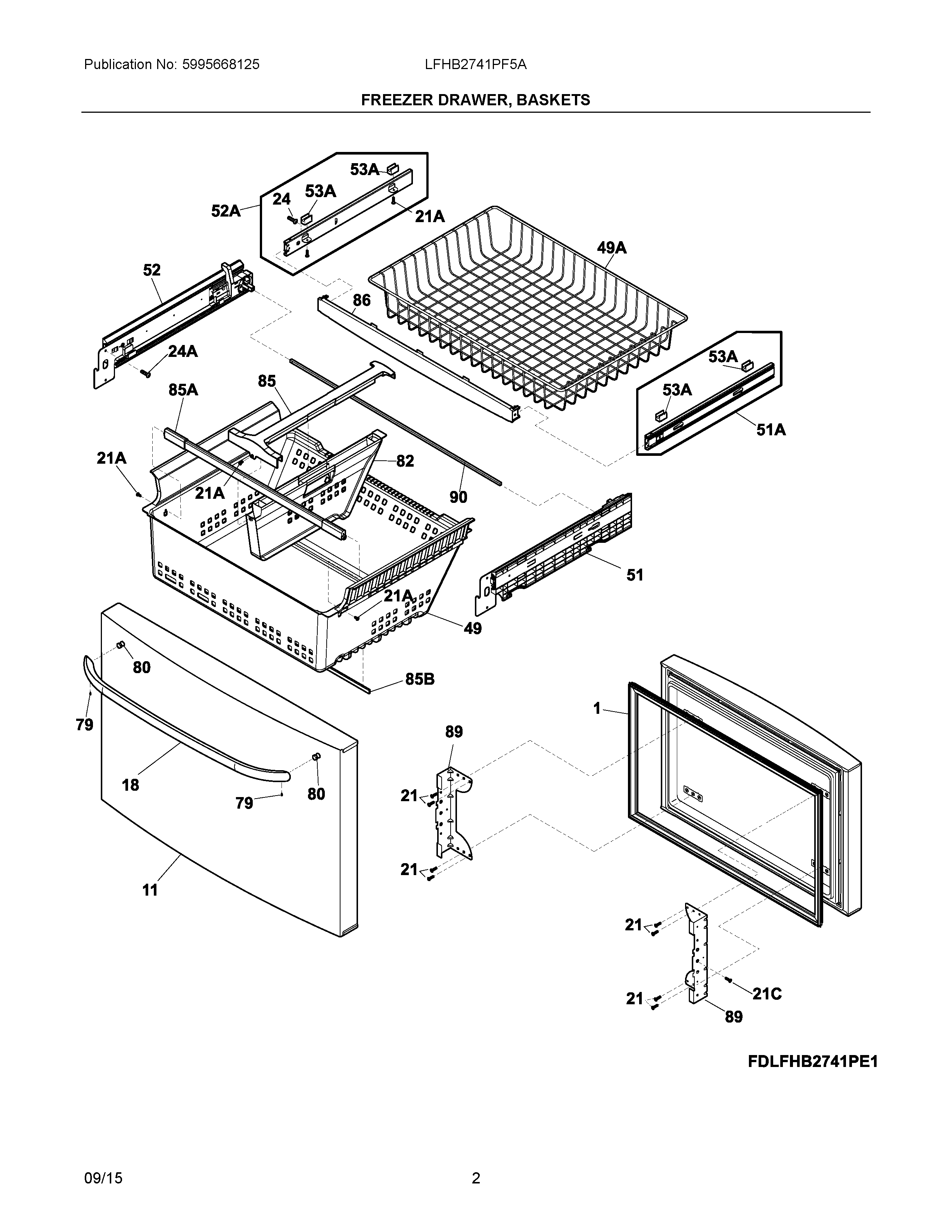

LFHB2741PF5A 02 – FREEZER DRAWER, BASKETS

LFHB2741PF5A 02 – FREEZER DRAWER, BASKETS

Written by

in

LFHB2741PF5A 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242039701 Frigidaire Refrigerator Screw
NI242015001 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA242039702 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA5304467131 Frigidaire Refrigerator Wrench
NIA5304497384 Frigidaire Refrigerator Plate
NIB241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11241987936 Frigidaire Freezer Door Assembly
18242090501 Frigidaire Stainless Steel Door Handle
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21C241899703 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49A241780810 Frigidaire Refrigerator Basket-Frzr
495303918736 Frigidaire Refrigerator Lower Basket Kit
515303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
51A241894223 Frigidaire Drawer Slide Rail, Right
52A241894224 Frigidaire Refrigerator Slide Assembly
52WCI 242130507
52ASLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82WCI 242168701
85242130901 Frigidaire Refrigerator Divider
85BWCI 241872204
85AWCI 242168501
86WCI 242090701
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90WCI 242136903
