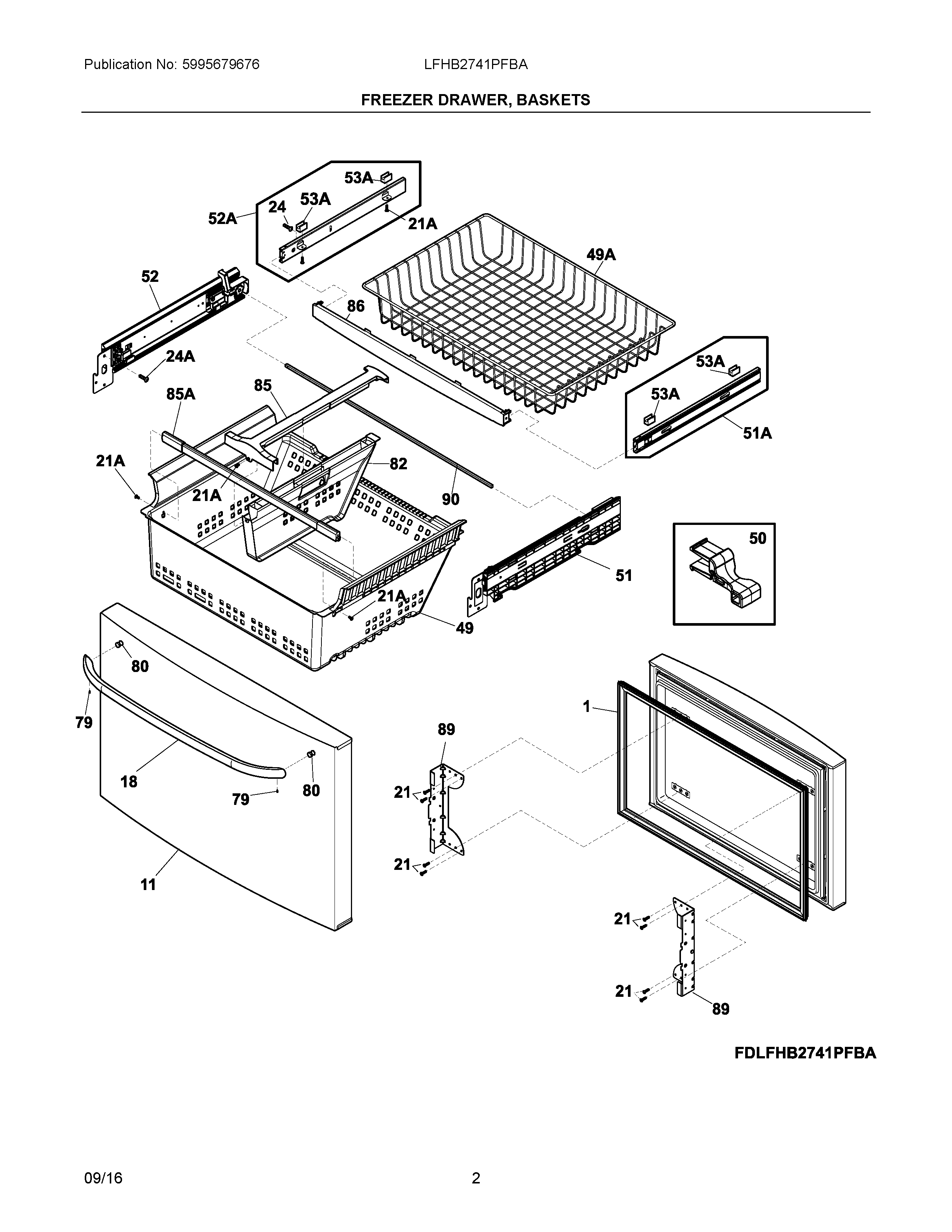

LFHB2741PFBA 02 – FREEZER DRAWER, BASKETS

LFHB2741PFBA 02 – FREEZER DRAWER, BASKETS

Written by

in

LFHB2741PFBA 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242139201 Frigidaire Compression Spring
NI242146401 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NIA241953908 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA242039702 Frigidaire Refrigerator Screw
NIA5304467131 Frigidaire Refrigerator Wrench
NIAA242039701 Frigidaire Refrigerator Screw
NIA241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI242015001 Frigidaire Refrigerator Screw
1GASKET
11241987936 Frigidaire Freezer Door Assembly
18242090501 Frigidaire Stainless Steel Door Handle
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
495304525892 Frigidaire Refrigerator Freezer Basket
49A241780810 Frigidaire Refrigerator Basket-Frzr
505304501271 Frigidaire Shelf Clip
51A241894229 Frigidaire Refrigerator Assembly Slide
515303918727 Frigidaire Refrigerator Slide Assembly
52A241894230 Frigidaire Refrigerator Slide Assembly
525303918726 Frigidaire Refrigerator Assembly Slide
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
