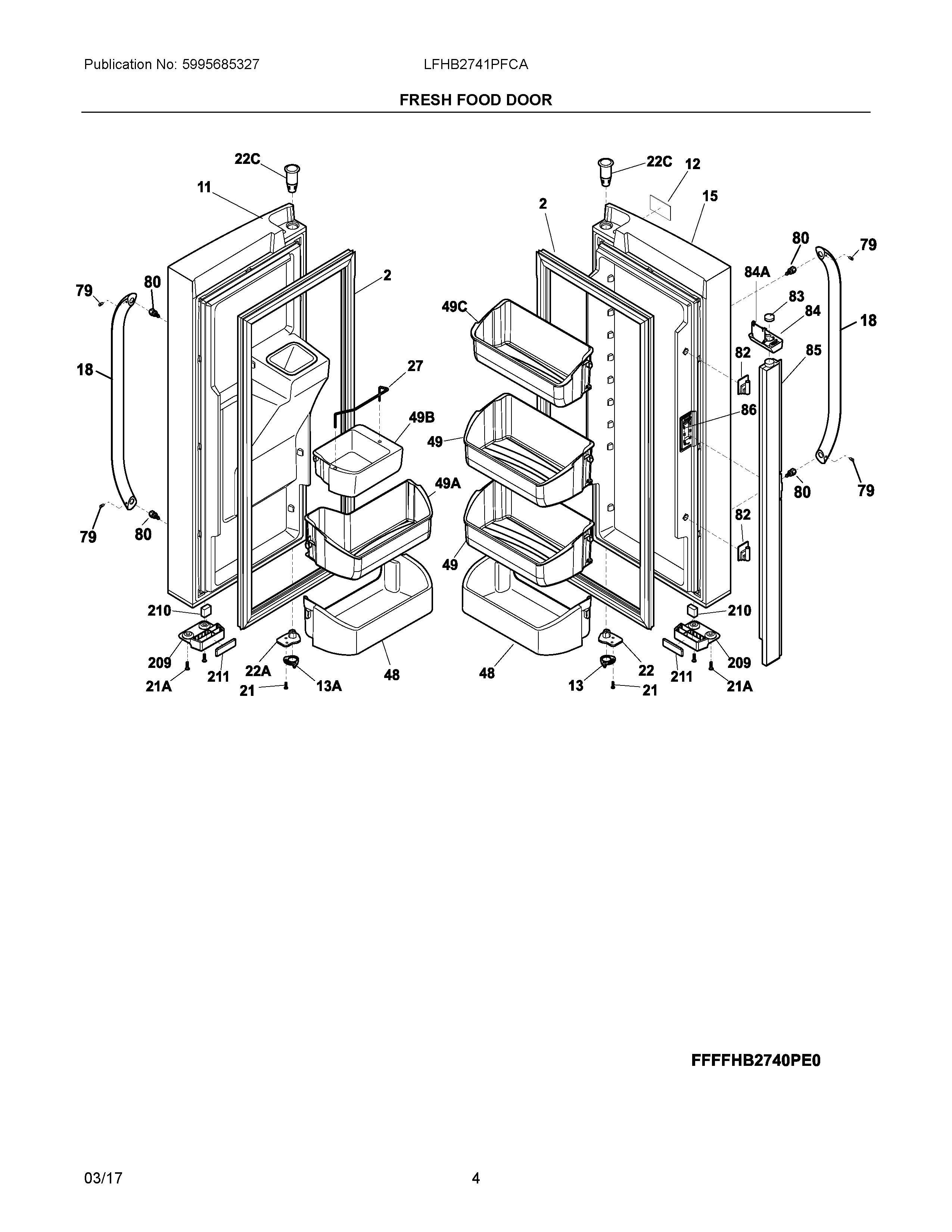

LFHB2741PFCA 03 – FRESH FOOD DOOR

Products

Position	Product
NIB	5304520993 Frigidaire Refrigerator Harness-Mullion
NI	241806601 Frigidaire Refrigerator Water Connector
NI	5304521784 Frigidaire Refrigerator Harness
NI	5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NIA	242068601 Frigidaire Refrigerator Bumper
NIC	240451503 Frigidaire Refrigerator Screw
NIA	5304467131 Frigidaire Refrigerator Wrench
NIA	5304453707 Frigidaire Oven Screw
NI	242015001 Frigidaire Refrigerator Screw
NIA	241701902 Frigidaire Refrigerator 3/32" Screwdriver
2	GASKET-DR
11	DOOR-REFR, STAINLESS, W/DISP
12	242016301 Frigidaire Refrigerator Nameplate
13A	241868402 Frigidaire Refrigerator Door Stop
13	241868401 Frigidaire Refrigerator Door Stop
15	DOOR-REFR, STAINLESS
18	WCI 242059301
21	242017501 Frigidaire Refrigerator Screw
22	CAM, UPPER HINGE, RH
22A	242075602 Frigidaire Refrigerator Cam
22C	241760401 Frigidaire Refrigerator Bearing
27	241752703 Frigidaire Refrigerator Retainer
48	242071401 Frigidaire Refrigerator Door Shelf Bin White
49B	242011701 Frigidaire Bin Shelf Door
49C	242079901 Frigidaire Refrigerator Door Bin
49	242079701 Frigidaire Refrigerator Door Bin
49A	242071301 Frigidaire Refrigerator Clear Door Bin
79	218755402 Frigidaire Refrigerator Set Screw
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812202 Frigidaire Refrigerator Magnet
84	808274201 Frigidaire Door Guide Assembly
84A	242190501 Frigidaire Refrigerator Mullion Assembly
85	241778811 Frigidaire Refrigerator Flipper Mullion Assembly
86	241779802 Frigidaire Door Hinge Mullion Flipper
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
