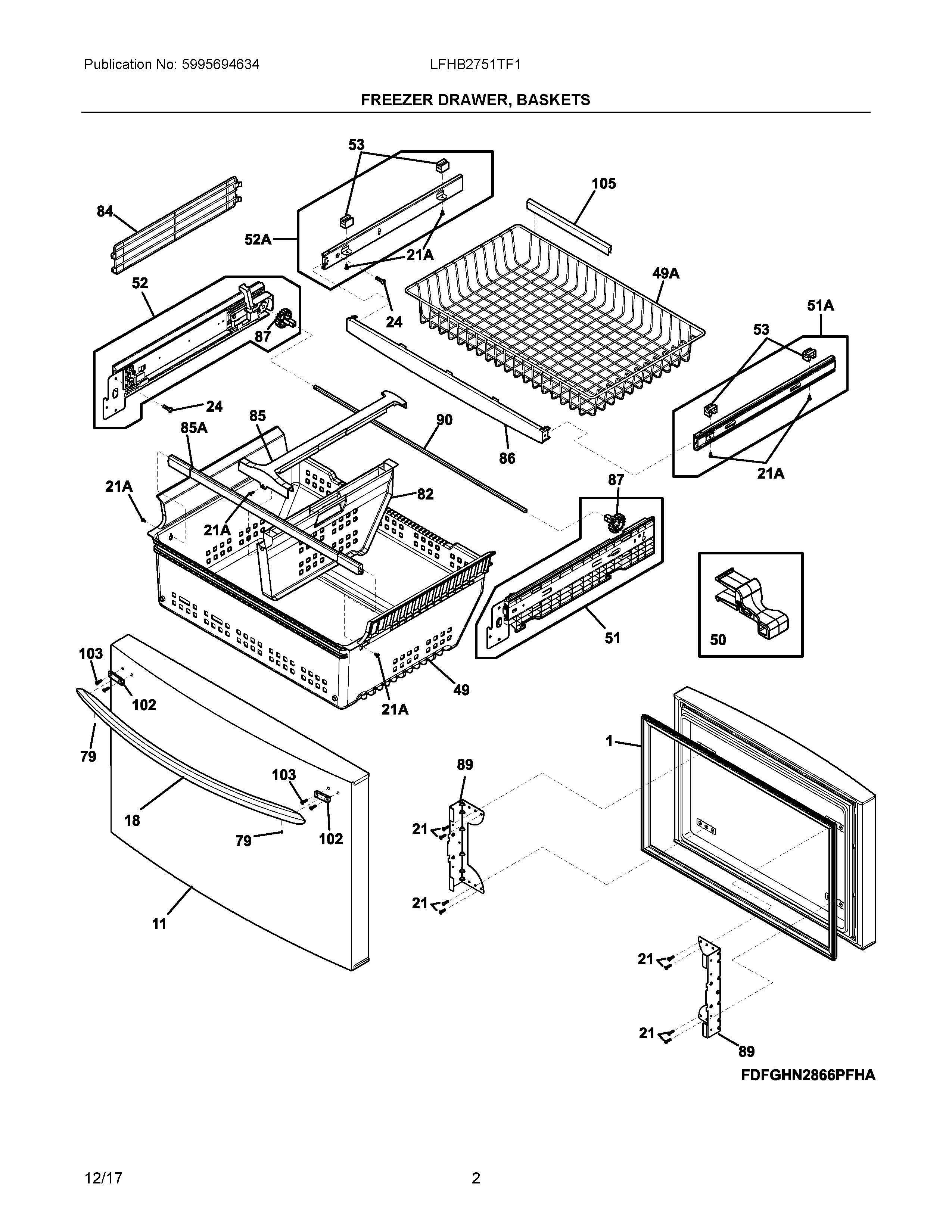

LFHB2751TF1 02 – FREEZER DRAWER, BASKETS

LFHB2751TF1 02 – FREEZER DRAWER, BASKETS

Written by

in

LFHB2751TF1 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA5304508270 Frigidaire Wrench
NIAA242039701 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11241987944 Frigidaire Refrigerator Drawer
185304510339 Frigidaire Refrigerator Freezer Door Handle
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
49A241780810 Frigidaire Refrigerator Basket-Frzr
495304525892 Frigidaire Refrigerator Freezer Basket
505304501271 Frigidaire Shelf Clip
515304507978 Frigidaire Refrigerator Slide Assembly
51A5304508096 Frigidaire Refrigerator Slide Assembly
52A5304508097 Frigidaire Refrigerator Slide Assembly
525304507979 Frigidaire Refrigerator Slide Assembly
535303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
875304507999 Frigidaire Refrigerator Pinion
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
