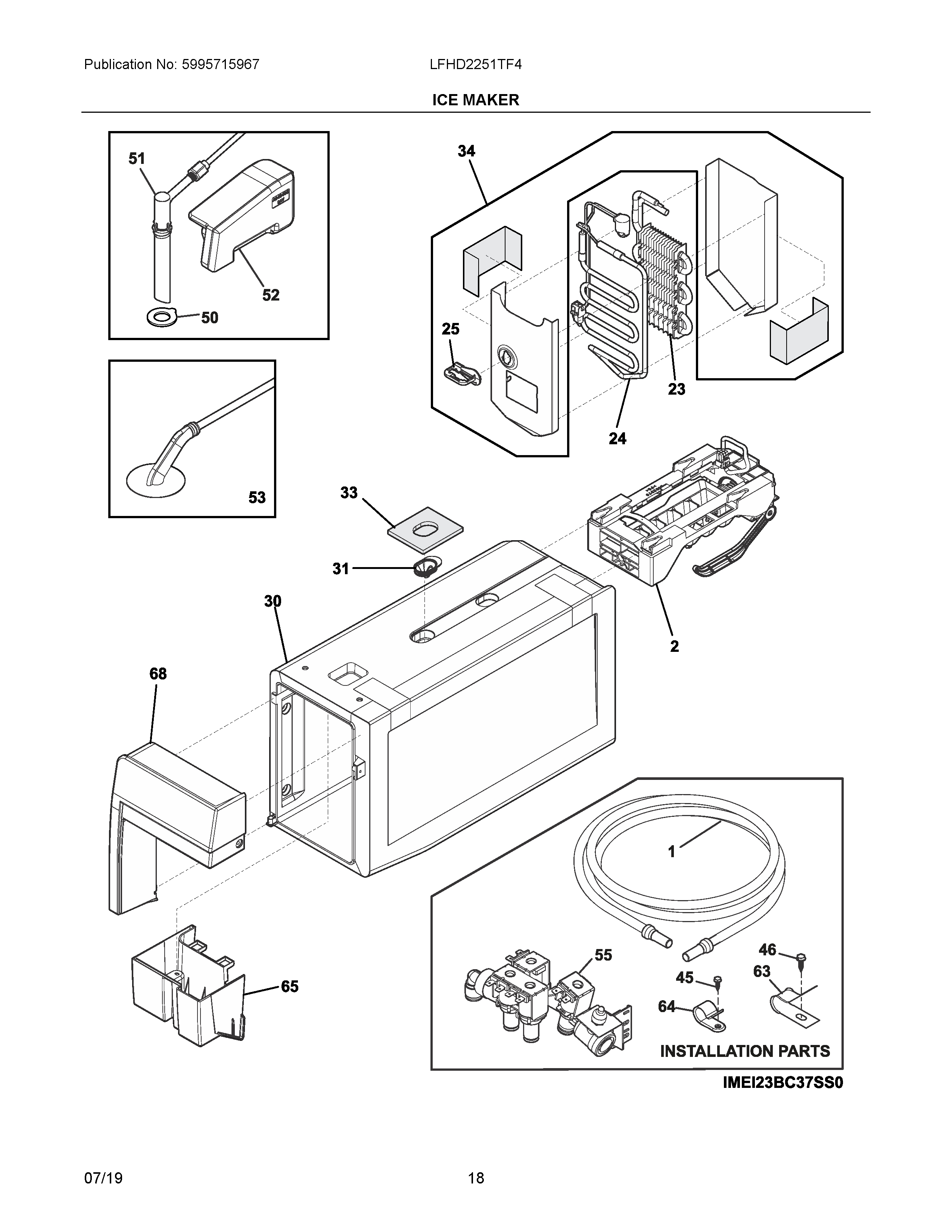

LFHD2251TF4 09 – ICE MAKER

Products

Position	Product
NIA	241953902 Frigidaire Refrigerator Screw
NIB	242096001 Frigidaire Refrigerator Insulation
NIA	5304521762 Frigidaire Refrigerator Electrical Harness
NIA	241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIA	241695906 Frigidaire Screw
NIB	242200102 Frigidaire Refrigerator Clip
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NIA	242015001 Frigidaire Refrigerator Screw
NIC	242220204 Frigidaire Water Inlet Tube
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	218515401 Frigidaire Refrigerator Clip
1	241964707 Frigidaire Refrigerator Water Tube
2	243297613 Frigidaire Refrigerator Ice Maker
23	242094701 Frigidaire Refrigerator Evaporator
24	242094804 Frigidaire Refrigerator Defrost Heater
25	5304508037 Frigidaire Refrigerator Connector
30	242142204 Frigidaire Refrigerator Cover
31	241844403 Frigidaire Refrigerator Tube
33	5303918784 Frigidaire Refrigerator Air Handler Housing
34	5303918779 Frigidaire Refrigerator Housing Kit
45	5304455650 Frigidaire Refrigerator Screw
46	5303307980 Frigidaire Oven Screw
50	241512813 Frigidaire Seal Doughnut
51	5303918602 Frigidaire Refrigerator Water Tube Kit
52	5304508046 Frigidaire Refrigerator Insulation
53	241920106 Frigidaire Fill Tube Kit
55	QUAD WATER VALVE
63	5304455846 Frigidaire Refrigerator Clamp
64	240396801 Frigidaire Refrigerator Tube Clamp
65	808462601 Frigidaire Refrigerator Cover
68	242095002 Frigidaire Refrigerator Cover
