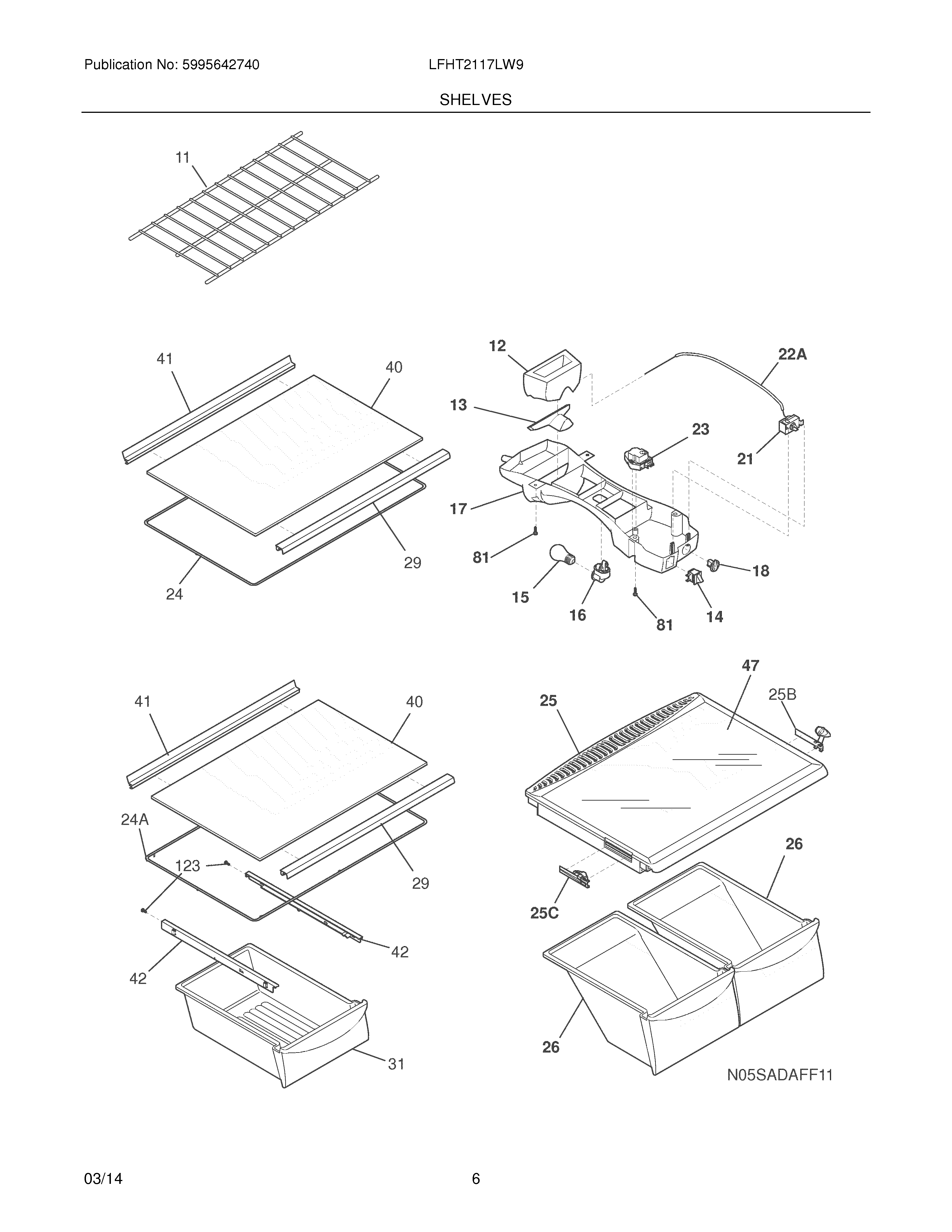

LFHT2117LW9 07 – SHELVES

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	241705801 Frigidaire Refrigerator Shelf Spacer
NI	5303299664 Frigidaire Refrigerator Spacer-Shelf
NI	WCI 242028582
NI	5304535377 Frigidaire Aluminum Tape
NI	240388701 Frigidaire Refrigerator Wiring Harness
11	5304530262 Frigidaire Refrigerator Shelf
12	240545901 Frigidaire Refrigerator Air Diffuser
13	240362601 Frigidaire Refrigerator P1 Diffuser
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	240368105 Frigidaire Refrigerator Control Box
18	Knob-control
21	241537103 Frigidaire Refrigerator Temperature Control Thermostat
22A	240468202 Frigidaire Refrigerator Tube
23	215846604 Frigidaire Refrigerator Defrost Timer
24A	240372408 Frigidaire Refrigerator Shelf Frame Without Glass
24	WCI 240372407
25C	241613502 Frigidaire Refrigerator Humidity Control Crisper Drawer
25B	241613501 Frigidaire Refrigerator Humidity Control Crisper Drawer
25	COVER-CRISPER PAN
26	CRISPER PAN
29	240357704 Frigidaire Refrigerator Front Shelf Trim
31	MEAT PAN
40	240350621 Frigidaire Refrigerator Glass Shelf
41	240561502 Frigidaire Rear Shelf Trim
42	240530701 Frigidaire Refrigerator Right Meat Pan Hanger Track
42	240530601 LH MEAT PAN HANGER
47	240350609 Frigidaire Refrigerator Crisper Cover Glass Shelf Insert
81	5304455650 Frigidaire Refrigerator Screw
123	215005101 Frigidaire Refrigerator Screw
