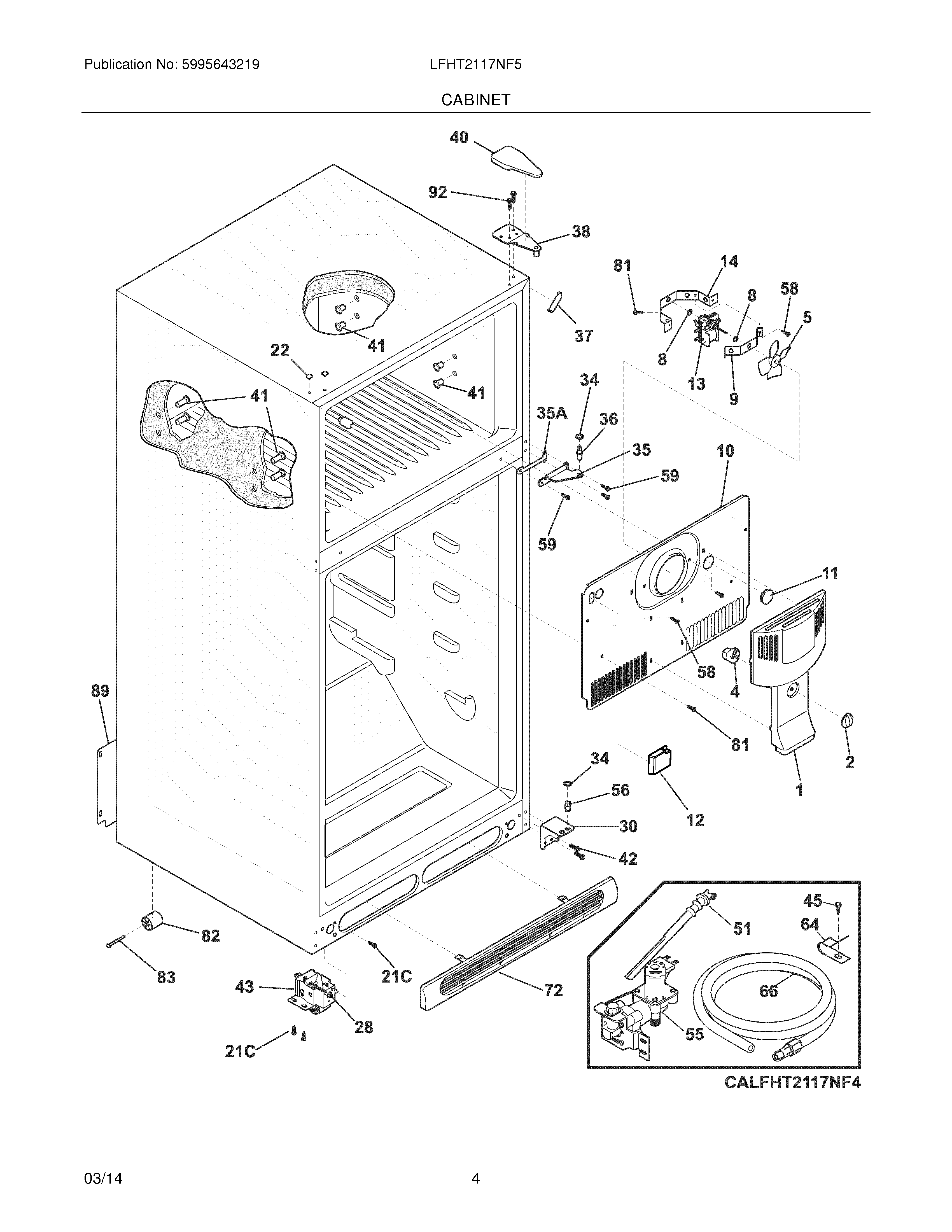

LFHT2117NF5 05 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	218843801 Frigidaire Refrigerator Screw
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	240561701 Frigidaire Refrigerator Seal
NI	240568606 Frigidaire Refrigerator Coil Cover Seal
NI	215474201 Frigidaire Refrigerator Washer
NI	241500303 Frigidaire Refrigerator Screw
1	WCI 240355407
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	WCI 240313614
11	5303208309 Frigidaire Refrigerator Plug Hole
12	242210102 Frigidaire Refrigerator Cover
13	241854401 Frigidaire Refrigerator Fan Motor
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A	240336803 Frigidaire Refrigerator Hinge Spacer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240313703 Frigidaire Refrigerator Hinge
40	240354404 Frigidaire Refrigerator Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	5304455650 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	ICE MAKER WATER VALVE
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
64	5304455846 Frigidaire Refrigerator Clamp
66	241850615 Frigidaire Ice Maker Fill Tube Assembly
72	241839407 Frigidaire Refrigerator Kickplate/Grille
81	240433204 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
