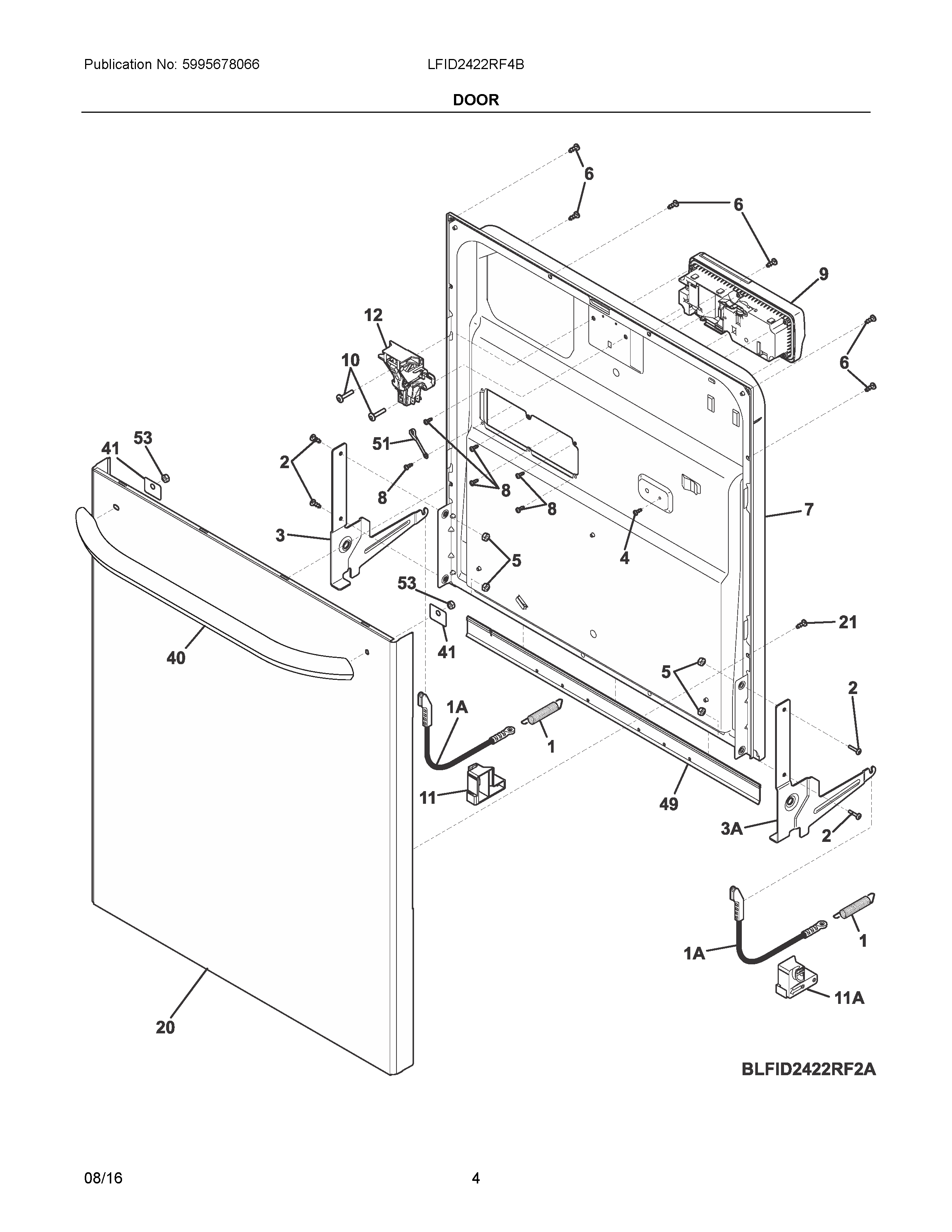

LFID2422RF4B 03 – DOOR

Products

Position	Product
NIA	5304525214 Frigidaire Dishwasher Shield
NI	154686401 Frigidaire Dishwasher Bearing
NI	154647101 Frigidaire Dishwasher Pin Hinge
NIA	INSULATION,DOOR
1	154579101 Frigidaire Dishwasher Door Spring
1A	154756401 Frigidaire Hinge Cable
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
4	808326801 Frigidaire Dishwasher Screw
5	5303013272 Frigidaire Oven Nut
6	154783101 Frigidaire Dishwasher Screw
7	5304502917 Frigidaire Dishwasher Liner Assembly
8	154294701 Frigidaire Dishwasher Screw
9	5304506521 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
11A	154579202 Frigidaire Dishwasher Pulley
11	154579201 Frigidaire Dishwasher Pulley
12	5304525218 Frigidaire Door Latch Assembly
20	Door Assembly,w/insullation ,stainless
21	154754701 Frigidaire Dishwasher Screw
40	WCI 5304501039
41	154603401 Frigidaire Dishwasher Plate Assembly
49	5304500204 Frigidaire Gasket Bottom Door Seal
51	WCI 154320301
53	154425001 Frigidaire Dishwasher Nut
