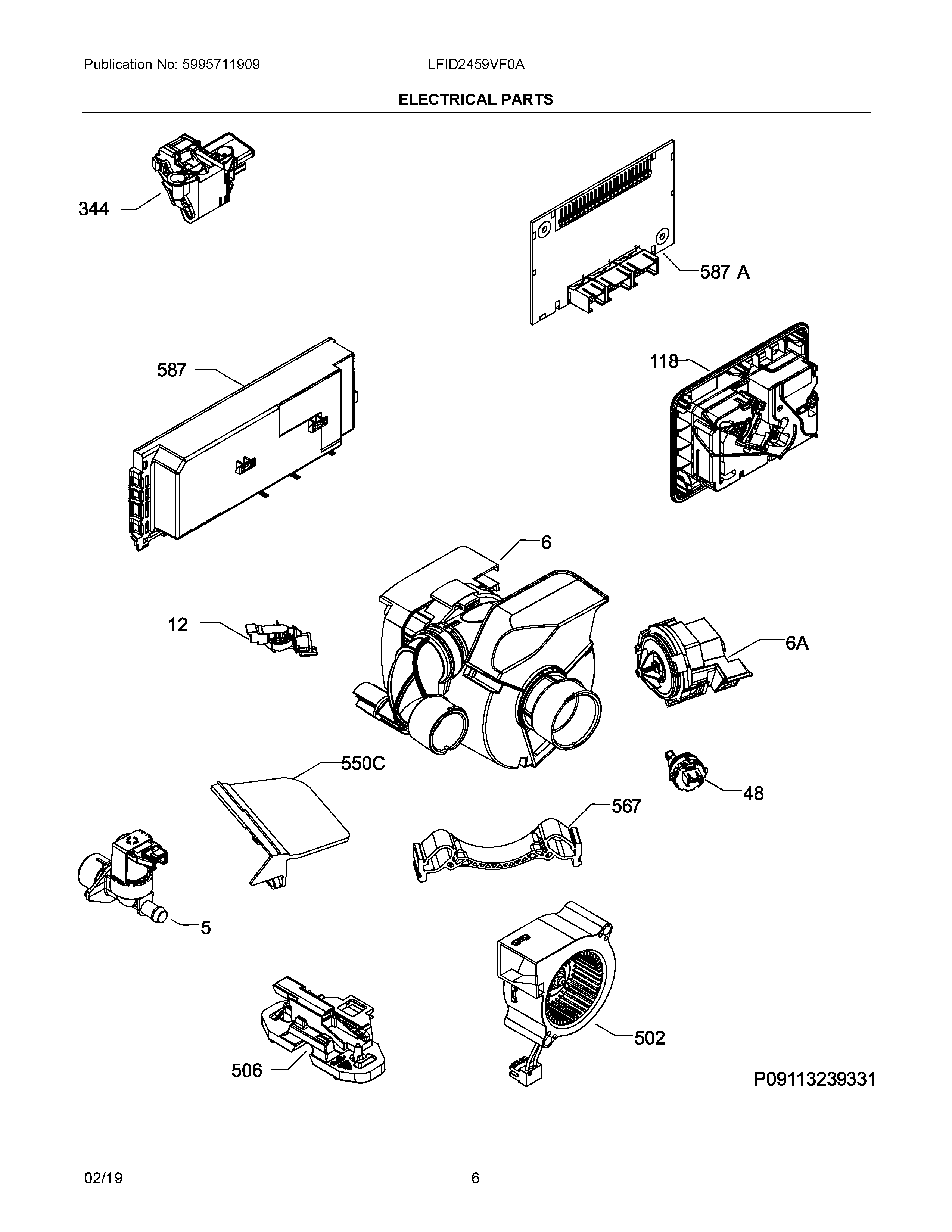

LFID2459VF0A 04 – ELECTRICAL PARTS

LFID2459VF0A 04 – ELECTRICAL PARTS

Written by

in

LFID2459VF0A 04 – ELECTRICAL PARTS

Products

PositionProduct
NIA13841801 Frigidaire Dishwasher Harness
NI807555203 Frigidaire Dishwasher Harness
NI5304524544 Frigidaire Dishwasher Harness Assembly
5807445905 Frigidaire Dishwasher Valve
6A10281701 Frigidaire Dishwasher Pump Assembly
6AA00044305 Frigidaire Dishwasher Drain Pump
12A00055408 Frigidaire Dishwasher Switch
48A00040106 Frigidaire Dishwasher Sensor
118A00130341 Frigidaire Dishwasher Dispenser Assembly
344111315040 Frigidaire Dishwasher Door Lock
502A05660402 Frigidaire Dishwasher Assembly-Blower
506A00056506 Frigidaire Switch Assembly
550C808089001 Frigidaire Dishwasher Cover
567117302400 Frigidaire Dishwasher Support
587AA06115601 Frigidaire Dishwasher Control Board
587117518700 Frigidaire Dishwasher Control Assembly
