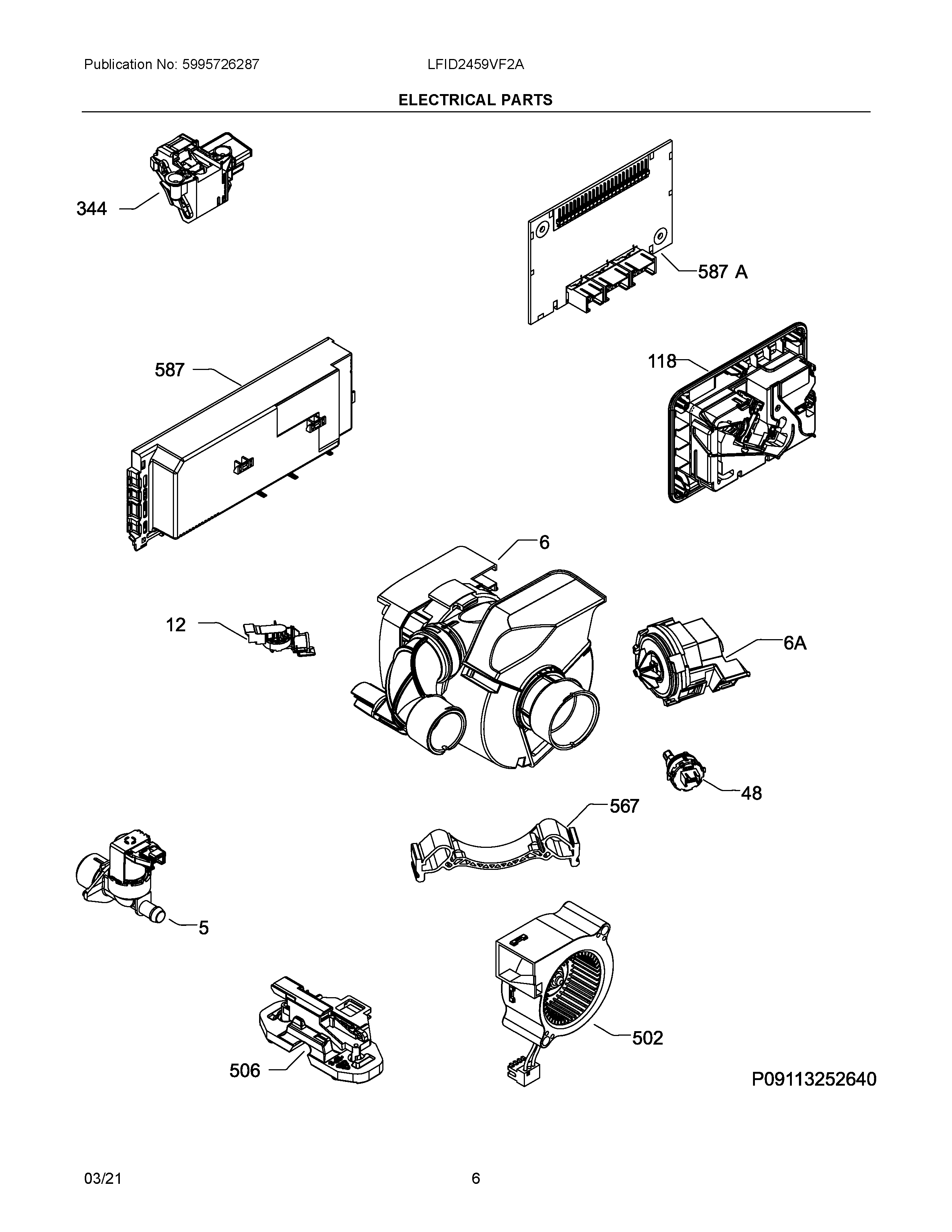

LFID2459VF2A 04 – ELECTRICAL PARTS

Products

Position	Product
NI	A13841801 Frigidaire Dishwasher Harness
NI	807555203 Frigidaire Dishwasher Harness
NI	5304524544 Frigidaire Dishwasher Harness Assembly
5	807445905 Frigidaire Dishwasher Valve
6	A10281701 Frigidaire Dishwasher Pump Assembly
6A	A00044328 Frigidaire Drain Pump
12	A00055408 Frigidaire Dishwasher Switch
48	A00040106 Frigidaire Dishwasher Sensor
118	A00130341 Frigidaire Dishwasher Dispenser Assembly
344	111315040 Frigidaire Dishwasher Door Lock
502	A05660402 Frigidaire Dishwasher Assembly-Blower
506	A00056506 Frigidaire Switch Assembly
567	117302400 Frigidaire Dishwasher Support
587A	A06115601 Frigidaire Dishwasher Control Board
587	117518700 Frigidaire Dishwasher Control Assembly
