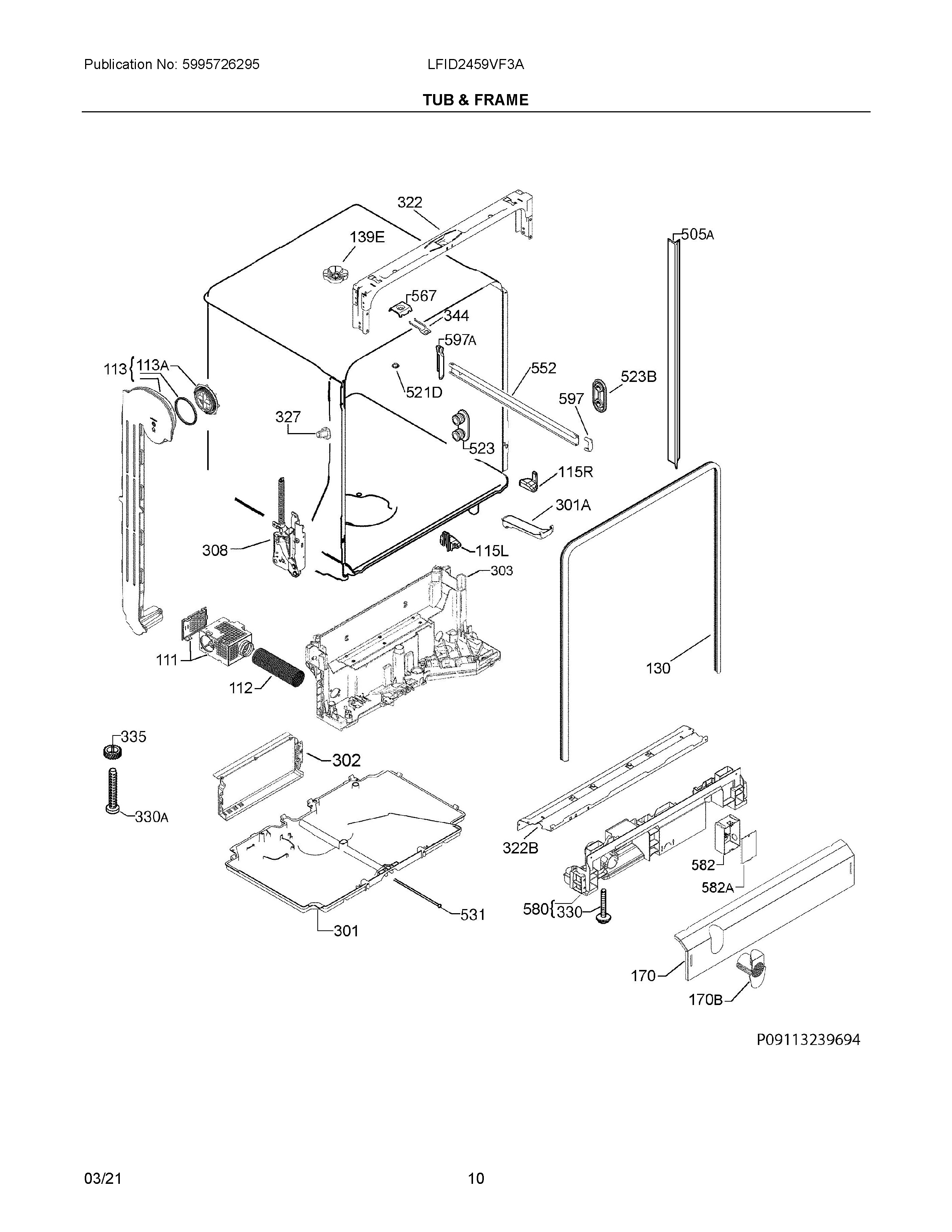

LFID2459VF3A 06 – TUB & FRAME

LFID2459VF3A 06 – TUB & FRAME

Written by

in

LFID2459VF3A 06 – TUB & FRAME

Products

Position	Product
NI	405546374 Frigidaire Screw Kit
NI	405531515 Frigidaire Dishwasher Mounting Kit
NI	405530687 Frigidaire Screw
111	5304509259 Frigidaire Dishwasher Housing Assembly
112	A05660505 Frigidaire Dishwasher Hose
113	405537600 Frigidaire Dishwasher Air Duct
113A	A06525801 Frigidaire Dishwasher Outlet
115L	A11462601 Frigidaire Dishwasher Bridge
115R	A11462602 Frigidaire Dishwasher Bridge
130	117158011 Frigidaire Dishwasher Door Seal Gasket
139E	807240301 Frigidaire Dishwasher Nut
170	405537597 Frigidaire Dishwasher Insulation Kit
170B	A05936001 Frigidaire Dishwasher Outlet
301	807104203 Frigidaire Dishwasher Tray
301A	OVERFLOW HOSE KIT
302	A00075002 Frigidaire Dishwasher Cover
303	A01868606 Frigidaire Dishwasher Base Assembly
308	405539931 Frigidaire Dishwasher Hinge Assembly
322	A00166801 Frigidaire Dishwasher Crossbar
322B	117156109 Frigidaire Cross Piece
327	117427700 Frigidaire Dishwasher Clip
330	152661702 Frigidaire Dishwasher Foot
330A	117363200 Frigidaire Dishwasher Foot
335	152714200 Frigidaire Dishwasher COG
344	152234405 Frigidaire Dishwasher Latch
505A	808470401 Frigidaire Dishwasher Trim
521D	152657610 Frigidaire PLUG
523B	152122010 Frigidaire Dishwasher Holder
523	405526079 Frigidaire Dishwasher Roller Assembly
531	A00021003 Frigidaire Dishwasher Screw
552	A00212701 Frigidaire Dishwasher Rail
567	152323603 Frigidaire Dishwasher Bracket
580	A04472907 Frigidaire Cover
582A	A03337103 Frigidaire Dishwasher Cover Assembly
582	A03987801 Frigidaire Dishwasher Box
597	152047941 Frigidaire Dishwasher STOP
597A	646123406 Frigidaire Dishwasher Stop
