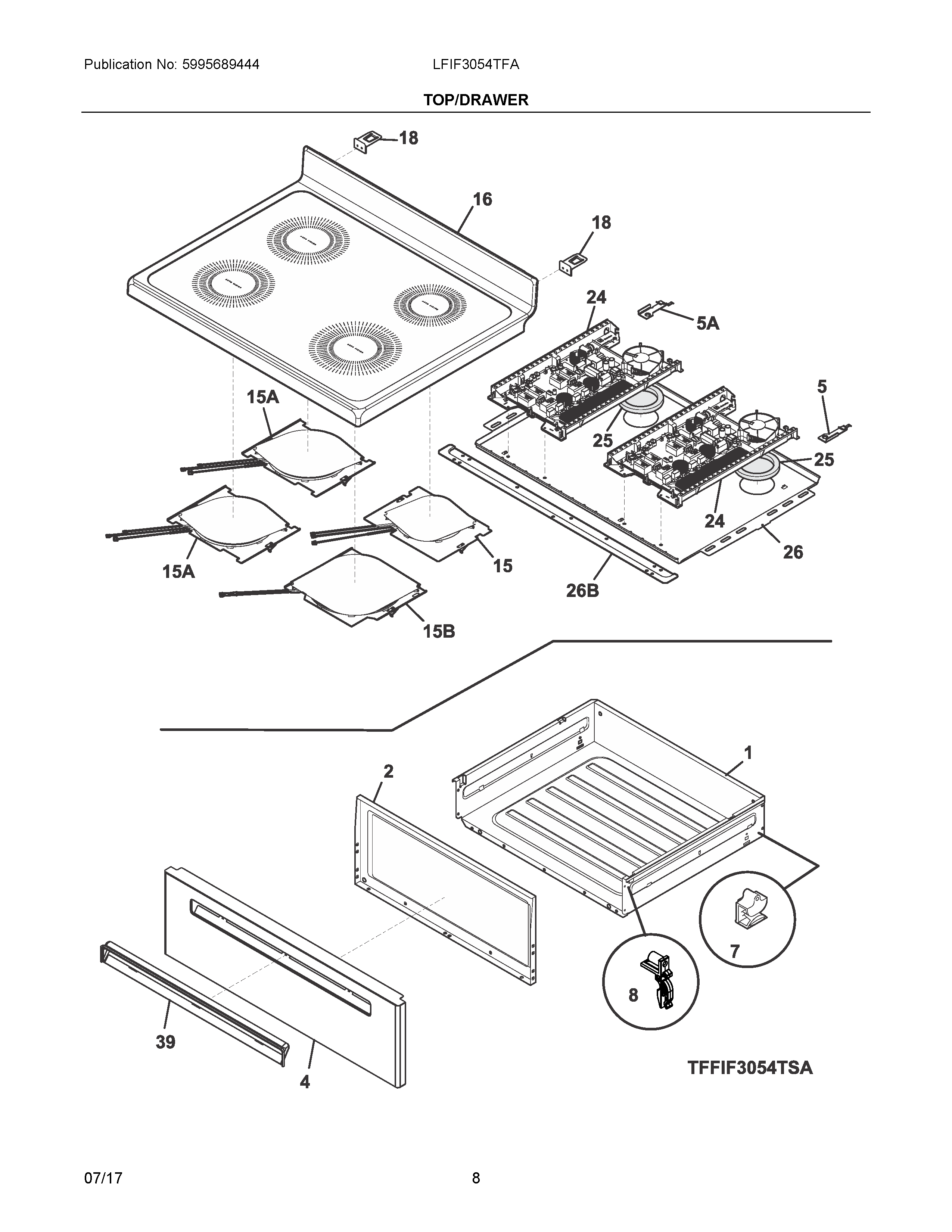

LFIF3054TFA 04 – TOP/DRAWER

LFIF3054TFA 04 – TOP/DRAWER

Written by

in

LFIF3054TFA 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517540 Frigidaire Harness
NI5304517544 Frigidaire Oven Harness
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304513993 Frigidaire Oven Panel
5ABRACKET, COOKTOP, LH REAR
5BRACKET, COOKTOP, RH REAR
7316407402 Frigidaire Range Drawer Glide
85304490938 Frigidaire Glide Assembly
15387404760 Frigidaire Range Element Assembly
15A387404870 Frigidaire Range Element Assembly
15B387761249 Frigidaire Range Element Assembly
165304511086 Frigidaire Smooth Top
18316580800 Frigidaire Hinge Bracket
245304531890 Frigidaire Assembly Generator
25SEALS, RING, FANS, (2)
26PANEL, INDUCTION MTG.
26B316607600 Frigidaire Bracket
395304511565 Frigidaire Oven Handle
