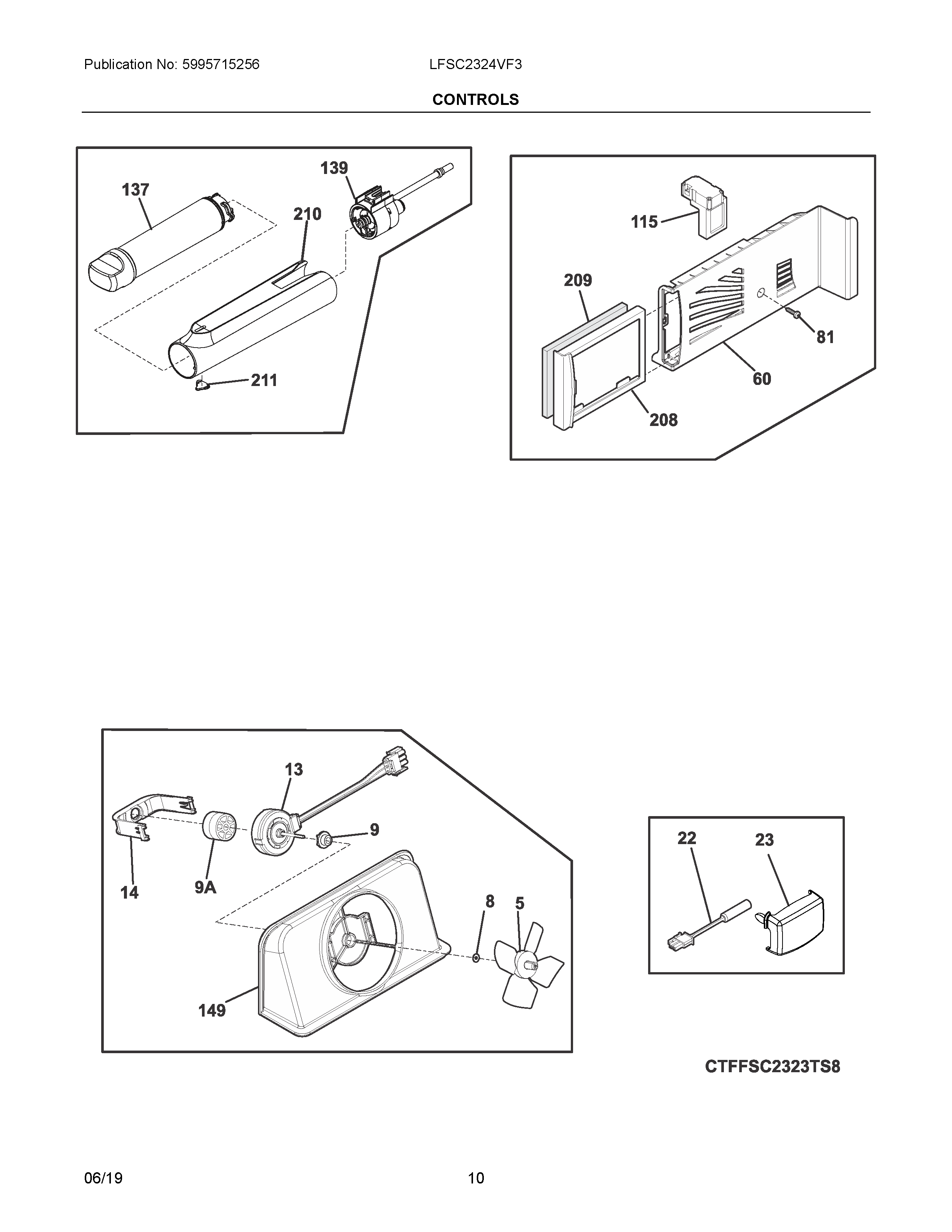

LFSC2324VF3 06 – CONTROLS

Products

Position	Product
NI	241500303 Frigidaire Refrigerator Screw
NIA	INSULATION-AIR DUCT
NIA	242220119 Frigidaire Refrigerator Water Tube
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
9A	241845301 Frigidaire Refrigerator Motor Mounting Bushing
13	MOTOR
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
22	240597220 Frigidaire Sensor
23	241512901 Frigidaire Refrigerator Cover-Sensor
58	241548003 Frigidaire Refrigerator Screw
60	242286101 Frigidaire Refrigerator Diffuser & Housing
115	241853801 Frigidaire Refrigerator Damper Control Assembly
137	EPTWFU01 Frigidaire Refrigerator PureSource Ultra II Water Filter
139	5304522623 Frigidaire Water Filter Manifold Head
149	5304521275 Frigidaire Refrigerator Evaporator Fan Mounting Shroud
208	241754301 Frigidaire Refrigerator Sleeve
209	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
210	807747304 Frigidaire Refrigerator Housing
211	807932201 Frigidaire Refrigerator Plug
