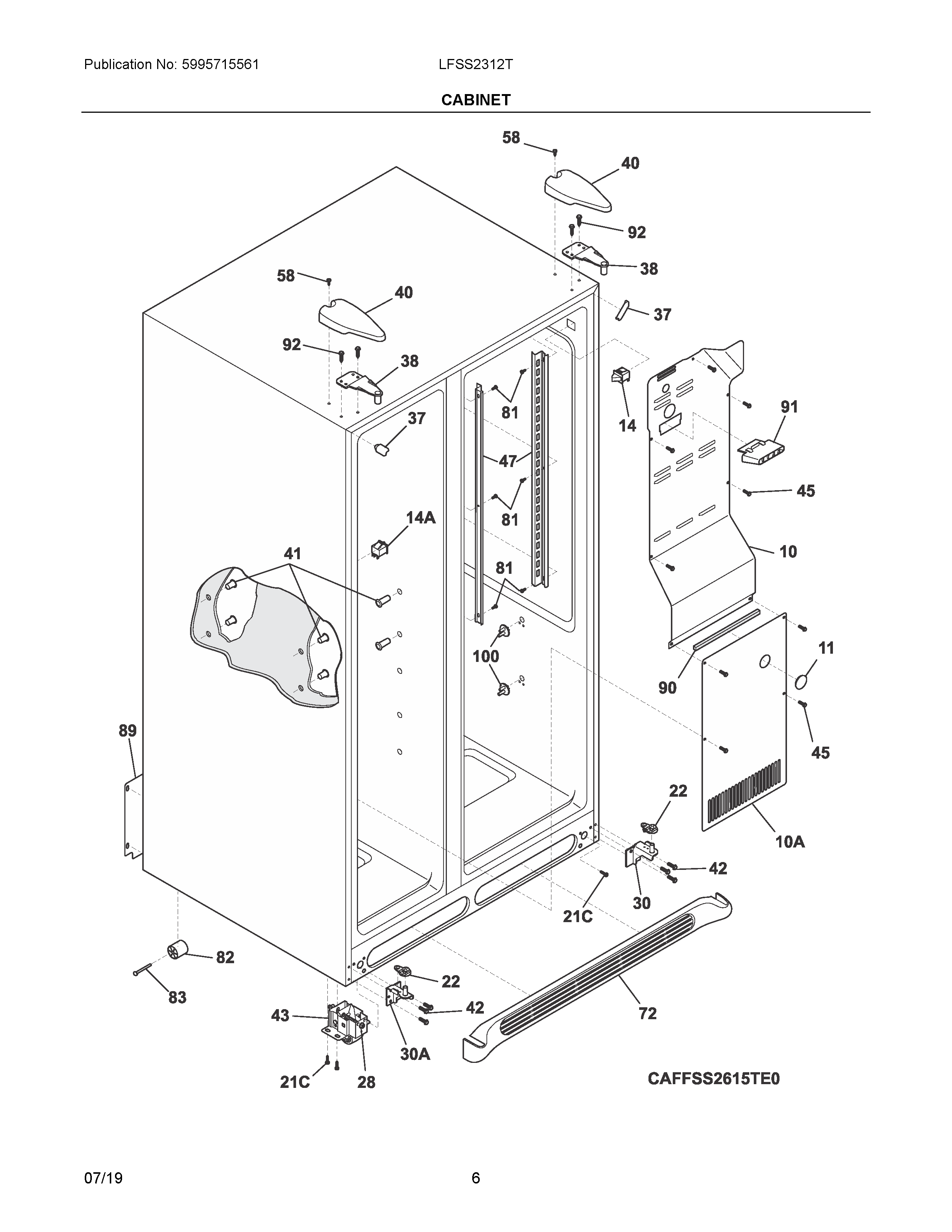

LFSS2312TE2 04 – CABINET

Written by

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI	240396801 Frigidaire Refrigerator Tube Clamp
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
10	240435911 Frigidaire Refrigerator Cover
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
11	5303208309 Frigidaire Refrigerator Plug Hole
14	240505801 Frigidaire Light Switch
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	241856502 Frigidaire Door Closer Plate
30A	242034604 Frigidaire Refrigerator Lower Hinge Bracket
30	242034601 Frigidaire Refrigerator Bracket-Lower Hinge
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38	240327207 Frigidaire Refrigerator Bracket Upper Hinge
40	240327007 Frigidaire Refrigerator P-1 Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513003 Frigidaire Refrigerator Shelf Mounting Channel
58	218781101 Frigidaire Handle Screw
72	241521603 Frigidaire Refrigerator Grill/Kickplate
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304521673 Frigidaire Refrigerator Access Cover
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	CRISPER COVER SUPPORT
