LFSS2312TF2 08 – ICE & WATER DISPENSER

LFSS2312TF2 08 – ICE & WATER DISPENSER

Written by

in

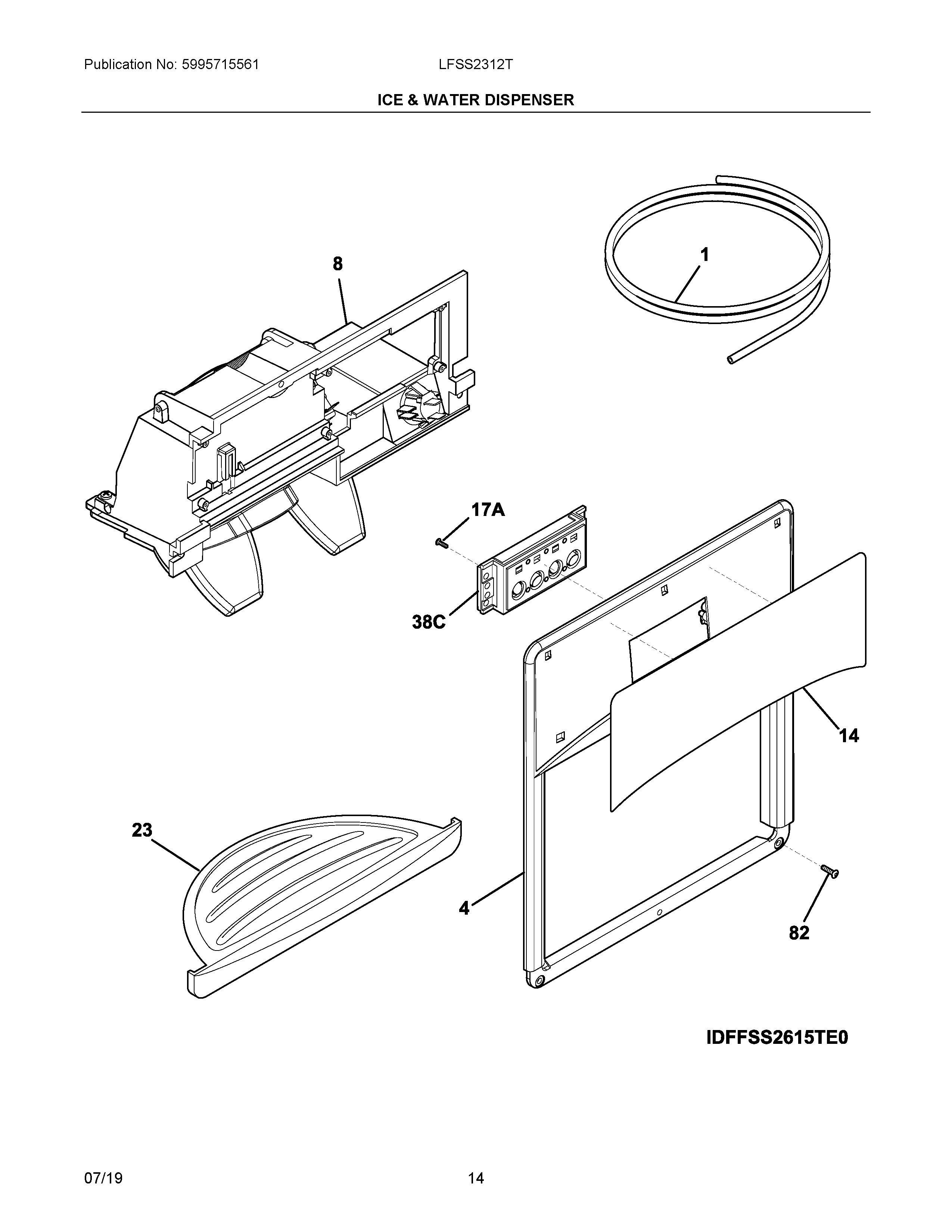

LFSS2312TF2 08 – ICE & WATER DISPENSER

Products

PositionProduct
NID242220206 Frigidaire Refrigerator Water Inlet Tube
NIC240561701 Frigidaire Refrigerator Seal
NIB241850615 Frigidaire Ice Maker Fill Tube Assembly
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NICA5304521693 Frigidaire Refrigerator Harness-Facade W/Li
1218976438 Frigidaire Refrigerator Tube
4241679009 Frigidaire Dispenser Front Panel
8240563639 Frigidaire Refrigerator Dispenser Module
14240570235 Frigidaire Dispenser Overlay
17A241679901 Frigidaire Refrigerator Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
825304453707 Frigidaire Oven Screw
