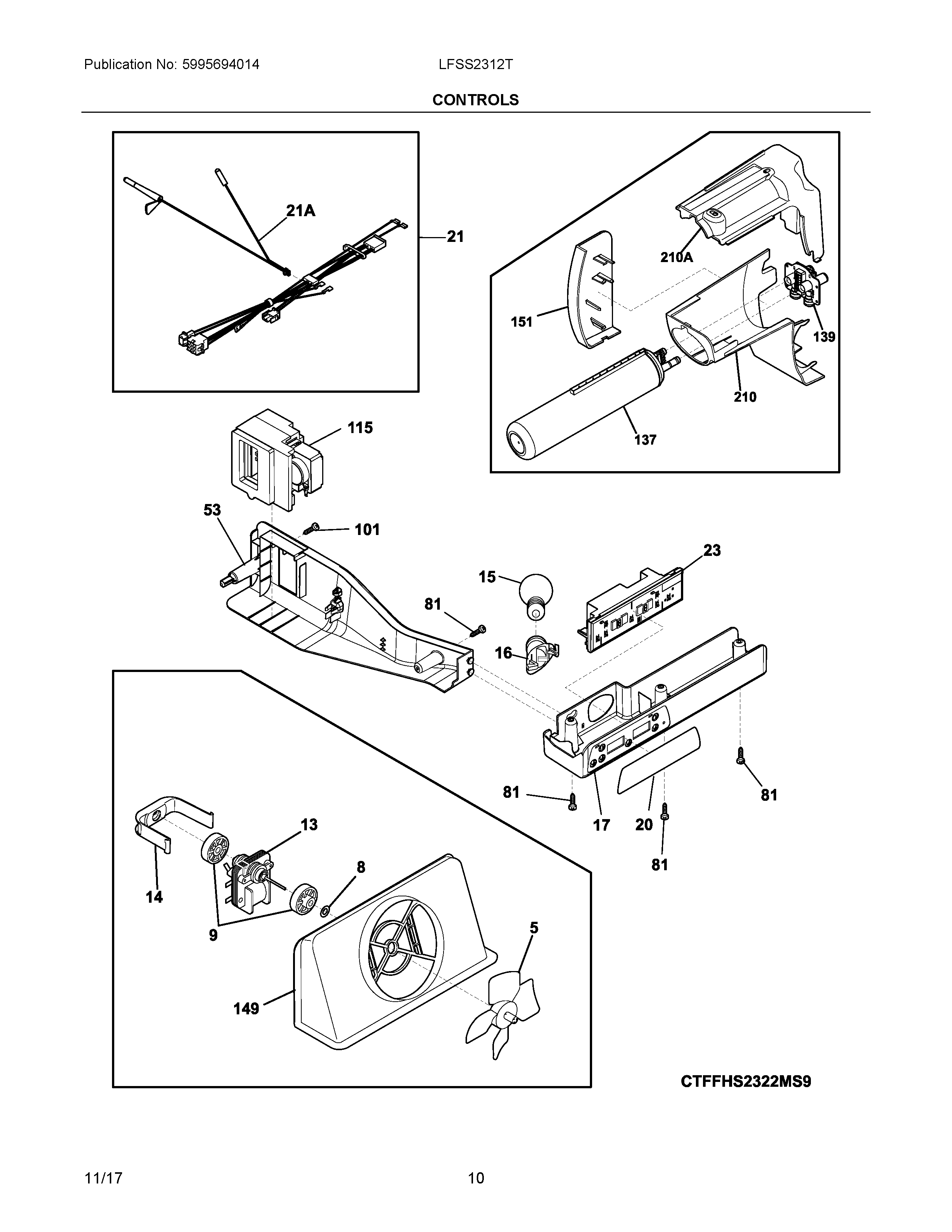

LFSS2312TP0 06 – CONTROLS

Products

Position	Product
NIA	5304521761 Frigidaire Refrigerator Harness
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	242077705 Frigidaire Refrigerator Fan Motor
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	5304511738 Frigidaire Refrigerator Light Bulb
16	218906802 Frigidaire Light Lamp Socket
17	241633512 Frigidaire Refrigerator Control Box
20	241604010 Frigidaire Refrigerator Label-Control Box
21A	242278801 Frigidaire Refrigerator Thermistor Assembly
21	5304521777 Frigidaire Refrigerator Wiring Harness
23	A01078804 Frigidaire Refrigerator Control Board Electronic
53	241608902 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	241637202 Frigidaire Refrigerator Screw
115	242303001 Frigidaire Refrigerator Damper Assembly
137	WF3CB Frigidaire PureSource Water Filter
139	242009602 Frigidaire Refrigerator Water Filter Base
149	242204505 Frigidaire Refrigerator Shroud
151	242069701 Frigidaire Refrigerator Cover-Water Filter
210	241983814 Frigidaire Refrigerator Water Filter Housing
210A	241998303 Frigidaire Refrigerator Water Filter
