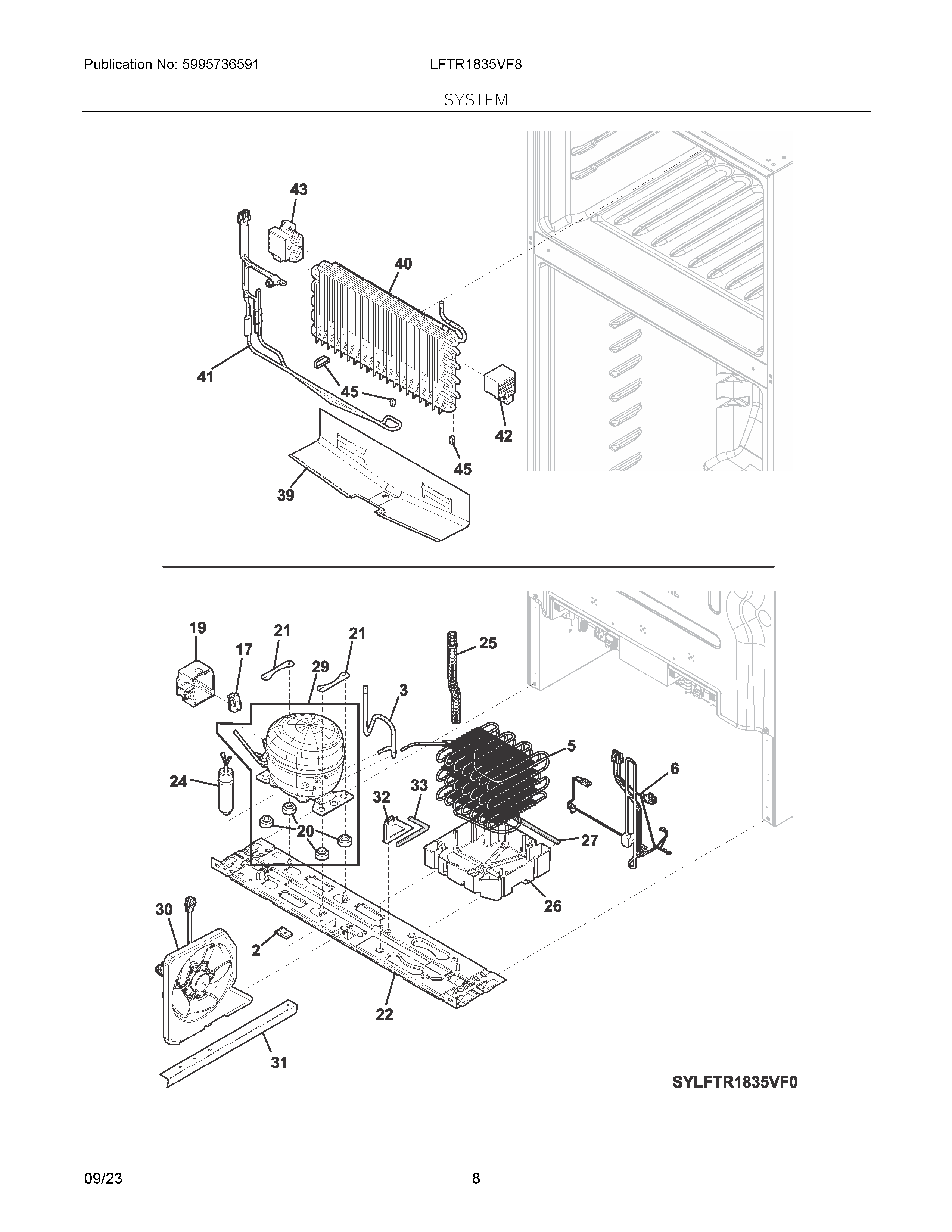

LFTR1835VF8 05 – SYSTEM

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	241947701 Frigidaire Refrigerator Spacer
2	5304456288 Frigidaire Refrigerator Clamp
3	5304519693 Frigidaire Tube
4	A19676501 Frigidaire Refrigerator Drier Filter
5	5304530007 Frigidaire Refrigerator Condenser
6	5304519649 Frigidaire Refrigerator Harness
17	5304522267 Frigidaire Refrigerator Controller
19	5304522303 Frigidaire Refrigerator Cover
21	5304524607 Frigidaire Clamp
22	5304519667 Frigidaire Refrigerator Base Assembly
24	5304530011 Frigidaire Refrigerator Capacitor
25	5304519743 Frigidaire Refrigerator Tube
26	5304519674 Frigidaire Refrigerator Pan
27	5304519750 Frigidaire Seal
29	COMPRESSOR
30	5304519734 Frigidaire Refrigerator Fan Assembly
31	5304519668 Frigidaire Baffle Assembly
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
39	5304519679 Frigidaire Refrigerator Trough
40	5304529495 Frigidaire Refrigerator Evaporator Assembly & C
41	5304522340 Frigidaire Refrigerator Heater
45	241500305 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	5304519765 Frigidaire Refrigerator Screw
