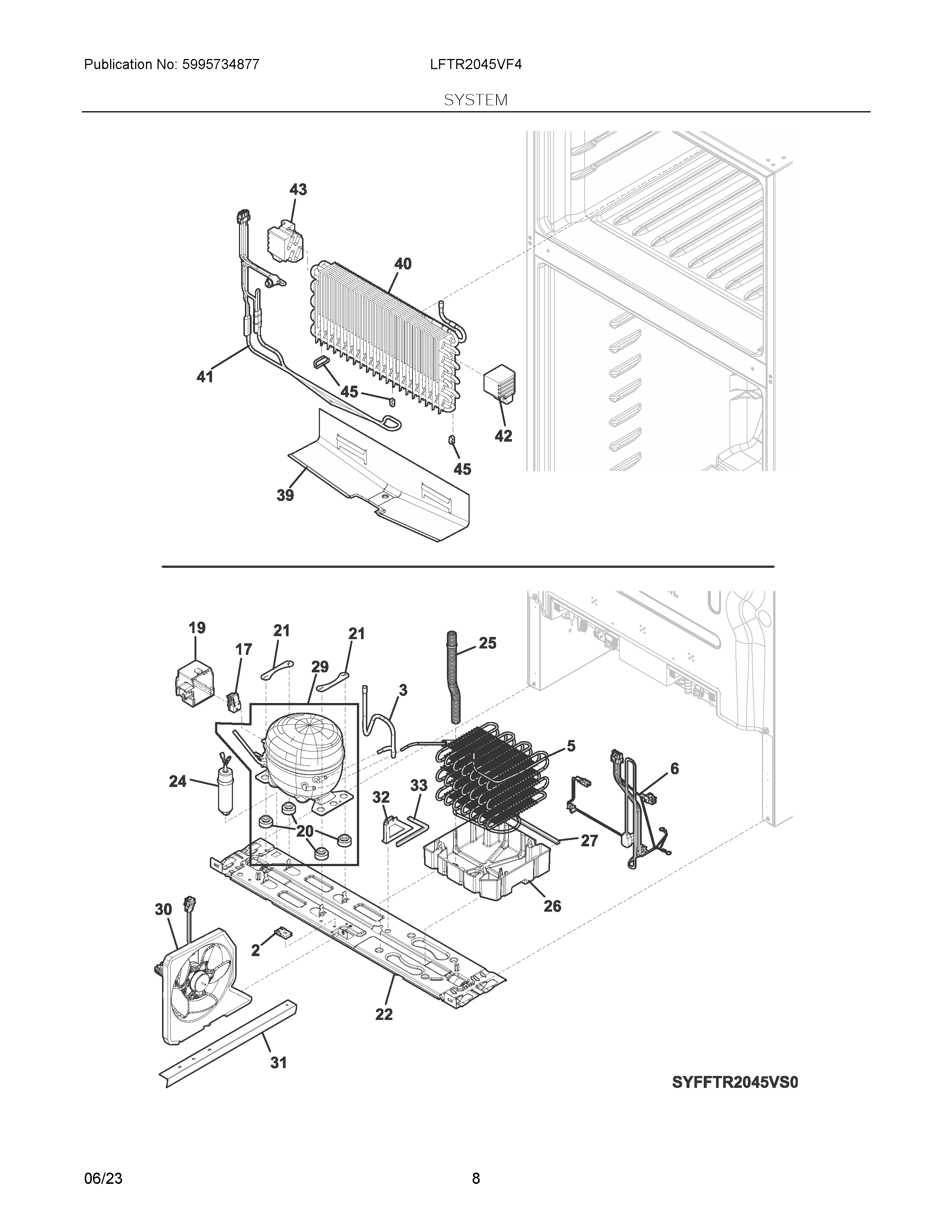

LFTR2045VF4 05 – SYSTEM

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
1	5304522289 Frigidaire Refrigerator Tube
2	5304456288 Frigidaire Refrigerator Clamp
3	TUBE-SUCTION JUMPER
4	A19676501 Frigidaire Refrigerator Drier Filter
5	5304530007 Frigidaire Refrigerator Condenser
6	5304519649 Frigidaire Refrigerator Harness
17	5304529507 Frigidaire Refrigerator Starter
19	5304528888 Frigidaire Refrigerator Cover
20	5304522323 Frigidaire Refrigerator Grommet
21	5304524607 Frigidaire Clamp
22	5304519667 Frigidaire Refrigerator Base Assembly
24	5304528894 Frigidaire Capacitor
25	5304519743 Frigidaire Refrigerator Tube
26	5304519674 Frigidaire Refrigerator Pan
27	5304519750 Frigidaire Seal
29	5304538118 Frigidaire Purifier Component Assembly Esx55Cbc Gen2 Mx
30	5304519734 Frigidaire Refrigerator Fan Assembly
31	BAFFLE, DIVIDER, HIGH SIDE
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
39	5304519679 Frigidaire Refrigerator Trough
40	5304529495 Frigidaire Refrigerator Evaporator Assembly & C
41	5304522340 Frigidaire Refrigerator Heater
42	5304522326 Frigidaire Refrigerator Support
43	5304522327 Frigidaire Refrigerator Support
45	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
58	240569202 Frigidaire Refrigerator Screw
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	5304519765 Frigidaire Refrigerator Screw
