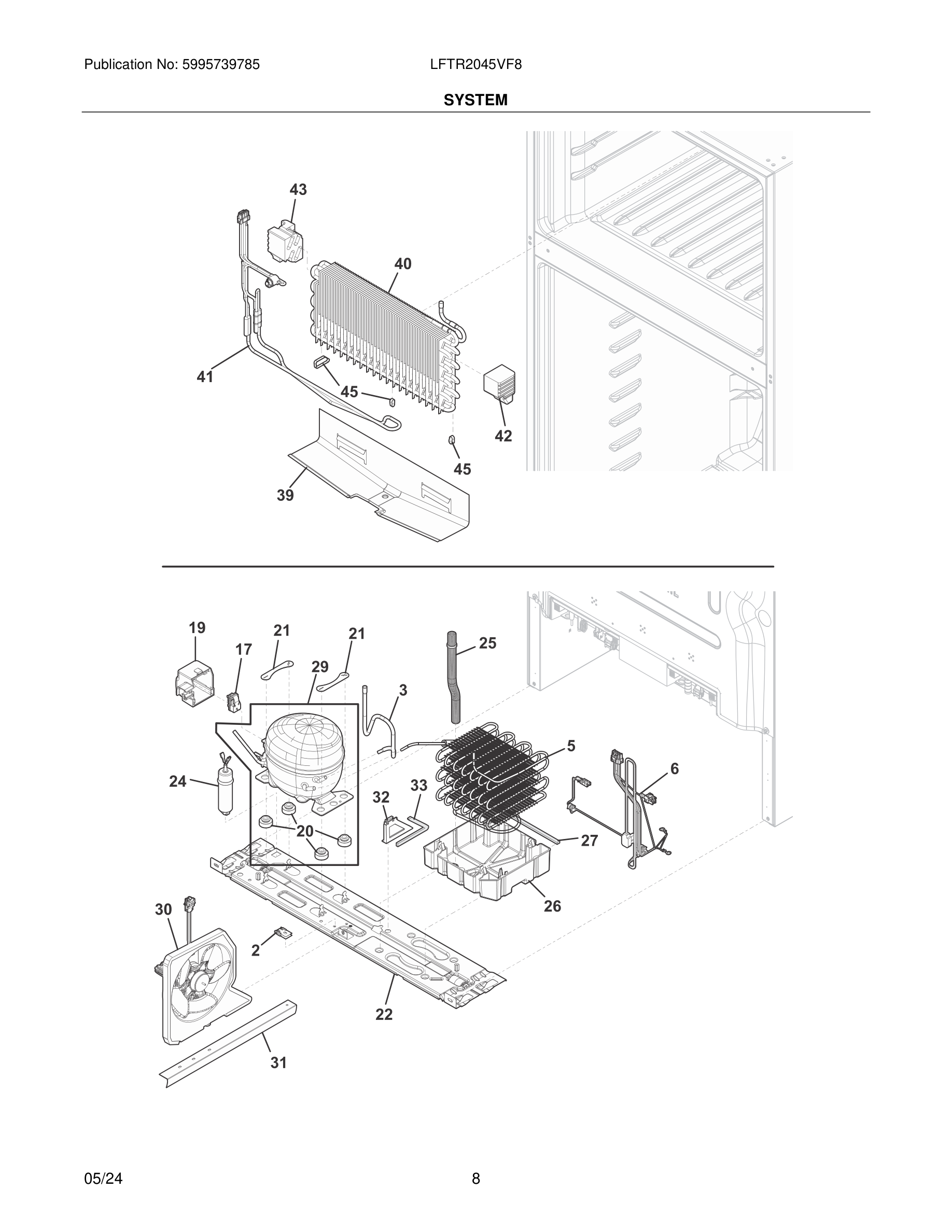

LFTR2045VF8 09 – SYSTEM

LFTR2045VF8 09 – SYSTEM

Written by

in

LFTR2045VF8 09 – SYSTEM

Products

PositionProduct
*240433204 Frigidaire Refrigerator Screw
1#TUBE, PROCESS, 1 #
25304456288 Frigidaire Refrigerator Clamp
3#TUBE-SUCTION JUMPER
4#A19676501 Frigidaire Refrigerator Drier Filter
5#5304530007 Frigidaire Refrigerator Condenser
6#5304519649 Frigidaire Refrigerator Harness
17#5304536666 Frigidaire Starter
195304528888 Frigidaire Refrigerator Cover
205304522323 Frigidaire Refrigerator Grommet
215304524607 Frigidaire Clamp
225304519667 Frigidaire Refrigerator Base Assembly
24#297286812 Frigidaire Capacitor-Run Ngm 1
255304519743 Frigidaire Refrigerator Tube
265304519674 Frigidaire Refrigerator Pan
275304519750 Frigidaire Seal
29#5304538118 Frigidaire Purifier Component Assembly Esx55Cbc Gen2 Mx
30#5304519734 Frigidaire Refrigerator Fan Assembly
31BAFFLE, DIVIDER, HIGH SIDE
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
395304519679 Frigidaire Refrigerator Trough
40#5304529495 Frigidaire Refrigerator Evaporator Assembly & C
41#5304522340 Frigidaire Refrigerator Heater
425304522326 Frigidaire Refrigerator Support
435304522327 Frigidaire Refrigerator Support
455308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
58240569202 Frigidaire Refrigerator Screw
61241639502 Frigidaire Refrigerator Condenser Fan Blade
815304519765 Frigidaire Refrigerator Screw
