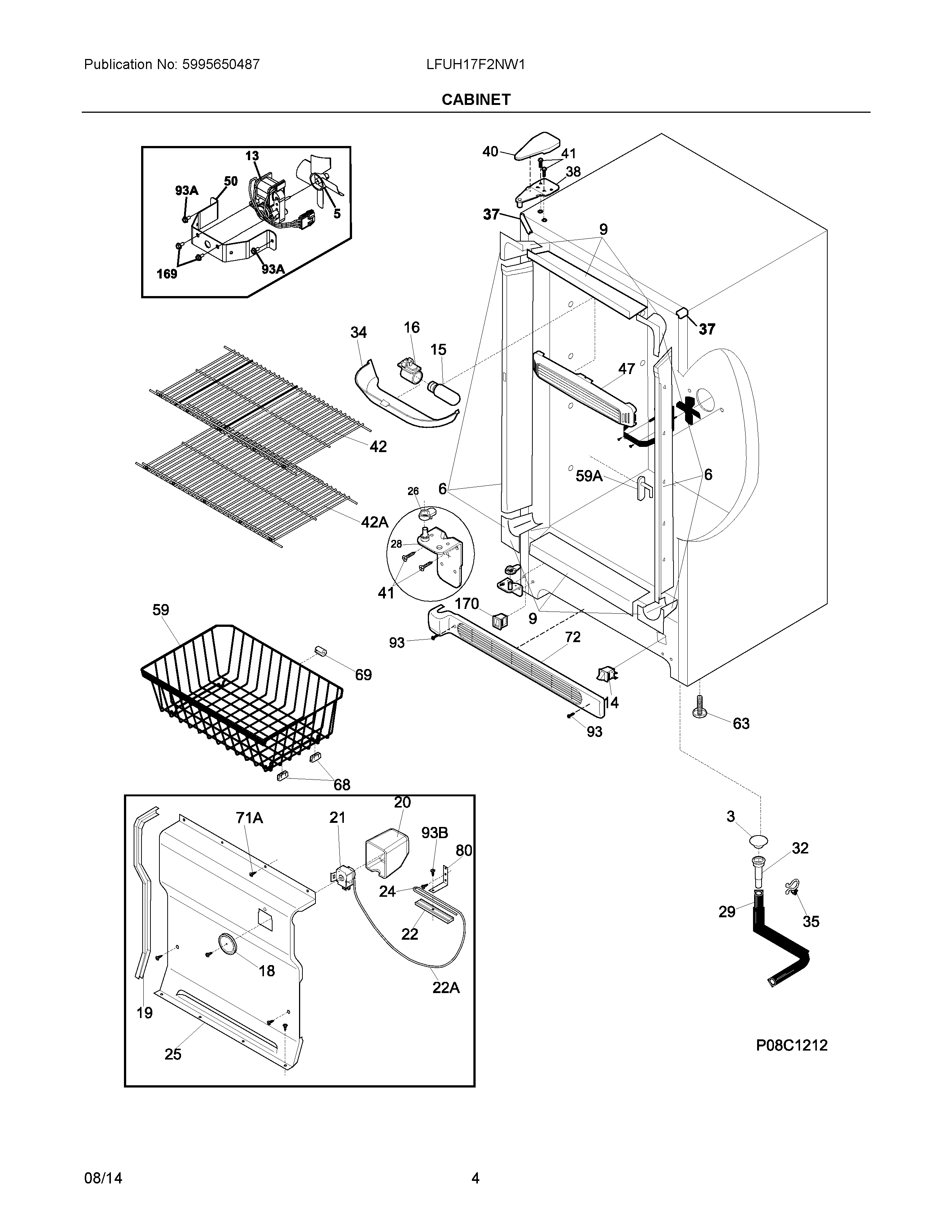

LFUH17F2NW1 03 – CABINET

LFUH17F2NW1 03 – CABINET

Written by

in

LFUH17F2NW1 03 – CABINET

Products

PositionProduct
NI216502400 Frigidaire Refrigerator Grommet Unit
NI297001704 Frigidaire Refrigerator Insulation
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NIWCI 216910424
NIWCI 5303313703
NIAWCI 297283901
NIAWCI 297248200
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 297200600
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139500 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26WCI 216503300
28297283900 Frigidaire Refrigerator Hinge-Bottom
29WCI 216313503
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
35216273000 Frigidaire Refrigerator Strap
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40297164400 Frigidaire Refrigerator Hinge Cover
41240578902 Frigidaire Screw Mounting Hinge
42AWCI 297119501
42WCI 297367400
47297192903 Frigidaire Refrigerator Baffle
50216394050 Frigidaire Refrigerator Bracket
59ASTOP-BASKET, (2)
59WCI 5304497659
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
6808009560 Frigidaire 0 Basket Glide
695305878546 Frigidaire Refrigerator Bumper-Basket
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
169216912401 Frigidaire Refrigerator Screw
170297280400 Frigidaire Refrigerator Valve
