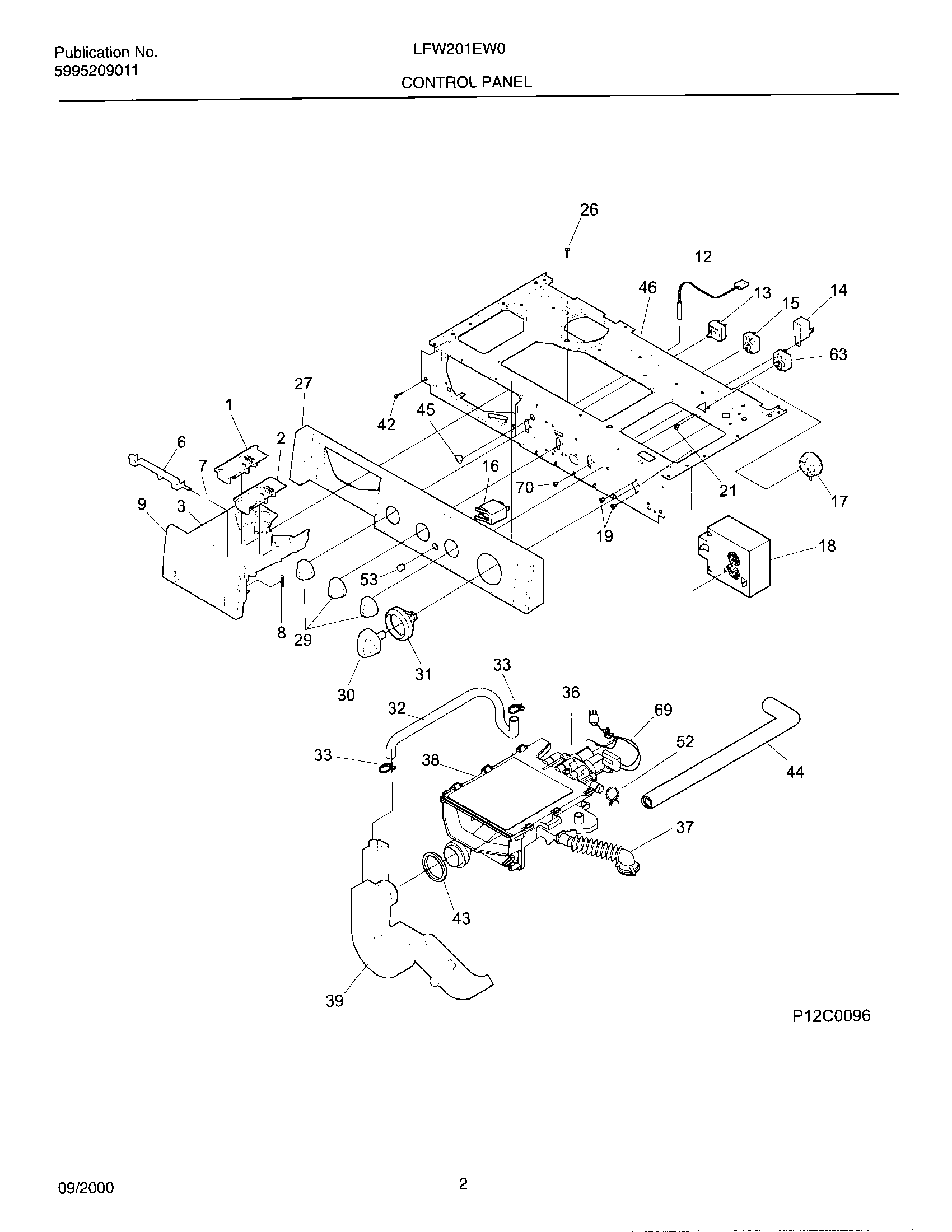

LFW201EW0 03 – CONTROL PANEL

Products

Position	Product
	Clamp,siphon/bellows
	WCI 131899200
	WCI 131931200
1	WCI 131272100
2	WCI 131272000
3	WCI 131271900
6	Latch,disp drawer hdl
7	WCI 131427500
8	WCI 131373800
9	WCI 131691241
12	WCI 131505900
13	WCI 131729000
14	WCI 131724500
15	Switch,2 position
16	Lamp,status light
17	WCI 131273700
18	137394200 Frigidaire Washer Timer Control
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	WCI 131887281
29	131761704 Frigidaire Knob Rotary
30	134191800 Frigidaire Knob
31	WCI 131853900
32	WCI 131786100
33	WCI 131306215
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
39	WCI 131863300
42	WCI 13168200
43	WCI 131749200
44	WCI 131786000
45	Bushing,idler
46	WCI 131810012
52	WCI 131306242
53	Lens,status light ,clear
69	Wiring Harness,dispenser valve
70	5303015671 Frigidaire Bracket Termination Screw
