LFXS24566S 1

LFXS24566S 1

Written by

in

LFXS24566S 1

Products

PositionProduct
S081SZZJQ2002A LG Customized Screw
B06MJB63190001 LG Refrigerator Handle Stopper Screw
S141SZZJQ2014B LG Customized Screw
102A4930JA3093A LG Bracket Holder
132PMBL65277501 LG Refrigerator Rubber Cap

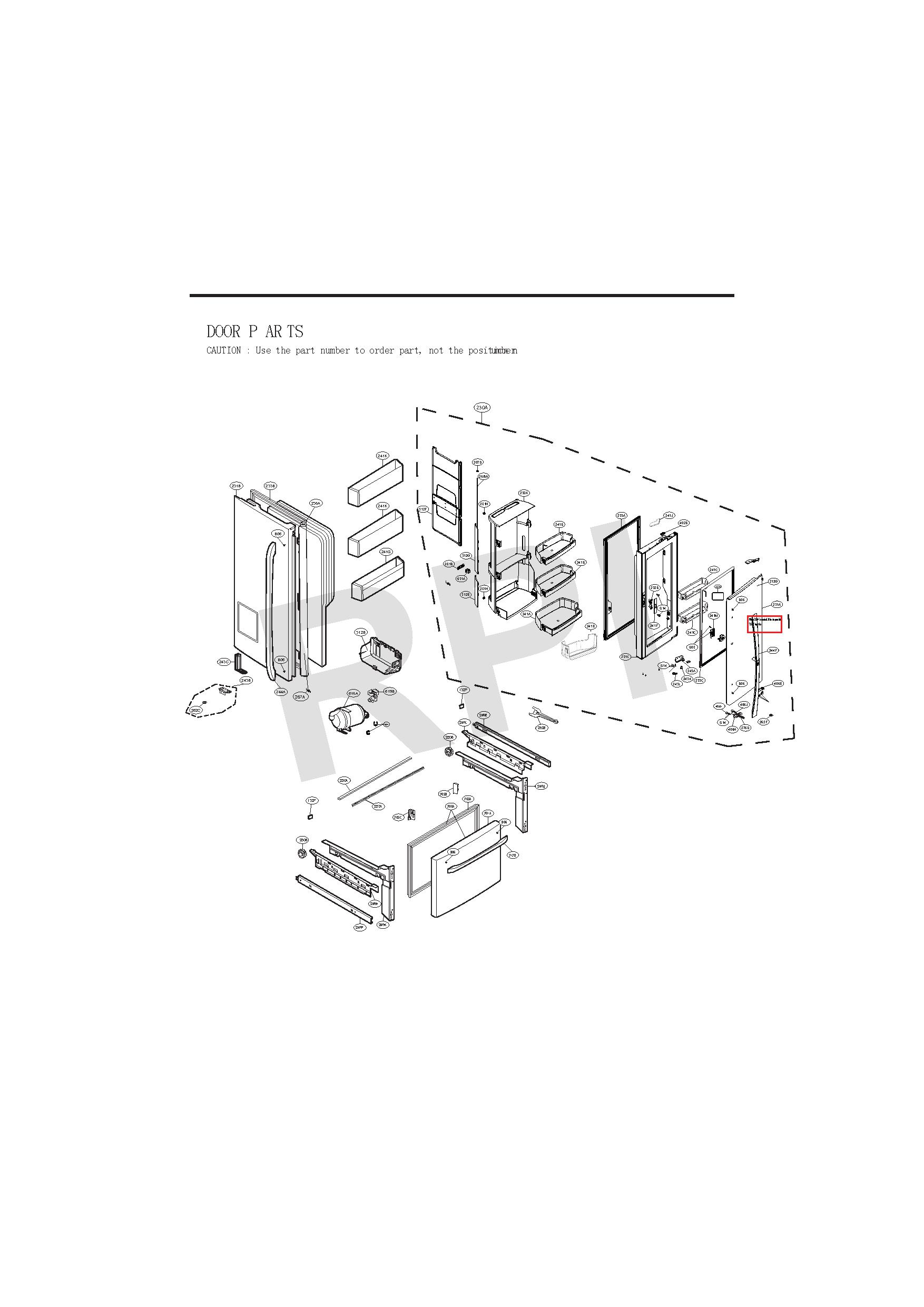

200ADoor Assembly,Freezer
201AADD74575801 LG Freezer Door Foam Assembly
203AMDS64172922 LG Door Gasket
205C5006JJ2013A LG Refrigerator Right Cap Cover
205B5006JJ2013B LG Refrigerator Left Cap Cover
207DMBL65077501 LG Hinge Cap
212DAED73593102 LG Freezer Handle Assembly
212GMFT62346511 LG Refrigerator Nameplate
230ADoor Assembly,Refrigerator(Right)
231ADoor Foam Assembly,Home Bar
231CADD74296905 LG Refrigerator Door Foam Assembly
231BADD73996035 LG Refrigerator Door Foam Assembly
231BDoor Foam Assembly,Refrigerator
232DMBL65698202 LG Cover Cap
232AMBN63442501 LG Home Bar Refrigerator Case
232BAEJ73440302 LG Refrigerator Bracket Holder Assembly
233CMDS64610508 LG Refrigerator Home Bar Gasket
233BADX73550628 LG Refrigerator Door Gasket Assembly
233AADX73550627 LG Refrigerator Door Gasket Assembly
235APLATE ASSY-FRONT
241KMAN62388601 LG Refrigerator Door Basket Assembly
241FMCK67046601 LG Lever Cover
241EMAN63049001 LG Refrigerator Door Basket
241MMCK69570701 LG Cover Front
241CMAN63048901 LG Refrigerator Door Bin Guard Assembly
241JMBL66017901 LG Cap Cover
241BMAN63048701 LG Refrigerator Door Basket
241AMAN63048801 LG Refrigerator Door Basket
241GMAN62388501 LG Refrigerator Door Basket Assembly
243KMBF62704701 LG Refrigerator Bushing
243LMJB62830601 LG Refrigerator Door Stop Closer
243BAJC73112301 LG Door Stopper Assembly
243CAEH36821908 LG Refrigerator Center Door Hinge Assembly
243AAEH74576201 LG Lower Hinge Assembly
244AAED73593202 LG Refrigerator Door Handle Assembly
244FAED73593212 LG Refrigerator Door Handle Assembly
249KMCD62287402 LG Rail Connector
249JMCD62287401 LG Connector Rail
249HACQ86548501 LG Connector Cover Assembly
249GACQ86548502 LG Connector Cover Assembly
249FLGE 5218JA1010M
249ELGE 5218JA1010L
250AMAK62627102 LG Bar
250BMDT62627101 LG Ice Gear
250WMAK63227001 LG Bar
253ALGE MJH62755902
262EMHU62101101 LG Refrigerator Spanner
262CMGZ62766901 LG Ring
262FMGZ63367101 LG Ring
267ASPRING
276DMHY63783701 LG Spring
281H5040JA3033B LG Refrigerator Rubber Cap
281BMJS62812601 LG Refrigerator Drain Tray
312BMCK71555401 LG Refrigerator Front Cover
312EMCK67979701 LG Refrigerator Cover Home Bar
312FACQ87548803 LG Front Cover Assembly
312GMCK67979601 LG Refrigerator Home Bar Cover
402AEBF62234501 LG Refrigerator Magnet Switch
402BEBF62234513 LG Refrigerator Switch Magnet
406HMEG62999601 LG Refrigerator Button Holder
406IMBL65278201 LG Refrigerator Handle Cap
406JMJB63649801 LG Refrigerator Door Stopper
615AMJM61844102 LG Refrigerator Water Tank
619B5221JB2010G LG Water Valve Assembly
631AAEJ72914501 LG Refrigerator Holder Bracket Assembly
