LFXS24566S 9

Products

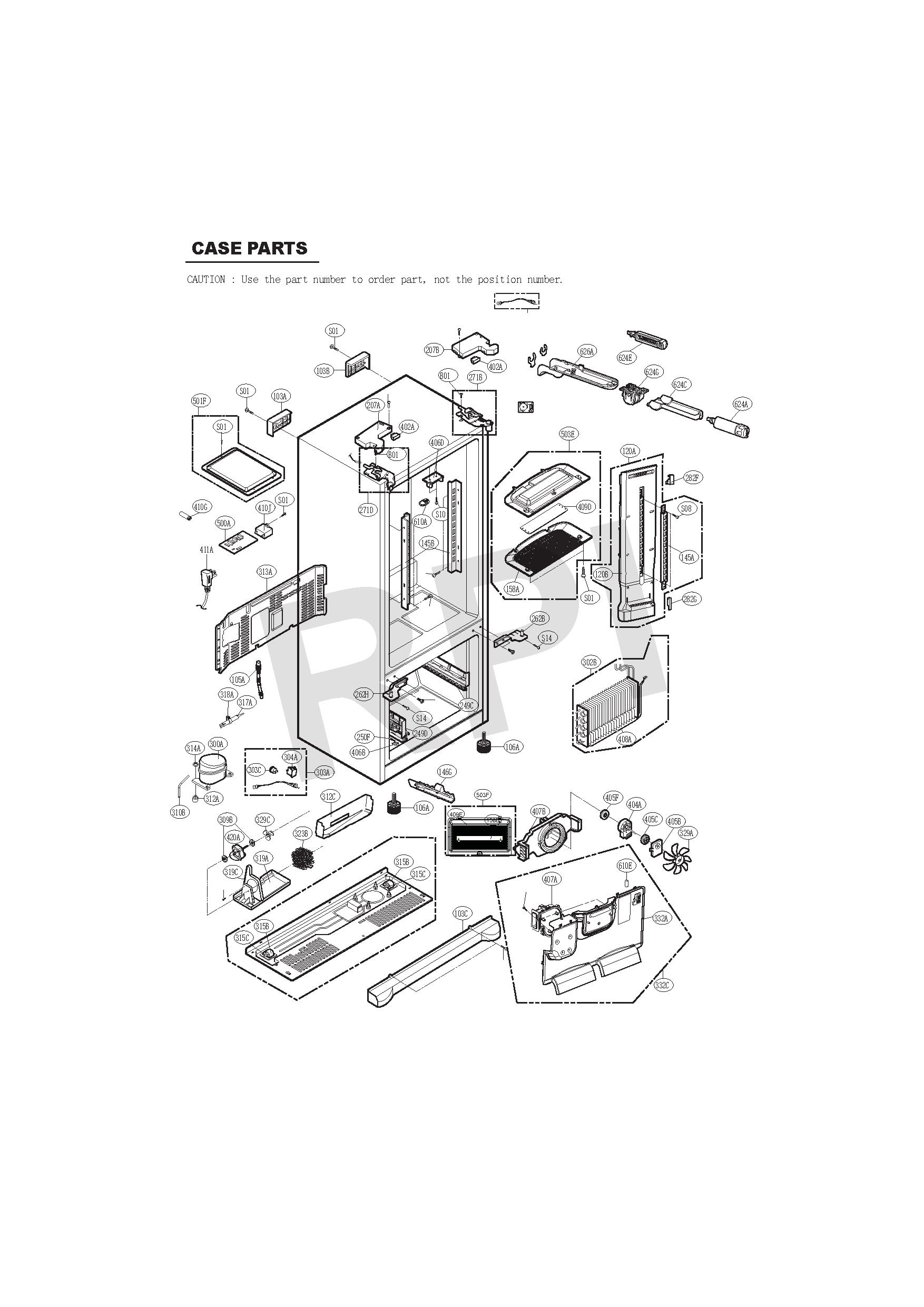

PositionProduct
S081SZZJQ2002A LG Customized Screw
S101SZZJQ3023B LG Customized Screw
B011SZZJQ3009A LG Refrigerator Customized Screw
S141SZZJQ2014B LG Customized Screw
S011SZZJQ2015B LG Refrigerator Customized Screw
103CACQ85891302 LG Lower Cover Assembly
103CACQ85891306 LG Lower Cover Assembly
103B3650JA2061W LG Rear Handle
103A3650JA2061X LG Rear Handle
105AAJR74125001 LG Drain Tube Assembly
106AAFC73349801 LG Adjustable Leg Assembly
120AADJ73852105 LG Multi Duct Assembly
120BMCZ62951805 LG Multi Duct Assembly
145BMEG63060501 LG Refrigerator Shelf Holder
145AMEG63100001 LG Refrigerator Shelf Holder
146GMCZ62872001 LG Refrigerator Duct Connector
158AMCK38019301 LG Lamp Cover
207BMCK68412508 LG Refrigerator Hinge Cover
207AMCK68187602 LG Refrigerator Hinge Cover
249CMEG62302102 LG Rail Holder
249DMEG62302101 LG Holder Rail
250FEAD62089801 LG Refrigerator Harness Assembly
262HAEH73816904 LG Hinge Assembly Center
262BAEH73816902 LG Center Hinge Assembly
271DAEH74216501 LG Upper Hinge Assembly
271BAEH60614106 LG Upper Hinge Assembly
282FMBL38019501 LG Refrigerator Duct Cap
282G5006JA3111A LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
302BADL73762005 LG Evaporator Assembly
303AEBG60663213 LG Refrigerator PTC Thermistor Assembly
303C6750CL0001C LG Overload Protector
304A3550JA2110D LG Refrigerator PTC Cover
304AMCK70052501 LG PTC Cover
309BMCQ65884301 LG Damper Motor Support
310B5200JQ3002L LG Refrigerator Joint Pipe
312CAJP73574402 LG Drain Tray Assembly
312AMCQ67247501 LG Compressor Damper
313AACQ85930901 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315BMHA62513601 LG Refrigerator Roller
315CPin,Customized
317AADH73150210 DRIER ASSY
318A4930JQ3020D LG Dryer Holder
319CMEA63170401 LG Fan Guide
319AMJS62591901 LG Refrigerator Drip Tray
323BACG73784701 LG Condenser Wire Assembly
329AADP73694301 LG Fan Assembly
329CADP36665705 LG Fan Assembly
332CAEB73944703 LG Refrigerator Fan Assembly Grille
332AAEB73944601 LG Refrigerator Evaporator Cover
402AEBF62234501 LG Refrigerator Magnet Switch
402AEBF62234504 LG Magnet Switch
402BEBF62234513 LG Refrigerator Switch Magnet
404AMOTOR-DC
404AEAU65058315 LG DC Motor Assembly
405B4810JA2129B LG Motor Bracket
405C5040JQ2002B LG Damper Motor Support Assembly
405F5040JQ2003B LG Damper Support Motor
406DMEG61899901 LG Refrigerator Door Holder Closure
406B6600JR1002L LG Push Button Switch
407B4810JJ0003B LG Motor Bracket
407AADJ73832203 LG Duct Connector Assembly
407AAEB73944701 LG Fan Assembly Grille
408A5300JK1005Z LG Heater Sheath
409EMCK68069401 LG Lamp Cover
409DMBN38018601 LG Refrigerator Lamp Case
410GEAE32501010 LG Electric Capacitor
410J0CZZJB2014L LG Refrigerator Electric Capacitor
411AEAD62108309 LG Power Cord Assembly
420AEAU65058312 LG Electronics DC Motor Assembly
420A4681JB1029D LG Refrigerator Condenser Fan Motor
500AEBR83845031 LG Refrigerator PCB Assembly Main
500AEBR74796445 LG Refrigerator PCB Main Assembly
501FACQ86388101 LG PCB Cover Assembly
503EACQ85930606 LG Refrigerator Lamp Cover Assembly
503FACQ87128801 LG Refrigerator Lamp Cover Assembly
610E6500JB2002X LG Refrigerator Temperature Sensor
610A3550JA2247A LG Refrigerator Sensor Cover
624EABN73019101 LG Refrigerator Water Filter Bypass Cap Assembly
624GLGE ADQ73673604
624CMCK67447801 LG Refrigerator Filter Cover
624AFILTER ASSY-HEAD
626AMCK42264401 LG Filter Cover
