LFXS30766D 4

LFXS30766D 4

Written by

in

LFXS30766D 4

Products

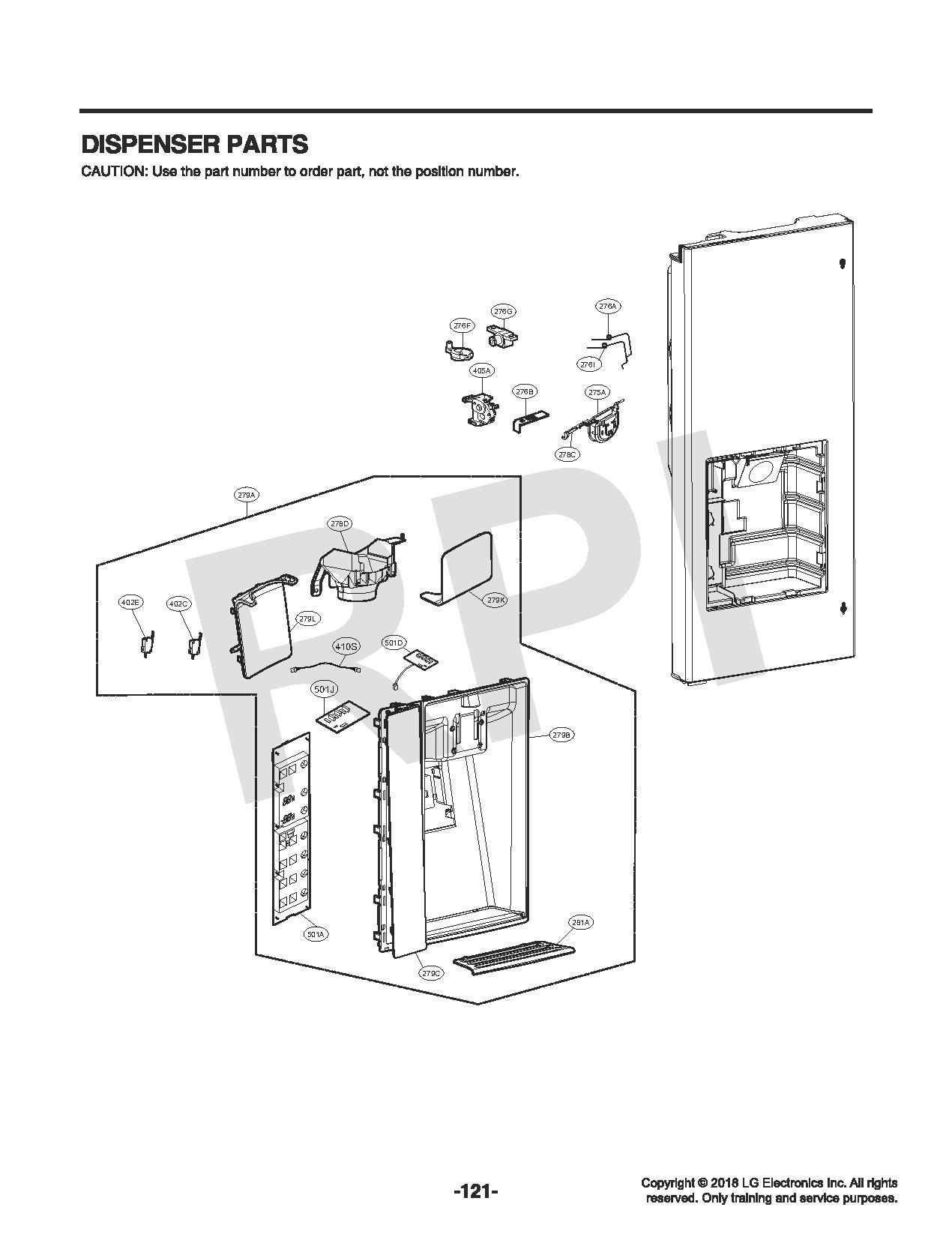

PositionProduct
275AABN72938905 LG Refrigerator Ice Dispenser Chute Door
276BMEG63262301 LG Lever Holder
276IMHY62603706 LG Refrigerator Lever Spring
276GMEG61958701 LG Holder Bracket
276FMFF61863101 LG Link
276AMHY62603705 LG Refrigerator Lever Spring
278DMDR62062701 LG Funnel
278CMFC62250201 LG Refrigerator Dispenser Lever
279CMCK66585133 LG Display Cover
279KABH74219603 LG Refrigerator Button Assembly
279LABH74219702 LG Refrigerator Ice Dispenser Handle Lever
279AACQ85430263 LG Cover Assembly Display
279AACQ90319106 LG Refrigerator Display Cover Assembly
279AACQ90319111 LG Refrigerator Display Cover Assembly
279BMCK66542810 LG Dispenser Cover
279CMCK66585141 LG Display Cover
279KABH74219604 LG Button Assembly
279LABH74219704 LG Button Assembly
279BMCK66542801 LG Dispenser Cover
279ALGE ACQ85430255
281AMCR64355309 LG Decor Drain
281AMCR64355301 LG Decor Drain
402E6600JB3001F LG Refrigerator Dispenser Micro Switch
402CSWITCH-MICRO
405AMOTOR-DC
410SEAD54367503 LG Harness Assembly
501JEBR82056913 LG Dishwasher Circuit Board Assembly
501AEBR79159761 LG Refrigerator Display Printed Circuit Board Assembly
501AEBR79159764 LG Refrigerator Display PCB Assembly
501DEBR60388513 LG Power Control Board Assembly
501AEBR79159727 LG Refrigerator Circuit Board Display Assembly
603B4930JA3091A LG Refrigerator Water Line Connector Clip
603C4004JA3002A LG Refrigerator Ice Maker Water Supply Tubing Clip
616JMCD63827601 LG Connector Tube
616GAJR56656503 LG Refrigerator Ice Water Line Tube Assembly
619AAJU72992603 LG Refrigerator Water Inlet Fill Valve
623B5006JJ2009A LG Cap Cover
625A3550JA2184B LG Refrigerator Tube Cover
627AMEG42758602 LG Pipe Holder
